Remove/Install Cover For Air/Water Duct - AR83.10-P-1411MFB

Model 243, 247

Shown on model 247.0

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove wiper arms.		AR82.30-P-6100MFA
2	Remove left and right covers (2).	Model 243.7, 247.0/7
3	Remove outer nuts from air/water duct cover (1)	Model 243.6, 247.6
4	Release and disconnect electrical connectors (3) and detach electrical wiring harnesses from air/water duct cover (1)	The number of electrical connectors (3) varies depending on the vehicle equipment

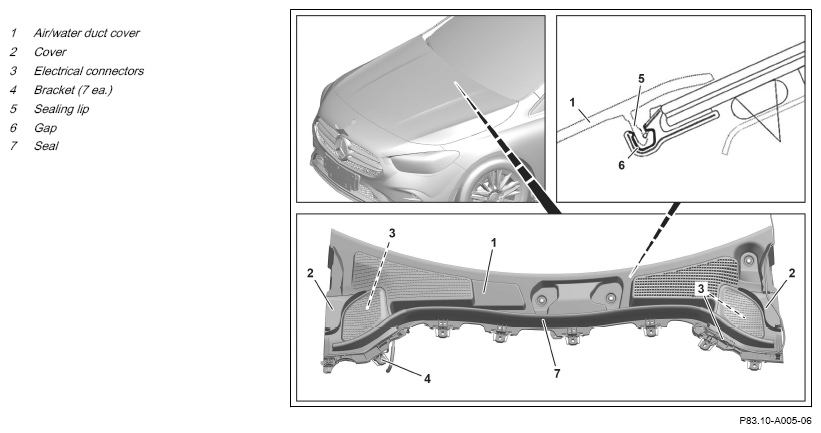

5	Release brackets (4) and remove air/water duct cover (1).	: Make sure that the sealing lip (5) is completely inserted into the gap (6). Make sure that the holders (4) are correctly locked.
6	Transfer seal (7).	When replacing the air/water duct cover (1).
7	Install in the reverse order.
