Stationary Heater Switchover Valve, Component Description - GF83.70-P-4068L
Model 118
as of model year 2023
Model 177, 247
as of model year 2022

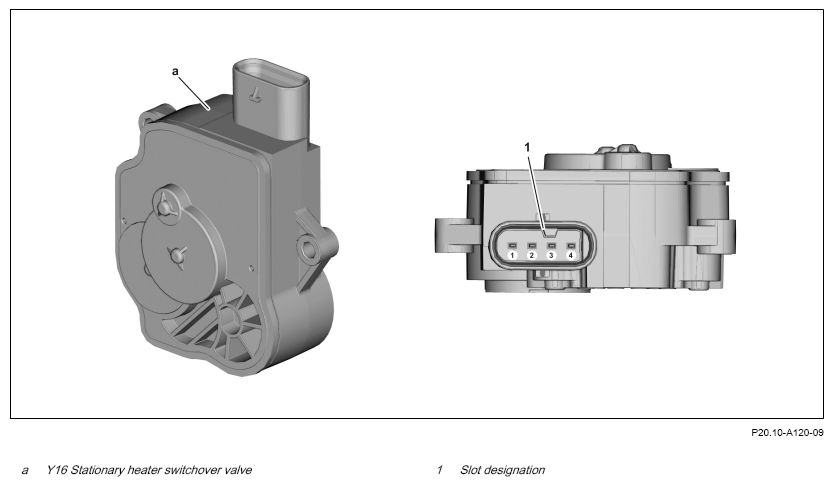

Illustration valid for model 177
The numbers on the pins indicate the pin numbering of the slots.
Illustration valid for model 247
The numbers on the pins indicate the pin numbering of the slots.
Illustration valid for model 118
The numbers on the pins indicate the pin numbering of the slots.

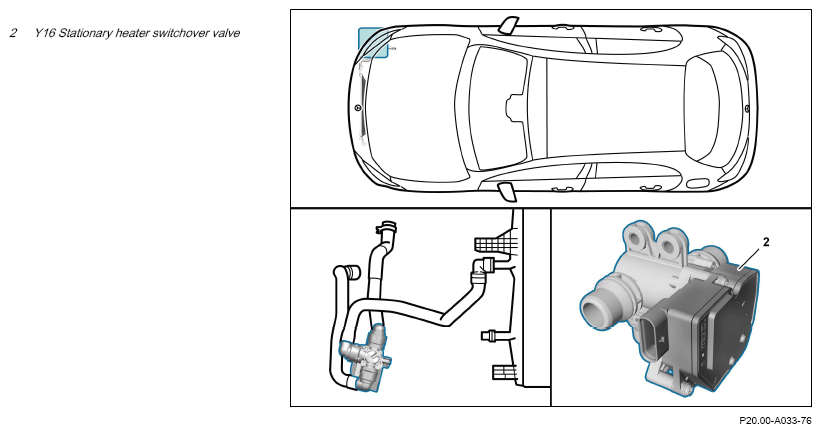

Location on model 177

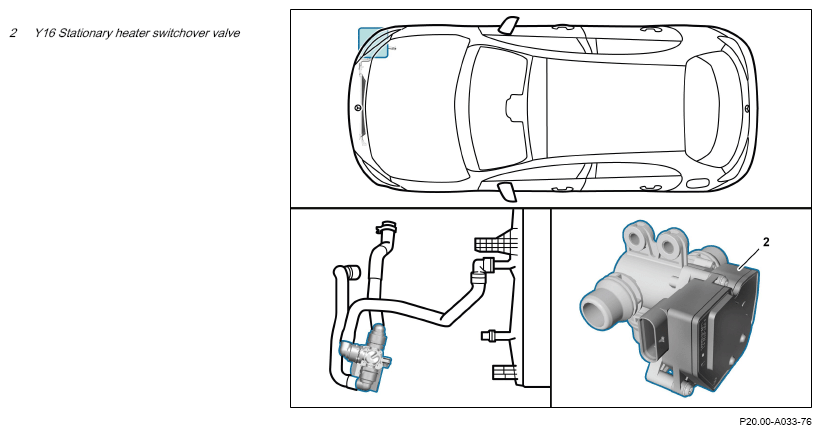

Location on model 247
Location on model 118
