Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006MFA
Model 118, 177, 247
up to model year 2021
with code 235 (Active Parking Assist)

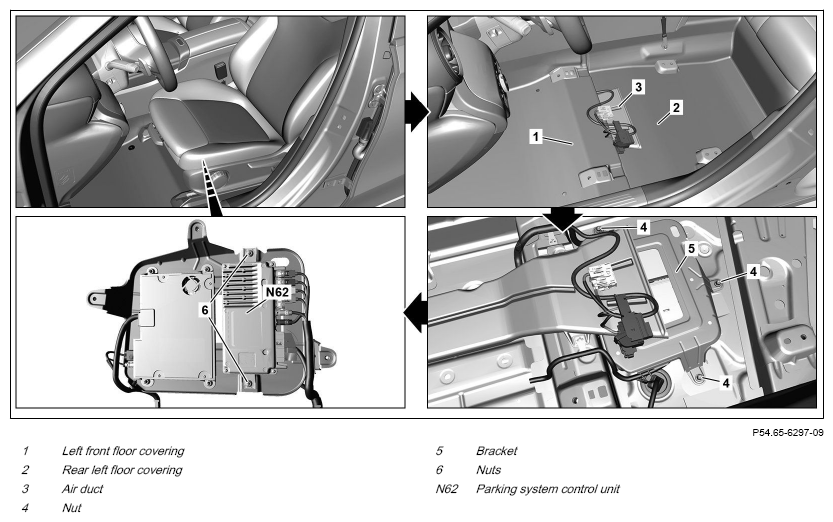

Fig 1: Parktronic System (PTS) Control Unit Components Location - Model 247 Up To Model Year 2021 With Code 235
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Release left front seat, tilt backward and place onto rear bench seat. | AR91.10-P-1000MFA | |
| 2 | Remove lower B-pillar trim. | AR68.30-P-4705MFA | |
| 3 | Fold front left floor covering (1) forward. | ||
| 4 | Lift up air duct (3) and fold rear left floor covering (2) towards rear. | ||
| 5 | Remove nuts (4). | ||
| 6 | Carefully remove holder (5) and turn over with connected electric lines. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 7 | Release and disconnect electrical connectors from parking system control unit (N62). | ||
| 8 | Unscrew nuts (6) and remove parking system control unit (N62). | ||
| 9 | Install in the reverse order. | ||
| Concluding tasks | |||
| 10 | Commission parking system control unit (N62). | If the parking system control unit (N62) was replaced. | |
| AD00.00-P-2000-06MFA | |||
| 11 | Calibrate reversing camera (B84/3). | Model 118, 177, 247 up to model year 2021 with code 218 (Rear view camera) with code 235 (Active Parking Assist) If the parking system control unit (N62) was replaced. |
|
| AD00.00-P-2000-06MFA | |||
| Fig 2 | |||
| 12 | Calibrate all 360° cameras. | Model 118, 177, 247 up to model year 2021 with code 235 (Active Parking Assist) with code 501 (360° camera) If the parking system control unit (N62) was replaced. |
|
| AD00.00-P-2000-06MFA |
