Remove/Install Backup Camera - AR54.65-P-0030MFA
Model 177.0, 247
with code 218 (Rear view camera)
Model 177.0, 247
with code 501 (360° camera)
Shown on model 177.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||

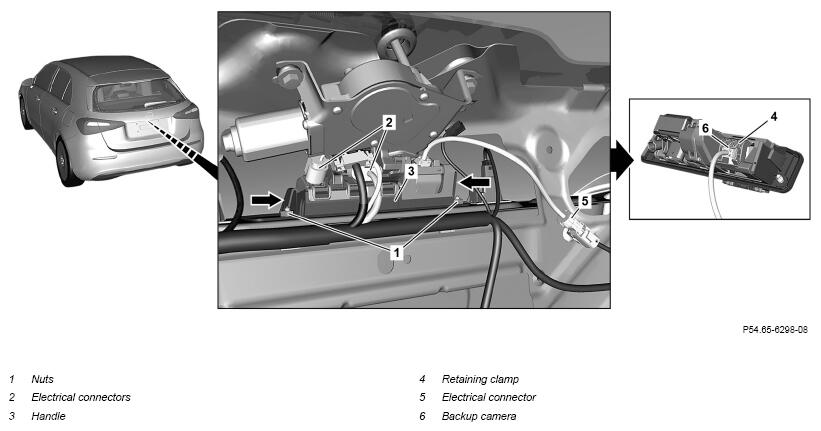

| 1 | Remove center liftgate trim. | AR72.20-P-6618MFA | |
| 2 | Release and disconnect electrical connector (5). | ||
| 3 | Remove nuts (1). | Model 177.0 with code 218 (Rear view camera) Model 177.0 with code 501 (360° camera) |
|
| 4 | Unclip handle (3) from liftgate (arrows) and guide out until the electrical connectors (2) are accessible. | Model 177.0 with code 218 (Rear view camera) Model 177.0 with code 501 (360° camera) Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 5 | Release and disconnect the electrical connections (2). | Model 177.0 with code 218 (Rear view camera) Model 177.0 with code 501 (360° camera) |
|
| 6 | Release retaining clamp (4) and fold up. | ||
| 7 | Remove reversing camera (6). | ||
| 8 | Install in the reverse order. | ||
| Calibrate | |||
| 9.1 | Perform commissioning of reversing camera (6) using diagnostic system. | Model 177.0, 247 up to model year 2021 with code 218 (Rear view camera) except code 235 (Active Parking Assist) When replacing reversing camera (6). |
|
| AD00.00-P-2000-06MFA | |||
| 9.2 | Calibrate reversing camera (6) using diagnostic system. | Model 177.0, 247 up to model year 2021 with code 218 (Rear view camera) except code 235 (Active Parking Assist) |
|
| AD00.00-P-2000-06MFA | |||
| Fig 2 | |||
| 9.3 | Calibrate reversing camera (6). | Model 177.0, 247 as of model year 2022 with code 218 (Rear view camera) Model 177.0, 247 up to model year 2021 with code 218 (Rear view camera) with code 235 (Active Parking Assist) Model 247 with code 501 (360° camera) |
|
| AD00.00-P-2000-06MFA |
