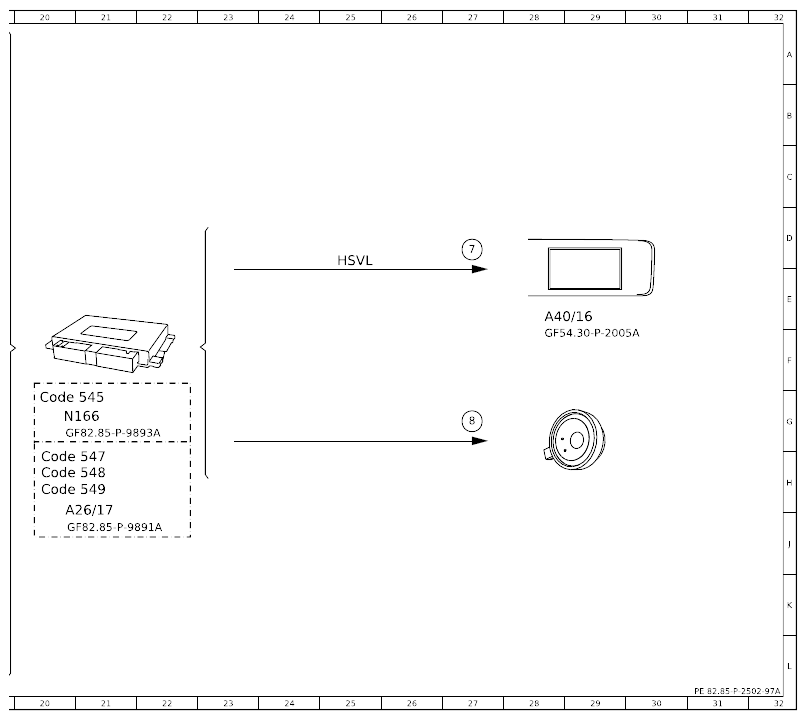

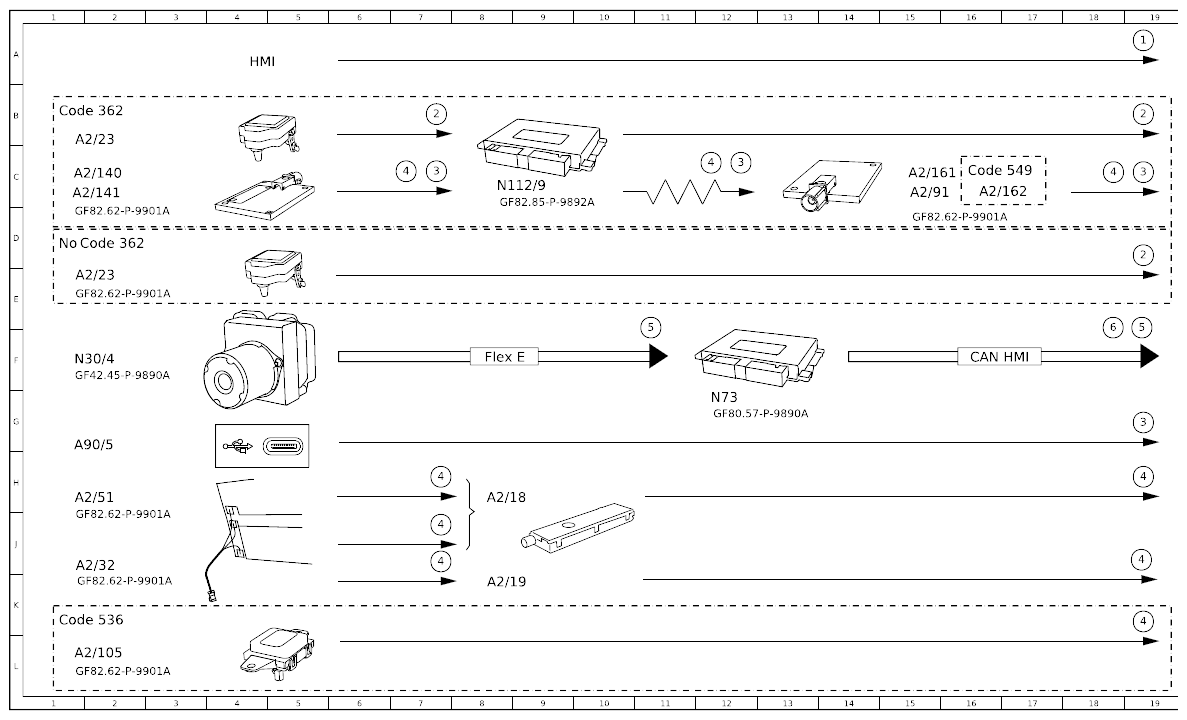

Function Schematic For Navigation Mode - PE82.85-P-2502-97A
Model 118.6, 177.0, 243, 247 with code 365 (Hard drive navigation)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 20A |
| 2 | GPS, signal | 7B |
| 2 | GPS, signal | 20B |
| 2 | GPS, signal | 20D |
| 3 | Map data, signal | 7C |
| 3 | Map data, signal | 12C |
| 3 | Map data, signal | 20C |
| 3 | Map data, signal | 20H |
| 4 | Traffic data, signal | 7C |
| 4 | Traffic data, signal | 7H |
| 4 | Traffic data, signal | 7J |
| 4 | Traffic data, signal | 7K |
| 4 | Traffic data, signal | 11C |
| 4 | Traffic data, signal | 20J |
| 4 | Traffic data, signal | 20J |
| 4 | Traffic data, signal | 20K |
| 5 | Wheel speed, signal | 14F |
| 5 | Wheel speed, signal | 20E |
| 6 | Reverse gear, status | 20G |
| 7 | Video, signal | 28D |
| 8 | Audio, signal | 28G |
| A2/105 | SDARS antenna | 2L |
| A2/140 | Emergency call system antenna 1 | 2C |
| A2/141 | Emergency call system antenna 2 | 2C |
| A2/161 | Bluetooth®/Wi-Fi antenna | 15C |
| A2/162 | Bluetooth®/Wi-Fi antenna | 16C |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 8H |
| A2/19 | FM2, DAB and TV2 antenna amplifier | 8K |
| A2/23 | GPS antenna | 2B |
| A2/23 | GPS antenna | 2E |
| A2/32 | Rear window antenna | 1J |
| A2/51 | Rear spoiler antenna | 1H |
| A2/91 | Bluetooth®/Wi-Fi antenna | 15C |
| A26/17 | Head unit | 21J |
| A40/16 | Head unit/instrument cluster display cluster | 28E |
| A90/5 | Multimedia connection unit | 1G |
| CAN HMI | User interface CAN | 16F |
| Code 362 | HERMES LTE | 1B |
| Code 362 | HERMES LTE | 1D |
| Code 536 | SIRIUS satellite radio | 1K |
| Code 545 | Connect 5 (NTG6) | 20G |
| Code 547 | Connect 20 Entry (NTG6) | 20H |
| Code 548 | Connect 20 MID (NTG6) | 20H |
| Code 549 | Connect 20 HIGH (NTG6) | 16C |
| Code 549 | Connect 20 HIGH (NTG6) | 20H |
| Flex E | Chassis FlexRay | 8F |
| HSVL | High-speed video link | 25D |
| N112/9 | HERMES control unit | 8C |
| N166 | Head unit/instrument cluster control unit | 20G |
| N30/4 | Electronic Stability Program control unit | 2F |
| N73 | Electronic ignition switch control unit | 12G |
