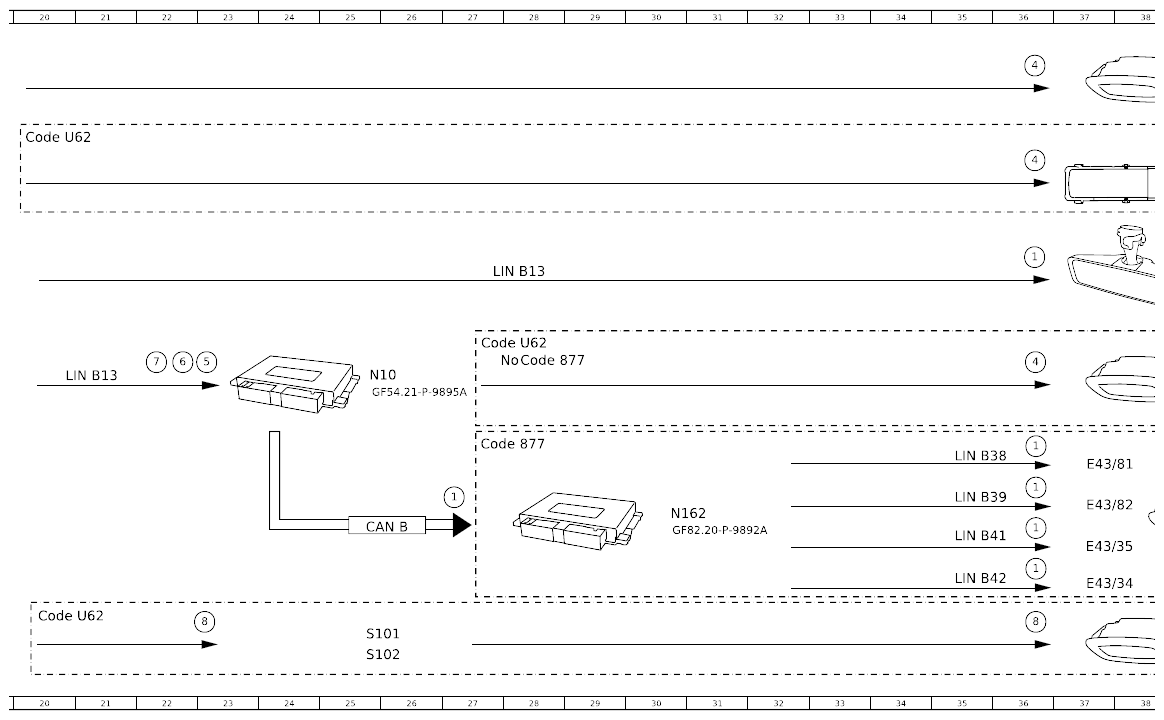

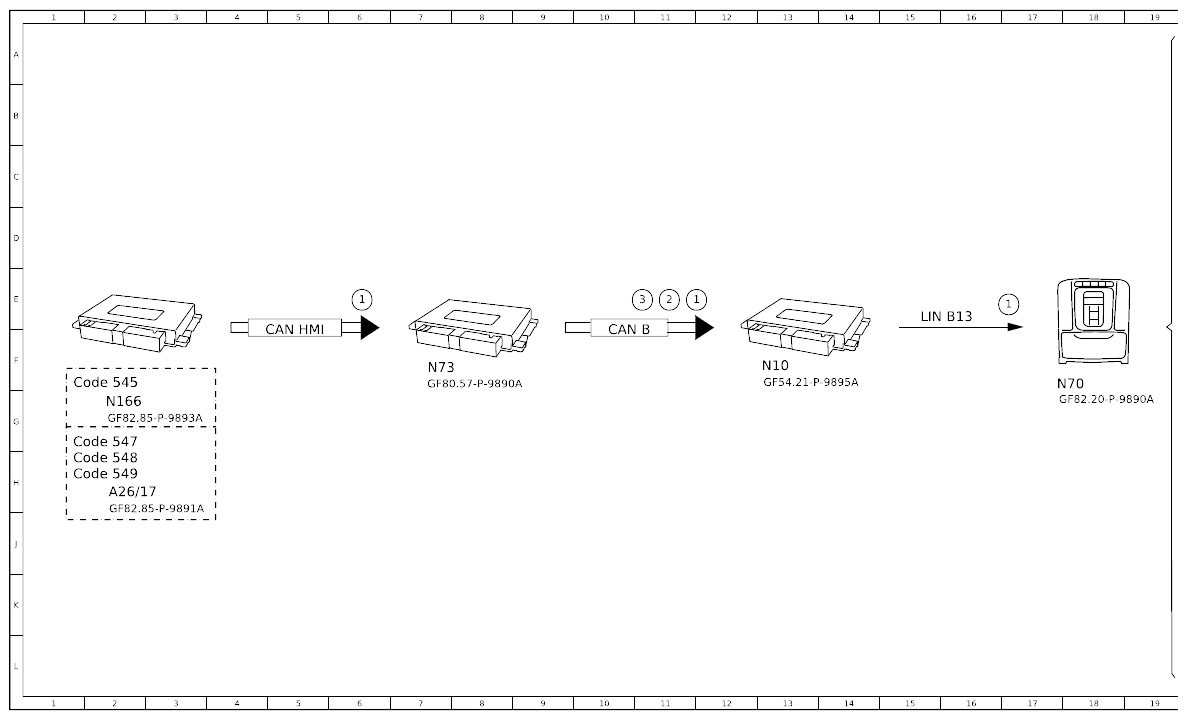

Function Schematic For Manual Interior Lighting Control - PE82.20-P-2501-97C
Model 118, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Interior lamp, request | 11E |
| 1 | Interior lamp, request | 6E |
| 1 | Interior lamp, request | 17E |
| 1 | Interior lamp, request | 36D |
| 1 | Interior lamp, request | 27H |
| 1 | Interior lamp, request | 36H |
| 1 | Interior lamp, request | 36G |
| 1 | Interior lamp, request | 36J |
| 2 | Circuit 15, status | 11E |
| 3 | Central locking, status | 10E |
| 4 | Interior lamp, actuation | 36C |
| 4 | Interior lamp, actuation | 36A |
| 4 | Interior lamp, actuation | 36F |
| 5 | Dome lamp button, status | 23F |
| 6 | Front reading lamp button, status | 22F |
| 7 | Rear passenger compartment reading lamp button, status | 22F |
| 8 | Power supply, status ON | 23K |
| 8 | Power supply, status ON | 36K |
| A26/17 | Head unit | 2H |
| A67 | Inside rearview mirror | 39E |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 25J |
| CAN HMI | User interface CAN | 5F |
| Code 545 | Connect 5 (NTG6) | 1F |
| Code 547 | Connect 20 Entry (NTG6) | 1G |
| Code 548 | Connect 20 MID (NTG6) | 1H |
| Code 549 | Connect 20 HIGH (NTG6) | 1H |
| Code 877 | Ambiance illumination | 27G |
| Code 877 | Ambiance illumination | 28F |
| Code U62 | Light and vision package | 20B |
| Code U62 | Light and vision package | 27F |
| Code U62 | Light and vision package | 20K |
| E14/1 | Left sun visor mirror lamp | 39L |
| E14/2 | Right sun visor mirror lamp | 39L |
| E15/12 | Left rear interior/reading lamp | 39C |
| E15/13 | Right rear interior/reading lamp | 39C |
| E15/3 | Rear dome lamp | 39B |
| E17/15 | Right front footwell lamp | 39F |
| E17/16 | Left front footwell lamp | 39G |
| E43/34 | Left rear footwell ambiance illumination | 37K |
| E43/35 | Right rear footwell ambiance illumination | 37J |
| E43/81 | Left front footwell ambiance illumination | 37H |
| E43/82 | Right front footwell ambiance illumination | 37H |
| LIN B13 | Roof LIN | 15E |
| LIN B13 | Roof LIN | 21F |
| LIN B13 | Roof LIN | 28E |
| LIN B38 | Left vehicle interior ambiance illumination LIN | 35H |
| LIN B39 | Right vehicle interior ambiance illumination LIN | 35H |
| LIN B41 | Left seats ambiance illumination LIN | 35J |
| LIN B42 | Right seats ambiance illumination LIN | 35K |
| N10 | SAM control unit | 25F |
| N10 | SAM control unit | 13F |
| N162 | Ambiance illumination control unit | 30J |
| N166 | Head unit/instrument cluster control unit | 2G |
| N70 | Overhead control panel control unit | 18F |
| N73 | Electronic ignition switch control unit | 7F |
| S101 | Left front mirror lamp switch | 25L |
| S102 | Right front mirror lamp switch | 25L |
