Remove/Install Rear Axle Level Sensor - AR82.10-P-0005MFA

Model 118, 177, 247

with code 459 (Steel suspension with adjustable damping)

Model 118, 177, 247

with code 631 (Static LED headlamps, left-hand traffic)

Model 118, 177, 247

with code 632 (Headlamps, LED, static, right-side traffic)

Model 118, 177, 247

with code 640 (SAE dynamic LED headlamps, right-hand traffic)

Model 118, 177, 247

with code 641 (Dynamic LED headlamps, left-hand traffic)

Model 118, 177, 247

with code 642 (Dynamic LED headlamps, right-hand traffic)

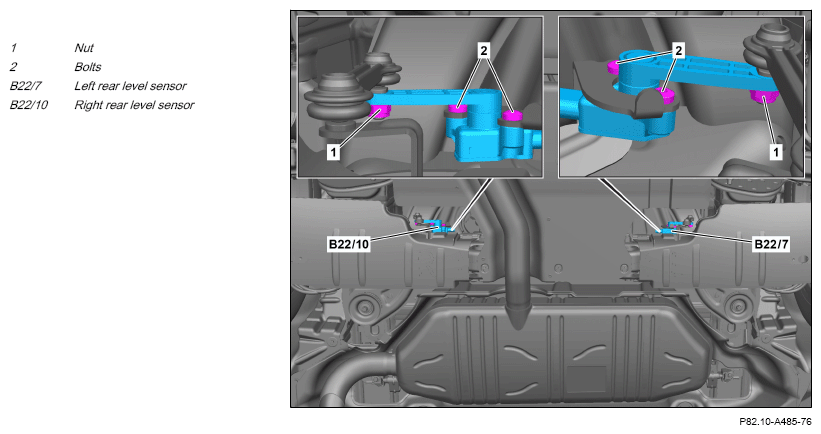

Shown on vehicle with code U54 (Torsion-beam axle)

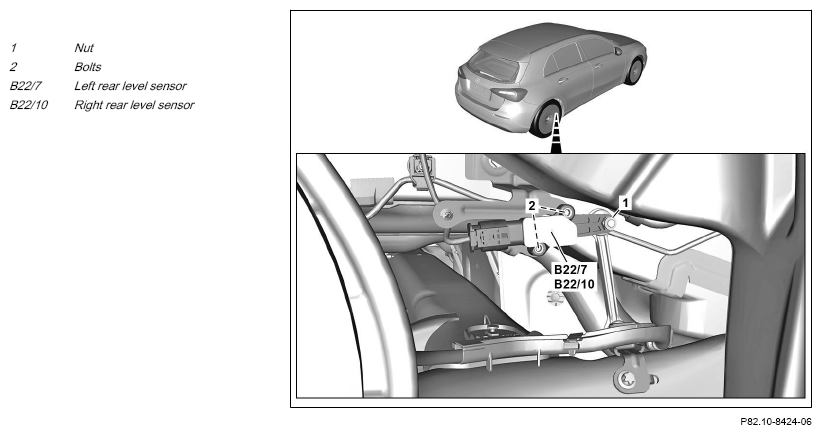

Shown on vehicle with code 459 (Steel suspension with adjustable damping)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Lift vehicle with vehicle lift.		AR00.60-P-1006A
2	Release and disconnect electrical connector at left rear level sensor (B22/7) or right rear level sensor (B22/10).	The number of level sensors per axle varies depending on the vehicle equipment.
3	Remove corresponding nut (1).	Pay attention to installation position. Do not twist left rear level sensor (B22/7) or right rear level sensor (B22/10). Nut, turning angle sensor to connecting strut	*BA82.10-P-1002-02G
4	Remove corresponding screws (2).	Screw/bolt, turning angle sensor to bracket	*BA82.10-P-1001-02G
5	Remove left rear level sensor (B22/7) or right rear level sensor (B22/10).
6	Install in the reverse order.
	Calibrate
7	Calibrate left rear level sensor (B22/7) or right rear level sensor (B22/10) using vehicle diagnosis system.	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
			AD00.00-P-2000-06MFA
	Check
8	Check and correct headlamp adjustment.	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
		Model 247 with code 459 (Steel suspension with adjustable damping) with code 631 (Static LED headlamps, left-hand traffic) with code 632 (Headlamps, LED, static, right-side traffic) with code 640 (SAE dynamic LED headlamps, right-hand traffic) with code 641 (Dynamic LED headlamps, left-hand traffic) with code 642 (Dynamic LED headlamps, right-hand traffic)	AP82.10-P-8260AO
		Model 177 with code 459 (Steel suspension with adjustable damping) with code 631 (Static LED headlamps, left-hand traffic) with code 632 (Headlamps, LED, static, right-side traffic) with code 640 (SAE dynamic LED headlamps, right-hand traffic) with code 641 (Dynamic LED headlamps, left-hand traffic) with code 642 (Dynamic LED headlamps, right-hand traffic)	AP82.10-P-8260N
		Model 118 with code 459 (Steel suspension with adjustable damping) with code 631 (Static LED headlamps, left-hand traffic) with code 632 (Headlamps, LED, static, right-side traffic) with code 640 (SAE dynamic LED headlamps, right-hand traffic) with code 641 (Dynamic LED headlamps, left-hand traffic) with code 642 (Dynamic LED headlamps, right-hand traffic)	AP82.10-P-8260Y

Number	Designation			Model 118	Model 177
BA82.10-P-1001-02G	Screw/bolt, turning angle sensor to bracket	M5	Nm	5	5

Number	Designation			Model 247
BA82.10-P-1001-02G	Screw/bolt, turning angle sensor to bracket	M5	Nm	5

Number	Designation			Model 118	Model 177
BA82.10-P-1002-02G	Nut, turning angle sensor to connecting strut	M6	Nm	8	8

Number	Designation			Model 247
BA82.10-P-1002-02G	Nut, turning angle sensor to connecting strut	M6	Nm	8
