Remove/Install Overhead Control Panel Control Unit - AR82.20-P-1000MFA
Model 118, 177, 243, 247
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of overhead control panel control unit (N70). | When replacing the overhead control panel control unit (N70). | |
| AD00.00-P-2000-06MFA | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

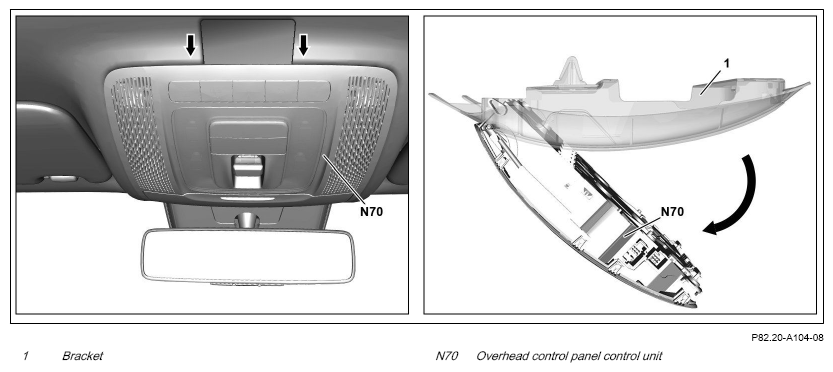

| 3 | Insert a plastic card or similar object (approx. 2 mm think) between the arrows and unclip the overhead control panel control unit (N70) from the bracket (1). | ||
| 4 | Fold down overhead control panel control unit (N70) in direction of arrow far enough to gain access to the electrical connectors. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 5 | Release and disconnect electrical connectors from overhead control panel control unit (N70). | ||
| 6 | Remove overhead control panel control unit (N70). | ||
| 7 | Install in the reverse order. |
