Remove/Install Front Door Sill - AR68.30-P-4101MFA

Model 118, 177, 243, 247

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove

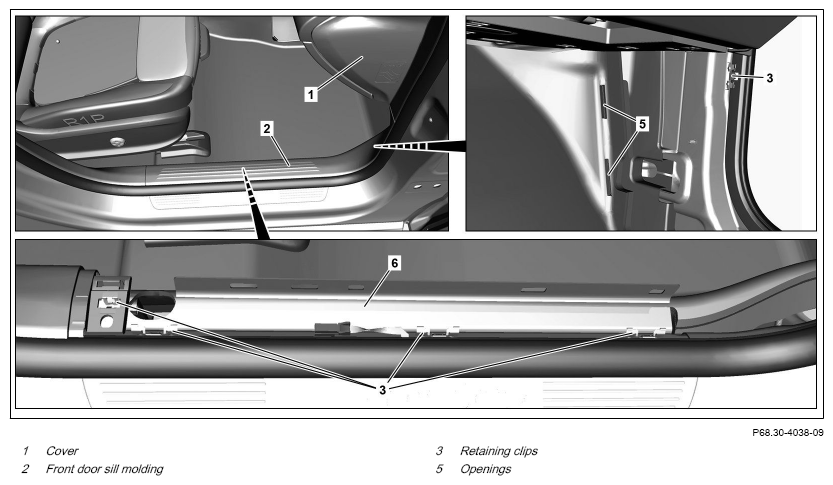

1	Unclip cover (1)
2	Unclip and remove front door sill (2)	Long wedge	Fig 1
	Install
3	Check retaining clips (3) are correctly seated and check for damage	Where retaining clips (3) are damaged ↓ Replace retaining clips (3).

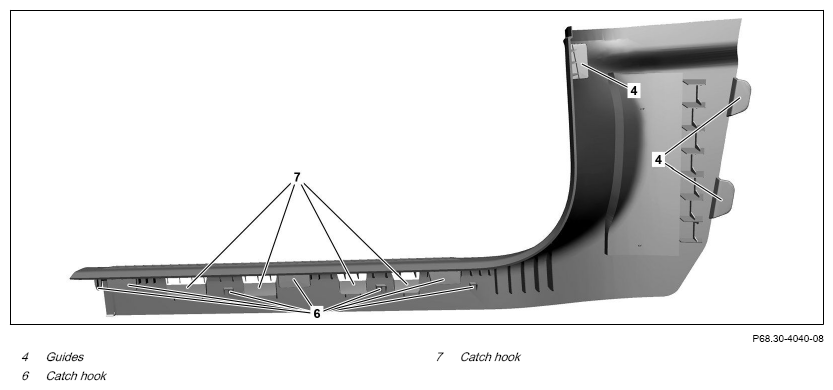

4	Check catch hooks (6, 7) for damage	Where catch hooks (6, 7) are damaged ↓ Replace front door sill (2).
5	Insert front door sill (2) with guides (4) into openings (5) and clip downwards into clips (3) and longitudinal member	Ensure that catch hooks (6, 7) fully engage in clips (3) and longitudinal member.
6	Clip in cover (1)

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
