Trunk Lid/Liftgate Lock, Basic Function - GF80.20-P-2012A
Model All (4xWD)
Model All (CAR)
Overview
This document contains information on:
- General
- Function

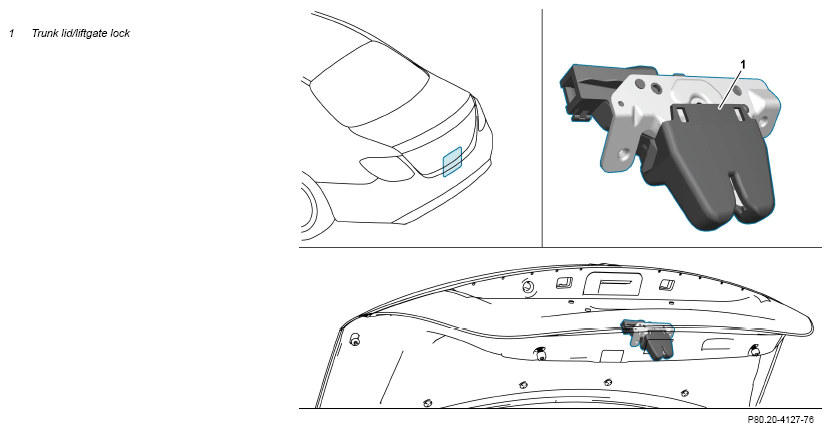

Example illustration of trunk lid/tailgate lock
General
The trunk lid/tailgate lock (1) is located at the center on the firewall of the trunk lid or tailgate.
The trunk lid/tailgate lock (1) connects the trunk lid or tailgate with the lock striker, keeps it securely closed or releases it again in the case of an opening request.
Function
The trunk lid/tailgate lock (1) has the following functions:
- Definition of status of trunk lid or tailgate (open or closed) via the status of the trunk lid/tailgate lock main catch switch
- Locking/unlocking of trunk lid or tailgate via the central locking system via the actuation of the trunk lid/tailgate lock motor
- Definition of detents via the status of the trunk lid/tailgate lock safety catch switch and the trunk lid/tailgate lock main catch switch
- During power closing function (vehicles with power closing function)
- During automatic closing (vehicles with EASY-PACK liftgate or remote trunk closing)
Depending on the vehicle, the central signal acquisition and actuation module (SAM control unit) or the rear signal acquisition and actuation module reads in the status of the respective trunk lid/tailgate lock switch. In addition, the central signal acquisition and actuation module or the rear signal acquisition and actuation module actuates the trunk lid/tailgate lock motor accordingly.
Depending on the equipment, the following components that provide assistance with the functions are installed in the trunk lid/tailgate lock (1):
- Trunk lid/tailgate lock safety catch switch (vehicles with power closing function or EASY-PACK liftgate)
- Trunk lid/liftgate lock main catch switch
- Trunk lid/liftgate lock motor
- Two additional mechanical locks on the left and right, each actuated via a Bowden cable (vehicles with trunk lid auxiliary lock, varies depending on model)
| Component descriptions | |||
| Trunk lid/liftgate latch component description | Model 206 | GF80.20-P-6033C | |
| Model 214 | GF80.20-P-6033K | ||
| Model 118 as of model year 2023 Model 177, 247 as of model year 2022 |
GF80.20-P-6033L | ||
| Model 167 as of model year 2023 |
GF80.20-P-6033M | ||
| Model 192 | GF80.20-P-6033R | ||
| Trunk lid lock, component description | Model 223 | GF80.20-P-6034A | |
| Model 232 | GF80.20-P-6034F | ||
| Model 254 | GF80.20-P-6034H | ||
| Model 214 | GF80.20-P-6034K |
