Fuel Filler Cap Central Locking System Actuator, Basic Function - GF80.20-P-2015A
Model All (CAR)
Overview
This document contains information on:
- General
- Function

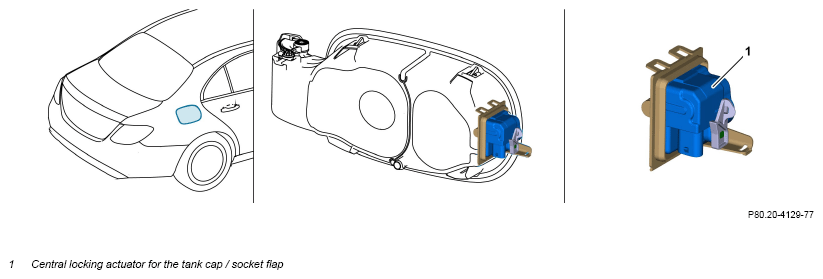

Example illustration
General
The fuel filler cap/socket flap central locking system actuator (1) is located on the tank filler or socket recess on the lock side of the fuel filler flap or socket flap.
Function
The following components are installed in the fuel filler cap/socket flap central locking system actuator (1):
- Microswitch
- Actuator motor
- Catch bolt
The fuel filler cap/socket flap central locking system actuator (1) has the following tasks:
- Detection of the opening request via the status of the microswitch when the tank or socket flap is pressed.
- Releasing and locking the fuel filler flap or socket flap by actuating the actuator motor.
| Component descriptions | |||
| Tank cap central locking actuator, component description | Model 223 | GF80.20-P-4143A | |
| Model 206 | GF80.20-P-4143C | ||
| Model 232 | GF80.20-P-4143F | ||
| Model 254 | GF80.20-P-4143H | ||
| Model 214 | GF80.20-P-4143K | ||
| Model 118, 177, 247 as of model year 2023 |
GF80.20-P-4143L | ||
| Model 167 as of model year 2023 |
GF80.20-P-4143M |
