Electronic Ignition Lock Control Unit Component Description - GF80.57-P-6001L
Model 118
as of model year 2023
Model 177, 247
as of model year 2022
 Courtesy of MERCEDES-BENZ USA
|

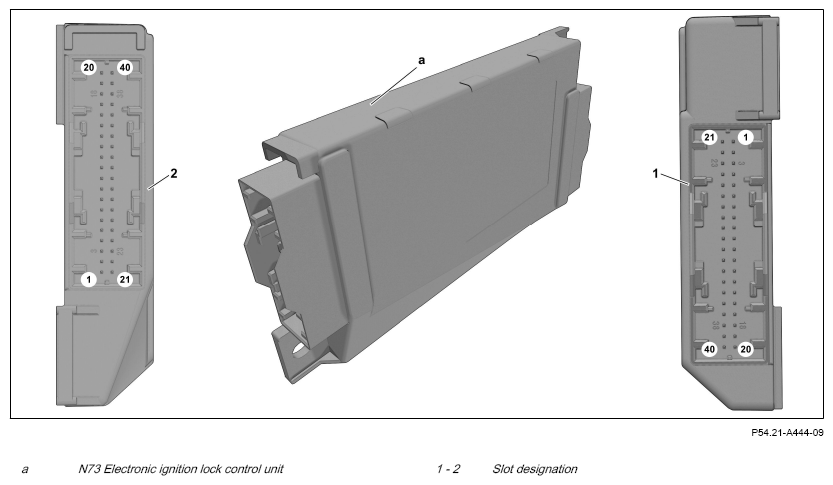

Illustration valid for model 118, 177, 247
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

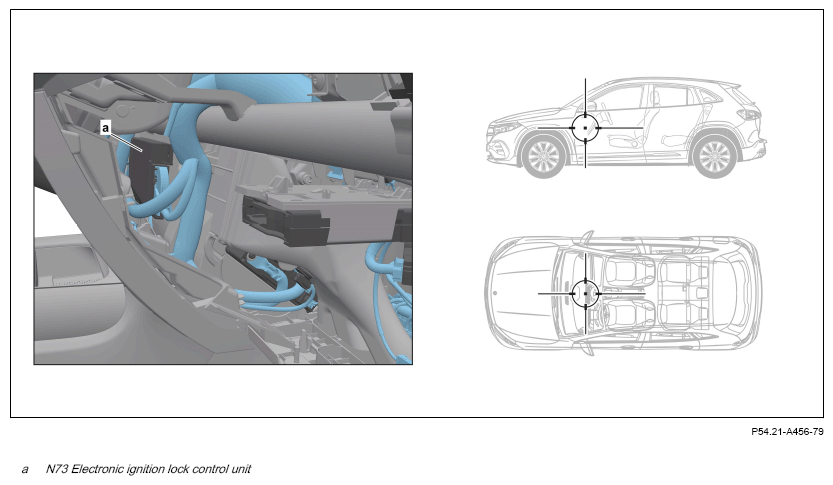

Location on model 118, 177, 247
