Door Lock, Basic Function - GF80.20-P-2017A
Model All (CAR)
Overview
This document contains information on:
- General
- Function

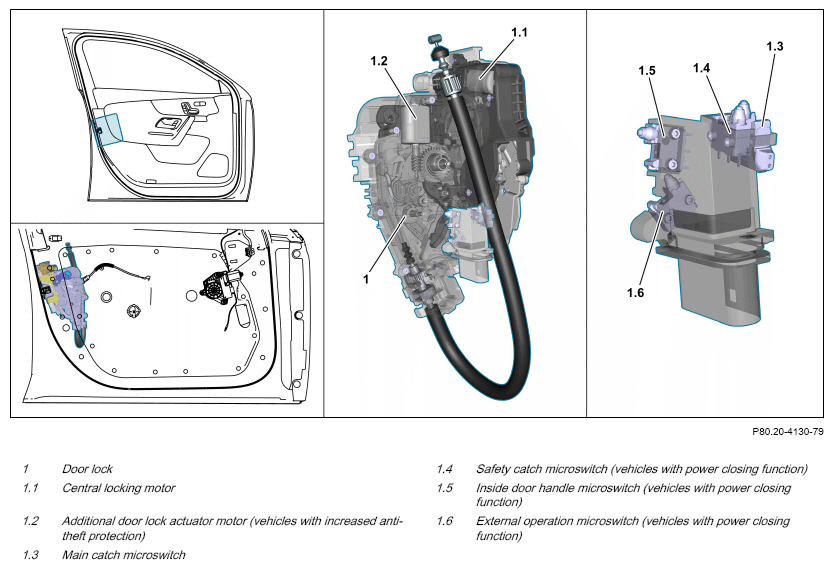

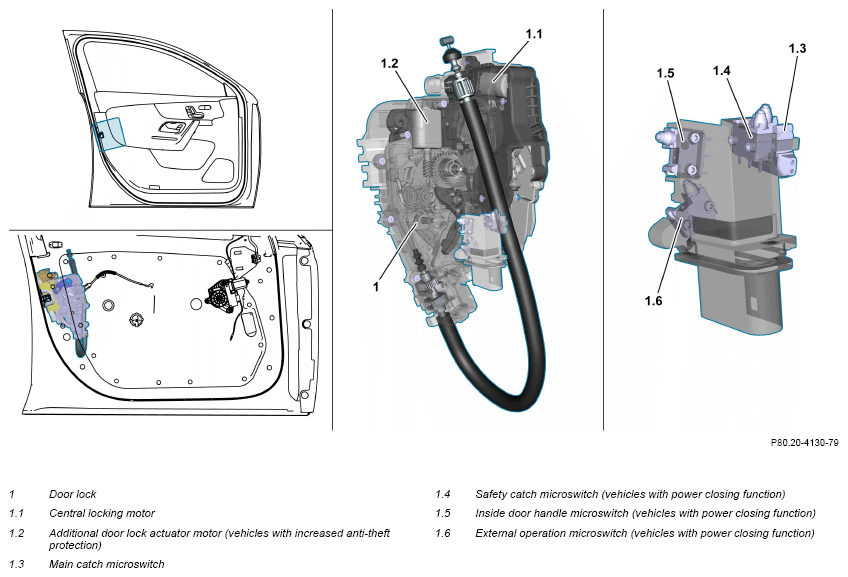

Sample illustration of door lock
General
The door locks (1) are located in the respective door.
Function
The mechanical part of the door lock (1) connects the door with the lock striker, holds it securely closed or releases it again in the case of an opening request.
The door lock (1) has the following tasks:
- Definition of door status (open or closed) via status of main catch microswitch (1.3)
- Locking/unlocking of door via central locking system via actuation of central locking motor (1.1)
- Additional door lock via additional door lock actuator motor (1.2) (vehicles with increased anti-theft protection)
- Definition of detents during power closing (vehicles with power closing function) via status of safety catch microswitch (1.4) and main catch microswitch (1.3)
- Detection of door opening request via status of external operation microswitch (1.6) and inside door handle microswitch (1.5) (vehicles with power closing function)
The door control unit reads in the status of the respective switch and actuates the relevant actuators.
Depending on the equipment, the following components are installed in every door lock (1):
- Central locking motor (1.1)
- Additional door lock actuator motor (1.2) (vehicles with increased anti-theft protection)
- Main catch microswitch (1.3)
- Safety catch microswitch (1.4) (vehicles with power closing function)
- Inside door handle microswitch (1.5) (vehicles with power closing function)
- External operation microswitch (1.6) (vehicles with power closing function)
| Component descriptions | |||
| Door lock, component description | Model 223 | GF80.20-P-4124A | |
| Model 243 | GF80.20-P-4124B | ||
| Model 206 | GF80.20-P-4124C | ||
| Model 297 | GF80.20-P-4124D | ||
| Model 295 | GF80.20-P-4124E | ||
| Model 232 | GF80.20-P-4124F | ||
| Model 296 | GF80.20-P-4124G | ||
| Model 254 | GF80.20-P-4124H | ||
| Model 214 | GF80.20-P-4124K | ||
| Model 118, 177, 247 as of model year 2023 | GF80.20-P-4124L | ||
| Model 167 as of model year 2023 | GF80.20-P-4124M | ||
| Model 294 | GF80.20-P-4124N |
