48 V On-Board Electrical System, Basic Function - GF54.10-P-1015A
Model All (CAR)
with code B01 (48Vtechnology)
Overview
This document contains information on:
- General
- Function
General
The 48 V on-board electrical system supplies all 48 V consumer (consumers with high energy requirement) with electrical energy. It also provides the electrical energy for starting the combustion engine with the starter-alternator.
Function
When the combustion engine is running, the starter-alternator generates the electrical energy for charging the 48 V battery. Depending on the version, the starter-alternator is either driven via a belt or integrated into the drivetrain.
The 48 V on-board electrical system supplies the 12 V on-board electrical system with electrical energy from the 48 V battery via the DC/DC converter. No 12 V alternator is installed. In other words, the 12 V on-board electrical system replaces the conventional 12-V alternator with the DC/DC converter control unit. Apart from this, the 48 V on-board electrical system together with the 48 V on-board electrical system battery provides additional storage capacity throughout the overall system. The DC/DC converter control unit is the master control unit for energy management in the 48 V onboard electrical system.
The energy management in the 48 V on-board electrical system calculates the current and voltage limits for the power output of the integrated starter alternator to achieve an equalized charge balance for the 48 V on-board electrical system battery and to secure starting capability.

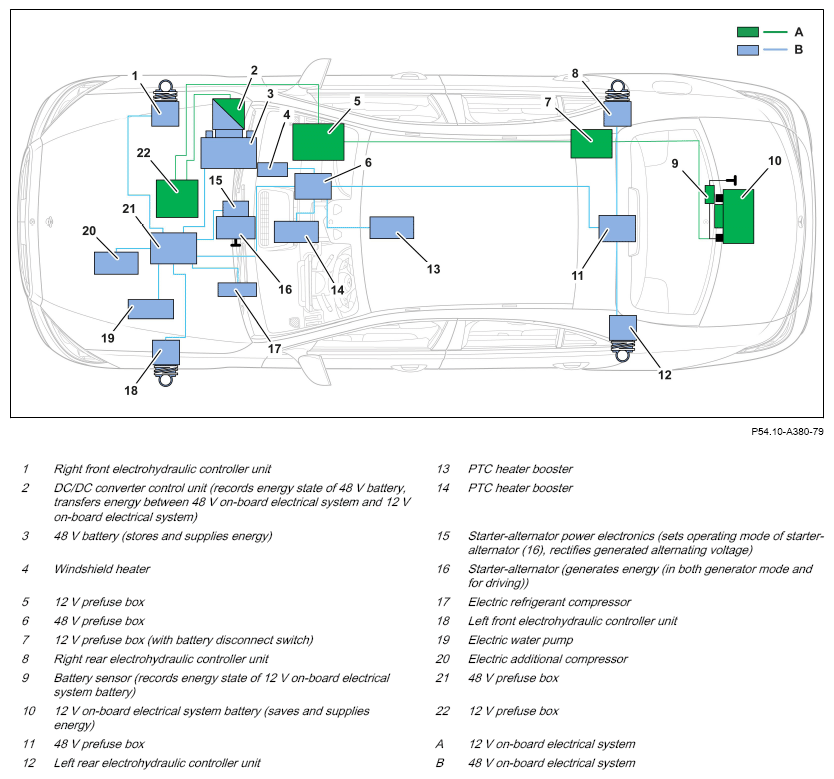

Example illustration of 48 V on-board electrical system
| Additional basic functions | |||
| 48 V on-board electrical system battery, basic function | GF54.10-P-2016A | ||
| 48 V on-board electrical system DC/DC converter control unit basic function | GF54.10-P-9898A |
