Function Schematic, Actuate Low Beams - PE82.10-P-2504-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|

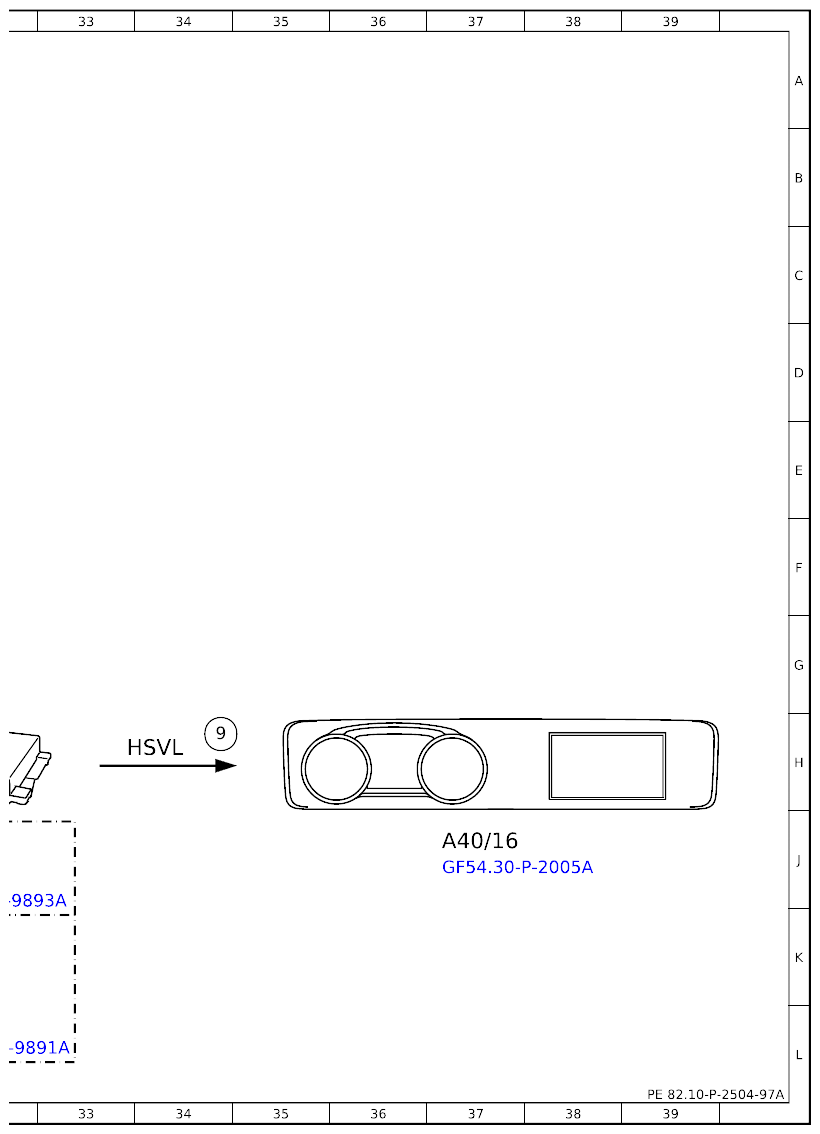

| A40/16 | Head unit/instrument cluster display cluster | 37J |
| B38/2 | Rain/light sensor | 6E |
| Code 545 | Connect 5 (NTG6) | 30J |
| Code 547 | Connect 20 Entry (NTG6) | 30K |
| Code 548 | Connect 20 MID (NTG6) | 30K |
| Code 549 | Connect 20 HIGH (NTG6) | 30K |
| Code 631 | Static LED headlamp, left-hand traffic | 23D |
| Code 632 | Static LED headlamp, right-hand traffic | 23D |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 23E |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 23E |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 23E |
| Code F167 | Model series 167 | 1B |
| Code F167 | Model series 167 | 1A |
| Code F167 | Model series 167 | 18J |
| Code F243 | MODEL SERIES 243 | 1C |
| Code F243 | MODEL SERIES 243 | 1A |
| Code F243 | MODEL SERIES 243 | 18G |
| Code F293 | Model series 293 | 1J |
| Code F293 | Model series 293 | 1H |
| Code F293 | Model series 293 | 18J |
| Code F293 | Model series 293 | 8D |
| Code F293 | Model series 293 | 8C |
| Code F293 | Model series 293 | 26G |
| Code F293 | Model series 293 | 27H |

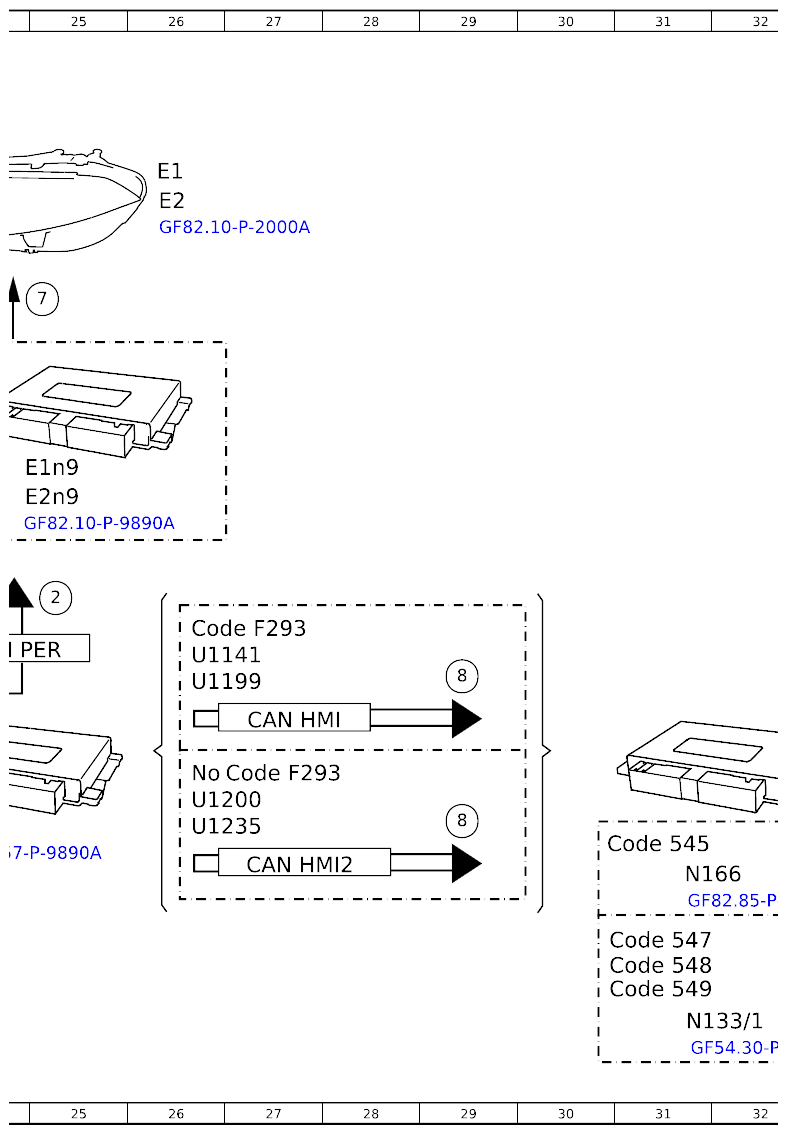

| E1 | Left front lamp unit | 26B |
| E1n9 | Left headlamp control unit | 24E |
| E2 | Right front lamp unit | 26B |
| E2n9 | Right headlamp control unit | 24E |
| HSVL | High-speed video link | 34H |
| N3/9 | CDI control unit | 2G |
| N3/10 | Engine management control unit | 2G |

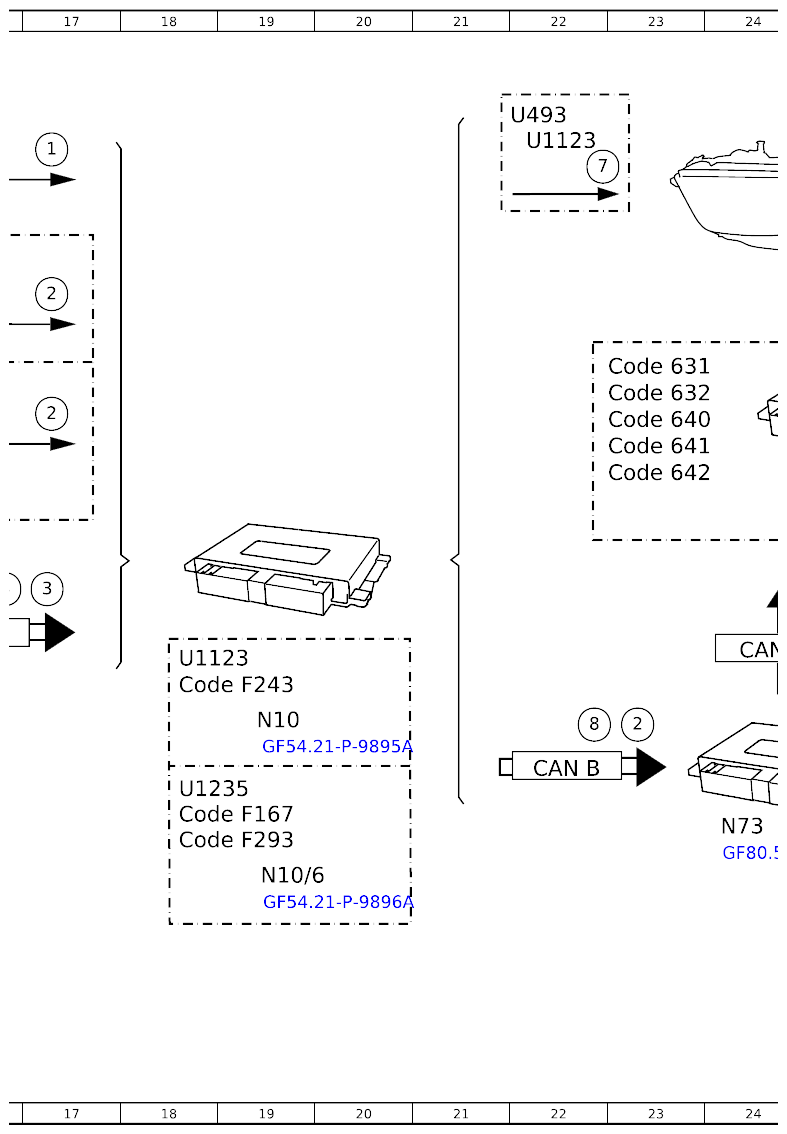

| N10 | Central control module | 19H |
| N10/6 | Front SAM control unit | 19J |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2J |
| N30/8 | Regenerative braking system control unit | 2K |
| N73 | EIS [EZS] control unit | 13G |
| N73 | EIS [EZS] control unit | 24J |

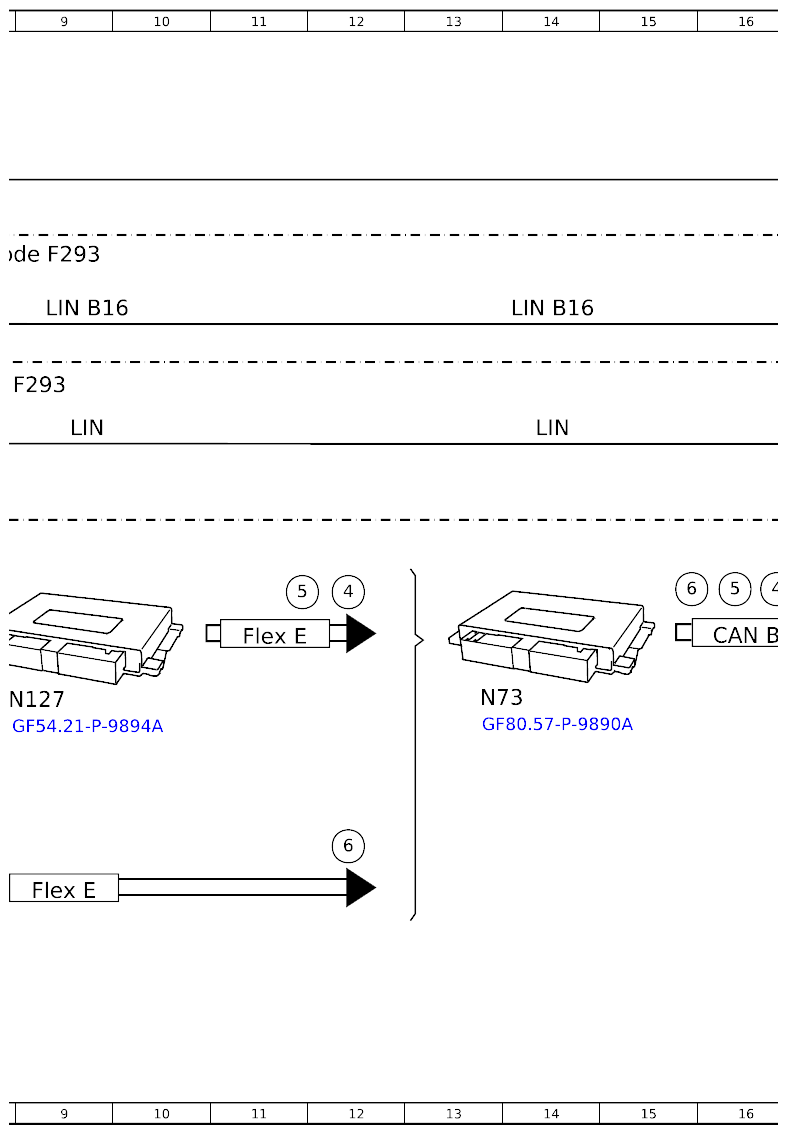

| N127 | Drivetrain control unit | 9G |
| N133/1 | Instrument cluster control unit | 31L |
| N166 | Head unit/instrument cluster control unit | 31J |

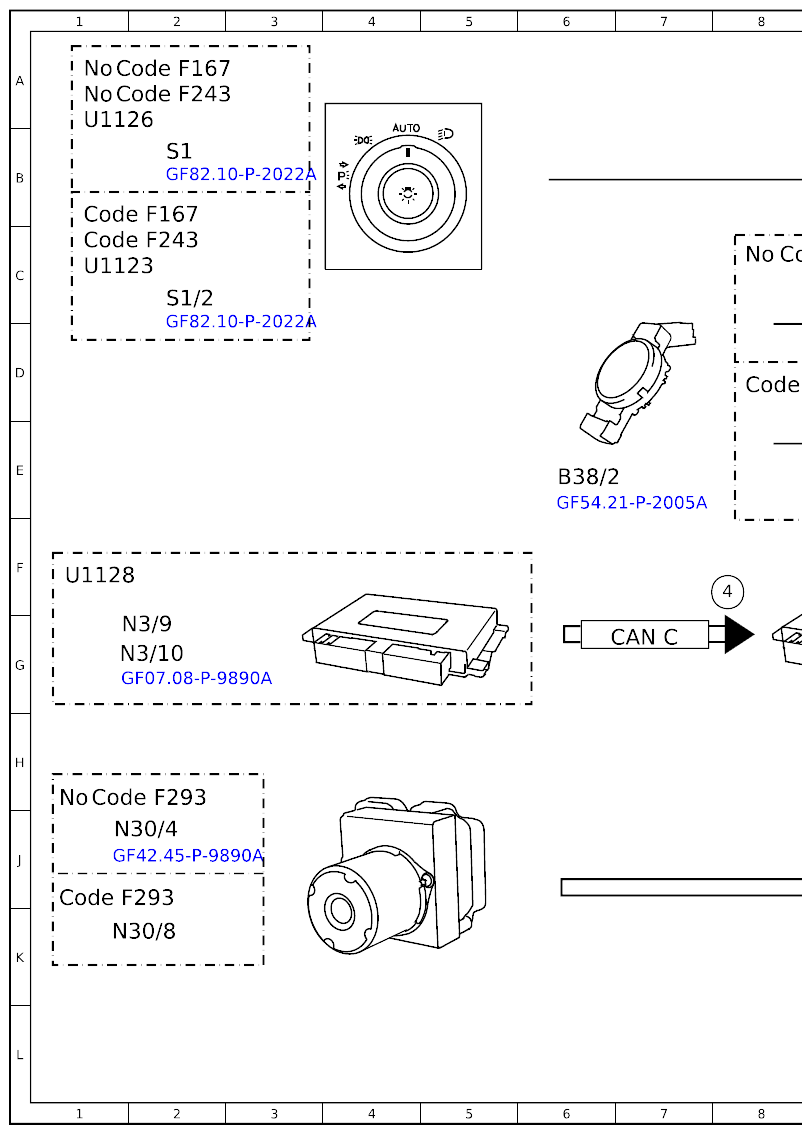

| S1 | Exterior lights switch | 2B |
| S1/2 | Exterior lights and electric parking brake switch group | 2C |
| U1123 | Valid for model 118, 177, 247 | 22B |
| U1123 | Valid for model 118, 177, 247 | 1C |
| U1123 | Valid for model 118, 177, 247 | 18G |
| U1126 | Valid except model 118, 177, 247 | 1A |
| U1128 | Valid for combustion engine | 1F |
| U1141 | Valid except model 213, 238, 257, 290 | 26G |
| U1199 | Valid for vehicles up to facelift | 26G |
| U1200 | Valid for vehicles as of facelift | 26H |
| U1235 | Valid for model 213, 238, 257, 290 | 18H |
| U1235 | Valid for model 213, 238, 257, 290 | 26J |
| U493 | Valid for halogen lamp unit | 22A |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 22H |
| CAN C | CAN for engine | 7G |
| CAN HMI | User interface CAN | 27H |
| CAN HMI2 | CAN 2 for user interface | 27J |
| CAN PER | CAN for peripherals | 24G |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 11G |
| LIN | Local Interconnect Network | 9E |
| LIN | Local Interconnect Network | 14E |
| LIN B16 | Rain and light sensor LIN | 9C |
| LIN B16 | Rain and light sensor LIN | 14C |
| 1 | Exterior lights switch, status | 17B |
| 2 | Low beams, request | 17C |
| 2 | Low beams, request | 25F |
| 2 | Low beams, request | 23H |
| 2 | Low beams, request | 17D |
| 3 | Circuit 15, status | 17F |
| 4 | Engine running, signal | 16F |
| 4 | Engine running, signal | 12F |
| 4 | Engine running, signal | 8F |
| 5 | Drivetrain operational, signal | 16F |
| 5 | Drivetrain operational, signal | 11F |
| 6 | Vehicle speed, signal | 15F |
| 6 | Vehicle speed, signal | 12J |
| 7 | Low beams, actuation | 25C |
| 7 | Low beams, actuation | 22B |
| 8 | Indicator lamp, request | 22H |
| 8 | Indicator lamp, request | 29G |
| 8 | Indicator lamp, request | 29J |
| 9 | Image data, signal | 34H |
