Remove Tapered Roller Bearing Outer Race From Clutch Housing - AR27.40-P-0520-01MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.1 in model 118, 177, 247

Fig 1: Identifying Internal Extractor (000 589 68 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Countersupport (000 589 35 33 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01

The following special tools are required: counter stay (000 589 35 33 00), internal extractor (000 589 68 33 00).

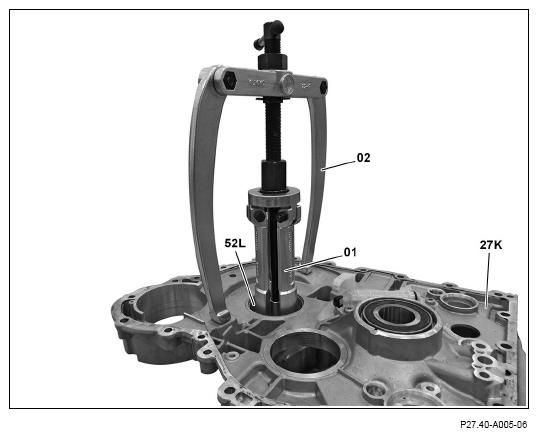

Pull tapered roller bearing outer race (52L) out of coupling housing (27K) using internal extractor (01) and counter stay (02).
Clean seat of tapered roller bearing outer race (52L) in coupling housing (27K).

Courtesy of MERCEDES-BENZ USA
