Information On Avoiding Damage To Flexible Steel Lines - AH00.10-P-0003-01A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model all (4xWD, CAR, Light transporter, smart)
Assembly notes
If the braided stainless steel line is kinked and clamped off, the inner hose may be damaged.
This reduces the service life of the braided stainless steel line.
- Bending the braided stainless steel line when removing/installing is impermissible.
- Clamping the braided stainless steel line off, e.g. during assembly work, is impermissible.
- A minimum bending radius of 50 mm must be maintained.
- Twisting the braided stainless steel line when removing/installing is impermissible.
- Replace damaged braided stainless steel lines.

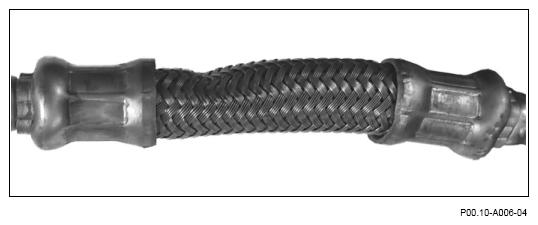

Twisted braided stainless steel line

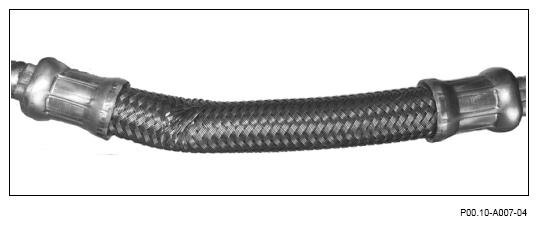

Kinked or clamped off braided stainless steel line
