Tightening Procedure For Cover On Cylinder Head - AR01.30-P-5706-01MFG
Engine 139 in model 118, 177, 247
CYLINDER HEAD
| Number |
Designation |
Engine 139 |
| BA01.30-P-1003-01DA |
Bolt, front cover to cylinder head/cylinder head cover |
M6 |
Nm |
5 |

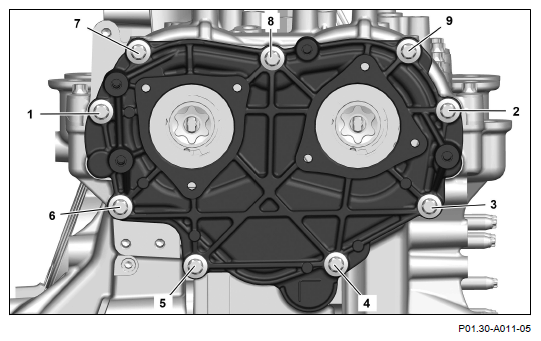

- Tighten screws (1 to 9) in the numerical sequence
.
