Remove/Install Poly-V-Belt Tensioning Device - AR13.25-P-3220MFG

Engine 139 in Model 118, 177, 247

Shown on removed alternator (G2)

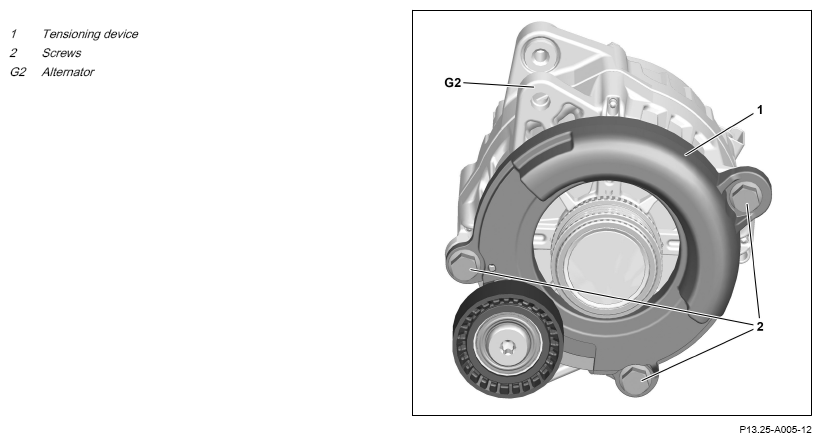

Fig 1: Poly-V-Belt Tensioning Device Components Location - Engine 139 In Model 247 (Shown On Removed Alternator)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove alternator (G2).		AR15.40-P-5032MFG
2	Remove screws (2).	Screw, belt tensioner to alternator	*BA13.25-P-1006-01Z
3	Remove tensioning device (1).
4	Check tensioning device (1) for damage, wear and contamination.	If problems exist, ↓ Replace clamping device (1).
5	Install in the reverse order.
