Replace Propeller Shaft Pilot Bushing - AR41.10-P-0250MFC
Model 118, 177, 247
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove | |||
| 1 | Remove propeller shaft (1). | AR41.10-P-0050MFA | |

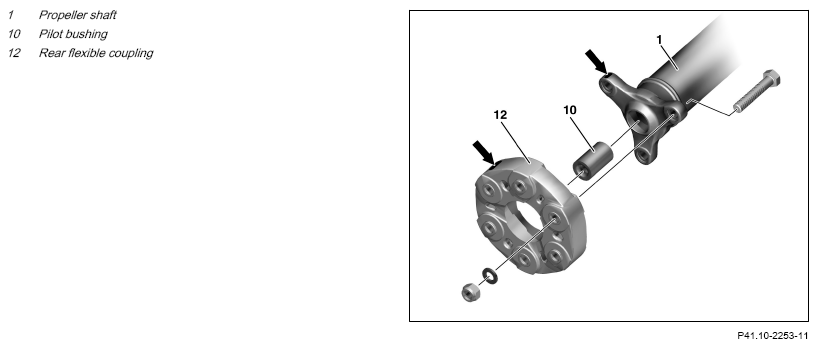

| 2 | Mark position of rear flex disk (12) relative to propeller shaft (1) using color markings (arrows). | ||
| 3 | Remove rear flex disk (12) from propeller shaft (1). | Fig 2 | |
| 4 | Remove pilot bushing (10). | AR41.10-P-0250-02MFC | |
| Install | |||
| 5 | Pack cavity of pilot bushing (10) with grease. | ||
| Multipurpose grease (NLGI Class 2) | BB00.40-P-0267-00A | ||
| 6 | Press in pilot bushing (10). | AR41.10-P-0250-03MFC | |
| Press-in dimension "a" from face end of pilot bushing to joint flange | *BE41.10-P-1001-04H | ||
| 7 | Restore original installation position of rear flex disk (12) relative to propeller shaft (1) based on colored marking (arrows). | ||
| 8 | Mount rear flex disk (12) onto propeller shaft (1) | *BA41.10-P-1003-01K | |
| Fig 2 | |||
| 9 | Install propeller shaft (1). | AR41.10-P-0050MFA |
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT
| Number | Designation | Model 118, 177, 247 | |
|---|---|---|---|
| BE41.10-P-1001-04H | Press-in dimension "a" from face end of Rear propeller shaft pilot bushing to joint flange | mm | 25, 0...25, 3 |
PROPELLER SHAFT
| Number | Designation | Model 118, 177, 247 | ||
|---|---|---|---|---|
| BA41.10-P-1003-01K | Bolt, flexible coupling to rear drive shaft | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 90 | ||
