Radiator Support Replacement - Ar62.30-P-1500MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
	Remove/install

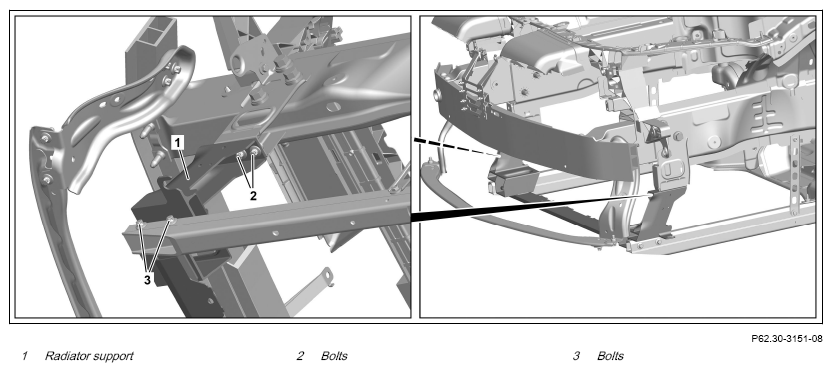

1	Remove all detachable parts in repair area.
2	Remove screws (2, 3).	Bolt, connecting carrier to front axle carrier/radiator support	*BA62.30-P-1003-02O
		Bolt, radiator support to mounting support	*BA62.30-P-1004-02O
3	Remove radiator support (1).
4	Install in the reverse order.
5	Apply wax at connections to body.	Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A

FRONT END WITH FRONT REINFORCEMENT

Number	Designation			Model 118	Model 177
BA62.30-P-1003-02O	Bolt, connecting carrier to front axle carrier/radiator support	M8	Nm	16	16

FRONT END WITH FRONT REINFORCEMENT

Number	Designation			Model 247
BA62.30-P-1003-02O	Bolt, connecting carrier to front axle carrier/radiator support	M8	Nm	16

FRONT END WITH FRONT REINFORCEMENT

Number	Designation			Model 118	Model 177
BA62.30-P-1004-02O	Bolt, radiator support to mounting support	M8	Nm	16	16

FRONT END WITH FRONT REINFORCEMENT

Number	Designation			Model 247
BA62.30-P-1004-02O	Bolt, radiator support to mounting support	M8	Nm	16

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation (free of solvents), 1 liter	A 000 986 72 70 10
