Remove/Install Sliding Roof Panel - AR77.20-P-2854MFA
Model 118, 177, 243, 247
with code 413 (Panoramic sliding sunroof/glass roof)
Shown on model 177
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

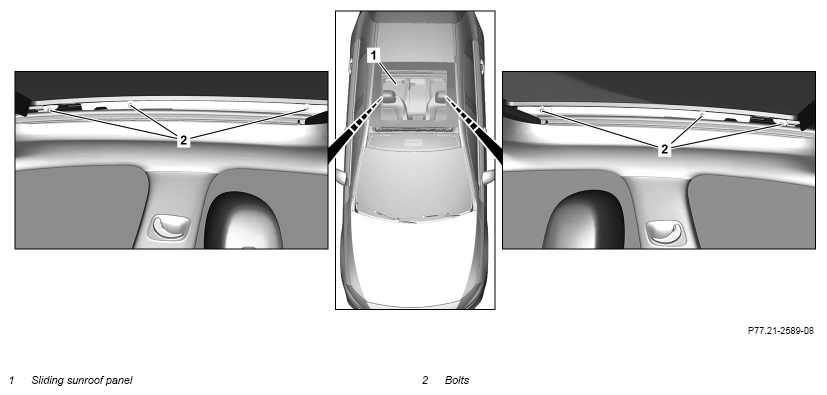

| 1 | Raise sliding sunroof panel (1) to tilt position and open until bolts (2) can be accessed. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Unscrew bolts (2). | ||
| 4 | Remove sliding sunroof panel (1) upwards and set down on a suitable base. | ||
| 5 | Install in the reverse order. | ||
| Adjust | |||
| 6 | Adjust sliding sunroof panel (1). | AR77.21-P-6924MFA |
