Remove/Install Engine Hood Catch - AR88.40-P-3201MFA
Model 118, 177, 247
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Open engine hood | ||
| 2 | Release and disconnect electrical connector (2) | ||

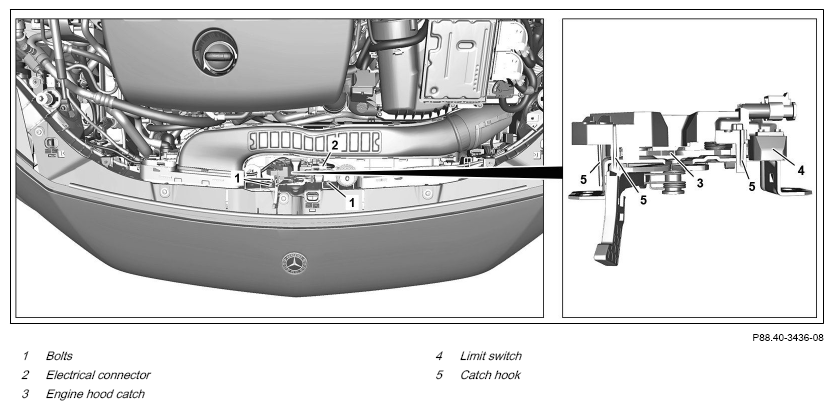

| 3 | Mark setting position of hood catch (3) and remove screws (1) | *BA88.40-P-1001-01F | |
| 4 | Lift catch hooks (5) and remove limit switch (4) | ||
| 5 | Unhook cable from hood catch (3) and remove hood catch (3) | ||
| 6 | Install in the reverse order |
ENGINE HOOD
| Number | Designation | Model 118, 177, 247 | |
|---|---|---|---|
| BA88.40-P-1001-01F | Bolt, engine hood catch lower section to radiator crossmember | Nm | 12 |
