Remove/Install Rear Stabilizer Bar Linkage - AR32.35-P-3329FR
Model 257
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||
| 1 | Remove rear shock absorber | AR32.25-P-0110FR | |

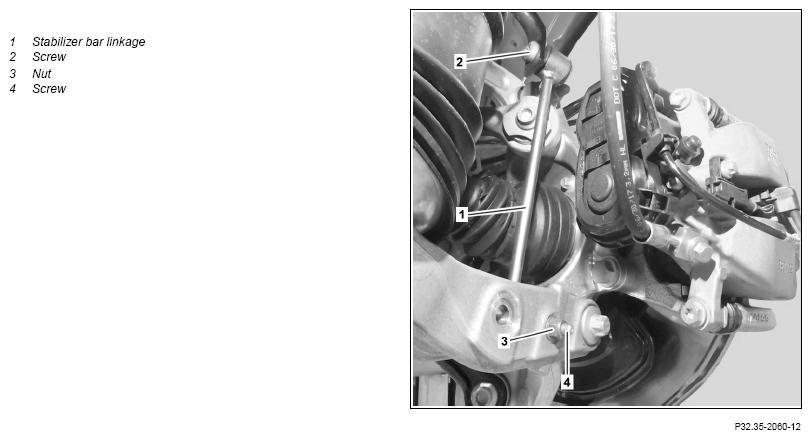

| 2 | Unscrew bolt (2) | Fig 3 | |
| Fig 2 | |||
| 3 | Unscrew nut (3) | ||
| 4 | Lift the wheel carrier using a suitable hydraulic lifting device until the screw (4) can be removed | ||
| 5 | Remove screw (4) and place torsion bar linkage (1) to one side | ||
| Install | |||
| 6 | Clean inside thread of torsion bar linkage (1) using a tap M10 | When reinstalling a torsion bar linkage (1). | |
| 7 | Position torsion bar linkage (1) and insert screw (4) | ||
| 8 | Screw on nut (3) | *BA32.35-P-1003-03B | |
| 9 | Lower hydraulic lifting device until the screw (2) can be positioned | ||
| 10 | Tighten screw (2) | *BA32.35-P-1001-03B | |
| Fig 3 | |||
| Fig 2 | |||
| 11 | Install rear shock absorber | AR32.25-P-0110FR |
REAR AXLE STABILIZER BAR
| Number | Designation | Model 257 except code 489 (AIR BODY CONTROL) | Model 257 with code 489 (AIR BODY CONTROL) | |
|---|---|---|---|---|
| BA32.35-P-1001-03B | Screw, torsion bar linkage to stabilizer bar | Nm | 60 | 60 |
REAR AXLE STABILIZER BAR
| Number | Designation | Model 257 except code 489 (AIR BODY CONTROL) | Model 257 with code 489 (AIR BODY CONTROL) | ||
|---|---|---|---|---|---|
| BA32.35-P-1003-03B | Nut, torsion bar linkage to spring link | Stage 1 | Nm | 20 | 35 |
| Stage 2 | ∠° | 180 | 120 | ||
