Remove/Install Steering Coupling - AR46.10-P-8000FR
Model 257, 290
MODIFICATION NOTES
| 05.02.2019 | "Change position of steering gear" added. | Step 5 |
| Remove/install | |||
| 1 | Deactivate easy entry and exit feature. | Model 257, 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) |
|
| 2 | Turn rack-and-pinion steering (5) into center position (front wheels in straight-ahead position) and fix steering wheel in place using holding device. | Otherwise the clock spring contact will be destroyed. |
|
| Fig 3 | |||
| 3 | Remove center and rear section of engine compartment lining. | Model 290 Model 257 |
AR61.20-P-1105FRX AR61.20-P-1105FR |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |

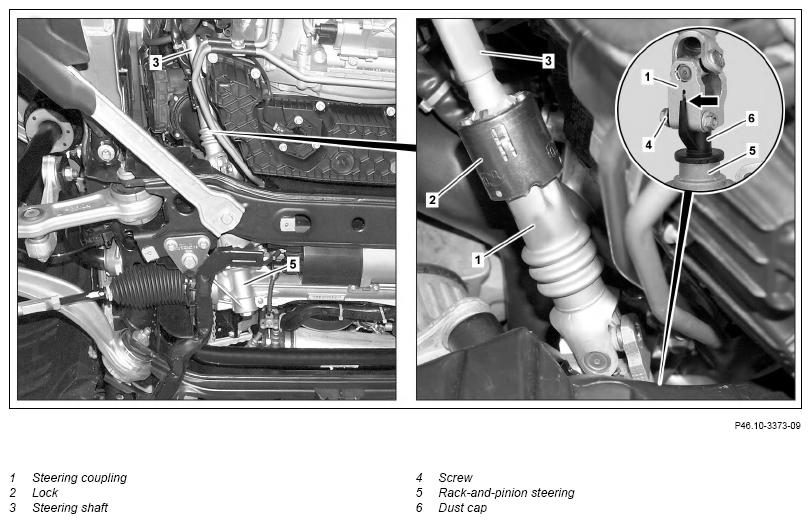

| 4 | Disconnect steering coupling (1) on lock (2) from steering shaft (3). | Separate and connect steering coupling | AR46.10-P-8000-01FR |
| Turn steering gear to center position |
AR46.20-P-0500-01FR | ||
| Fig 2 | |||
| 5 | Remove bolt (4) from steering coupling (1). | ||
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| *BA46.10-P-1002-01N | |||
| 6 | Remove steering coupling (1) from rack-and-pinion steering (5). | ||
| 7 | Install in the reverse order |
STEERING SHAFT
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA46.10-P-1002-01N | Bolt, steering coupling to rack-and-pinion steering | Nm | 24 | 24 |
