Wiring Diagram Of Parking System Control Unit - PE54.65-P-2107-97XCB

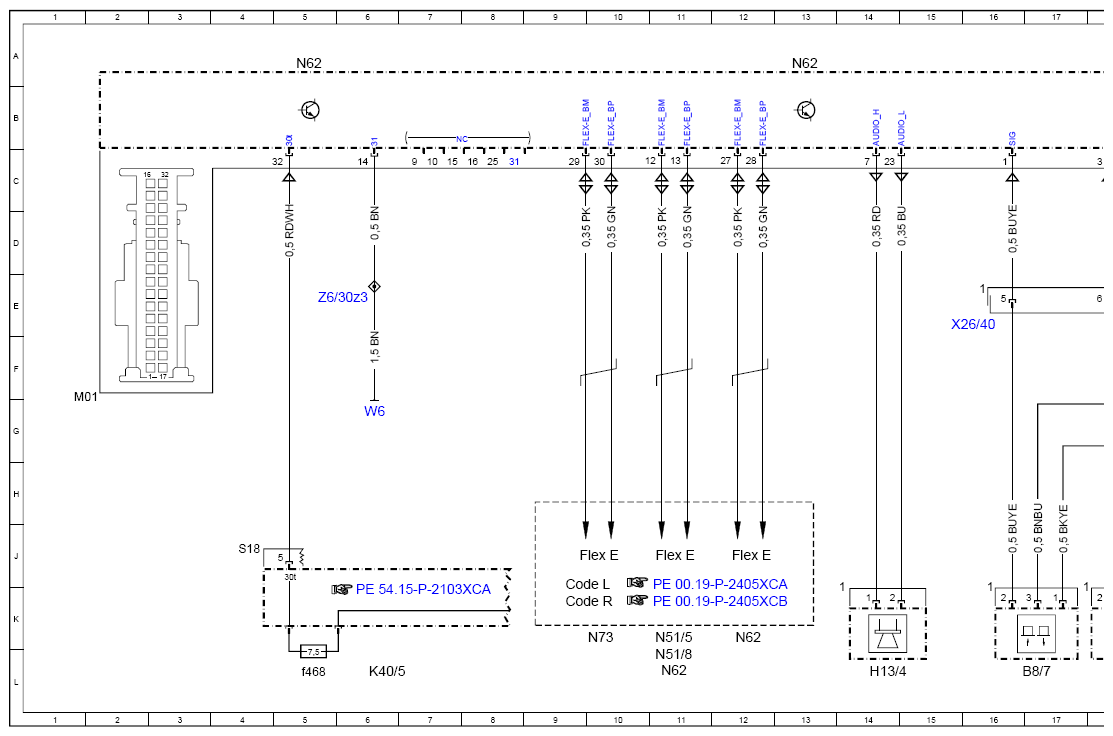

Model 257, 290 as of model year 2022 with code 235 (Active Parking Assist) Control unit N62
Model 257 as of model year 2022 with code 220 (PARKTRONIC system (PTS)) Control unit N62
| Code: | Designation: | Position: |
|---|---|---|

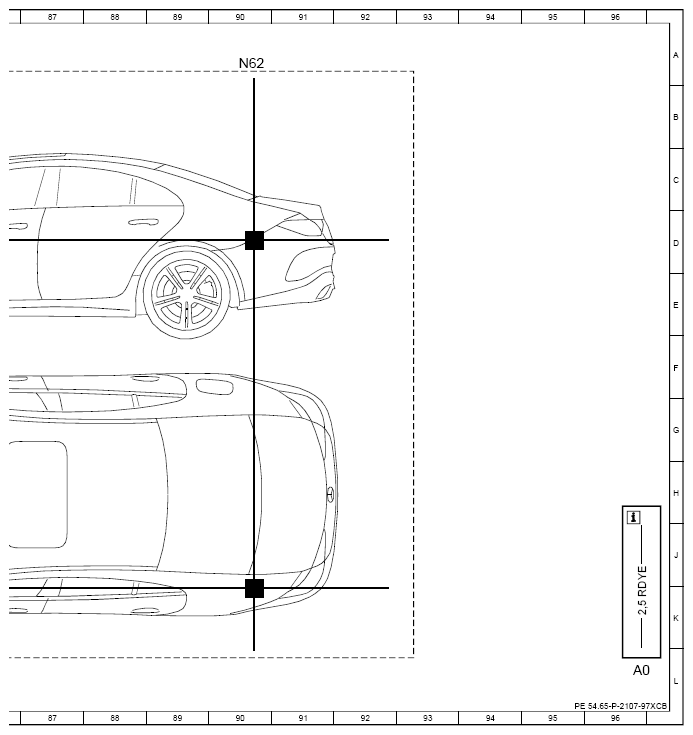

| A0 | Use of wiring diagrams | 96L |
| A26/17 | Head unit | 39L |

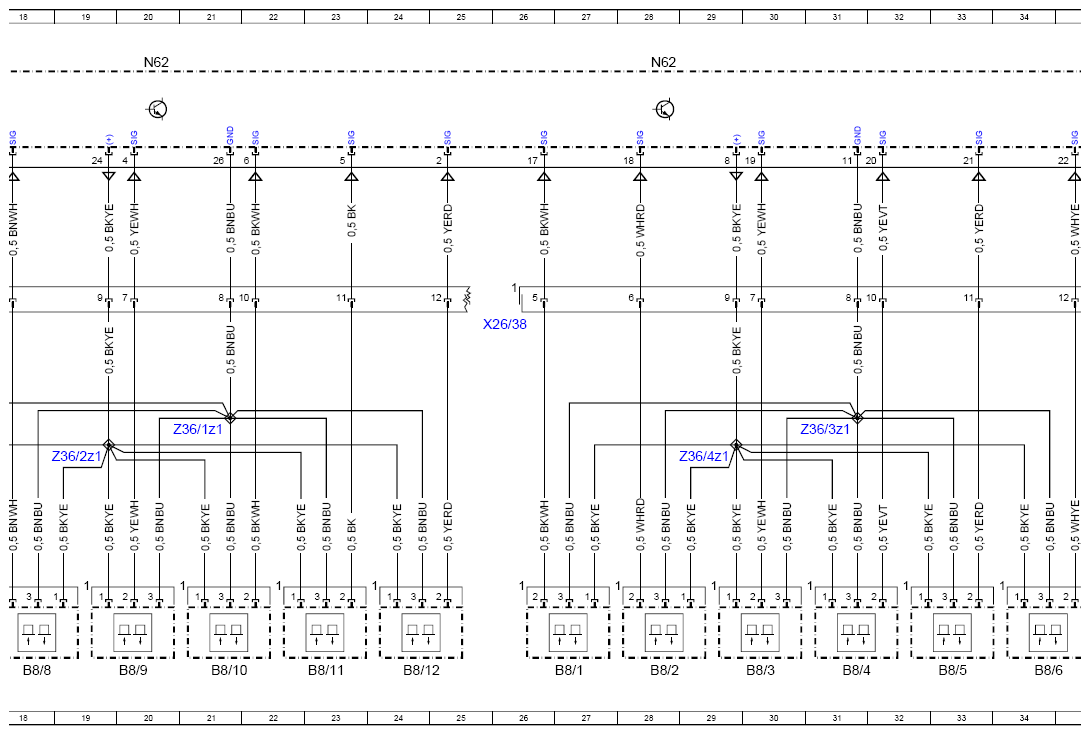

| B8/1 | Outer left front parking system distance sensor | 27L |
| B8/10 | Outer left rear parking system distance sensor | 21L |
| B8/11 | Center left rear parking system distance sensor | 23L |
| B8/12 | Center right rear parking system distance sensor | 24L |
| B8/2 | Center left front parking system distance sensor | 28L |
| B8/3 | Inner left front parking system distance sensor | 30L |
| B8/4 | Inner right front parking system distance sensor | 31L |
| B8/5 | Center right front parking system distance sensor | 33L |
| B8/6 | Outer right front parking system distance sensor | 34L |
| B8/7 | Outer right rear parking system distance sensor | 17L |
| B8/8 | Inner right rear parking system distance sensor | 18L |
| B8/9 | Inner left rear parking system distance sensor | 20L |

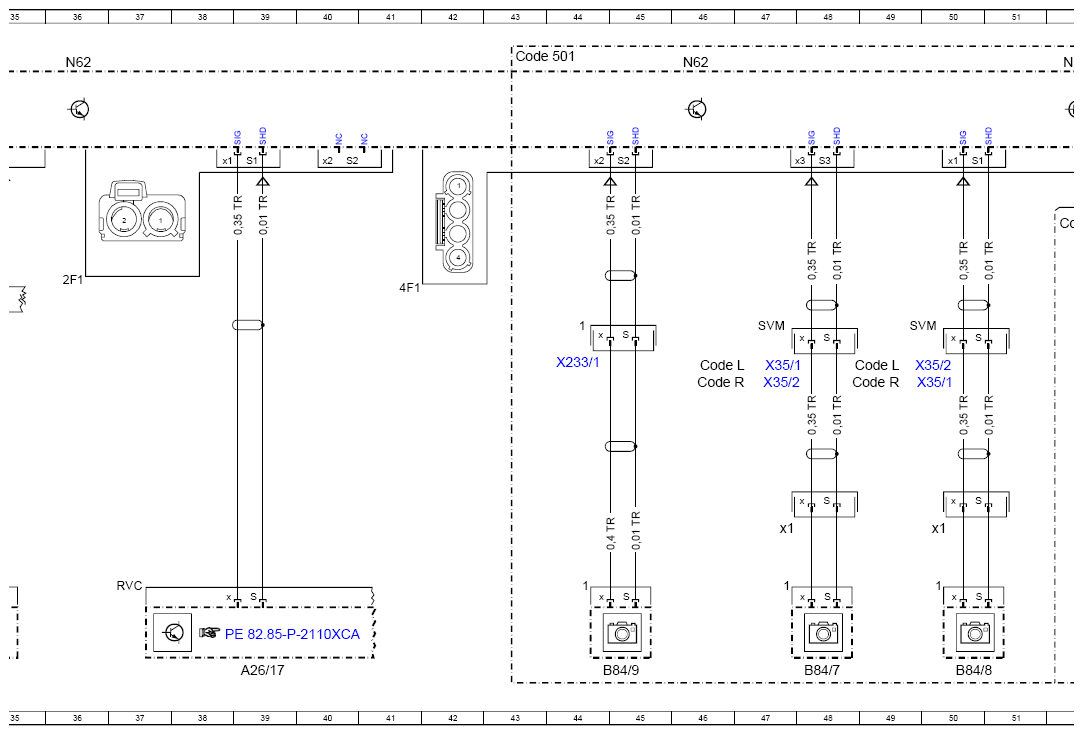

| B84/10 | 360° system reversing camera | 53L |
| B84/10 | 360° system reversing camera | 56L |
| B84/10 | 360° system reversing camera | 59L |
| B84/10 | 360° system reversing camera | 62L |
| B84/10x1 | 360° system reversing camera electrical connector | 53J |
| B84/10x1 | 360° system reversing camera electrical connector | 59J |
| B84/7 | Left outside mirror 360° camera | 48L |
| B84/7x1 | Left outside mirror 360° camera electrical connector | 47J |
| B84/8 | Right outside mirror 360° camera | 50L |
| B84/8x1 | Right outside mirror 360° camera electrical connector | 50J |
| B84/9 | Front end 360° camera | 45L |
| Code 218 | Backup camera | 58A |
| Code 501 | 360° camera | 43A |
| Code F257 | MODEL SERIES 257 | 52D |
| Code F257 | MODEL SERIES 257 | 58D |
| Code F257 | MODEL SERIES 257 | 64D |
| Code F290 | Model series 290 | 54D |
| Code F290 | Model series 290 | 60D |
| Code F290 | Model series 290 | 67D |
| Code L | LEFT-HAND DRIVE | 9K |
| Code L | LEFT-HAND DRIVE | 49F |
| Code L | LEFT-HAND DRIVE | 46F |
| Code R | RIGHT-HAND DRIVE | 9K |
| Code R | RIGHT-HAND DRIVE | 46F |
| Code R | RIGHT-HAND DRIVE | 49F |
| Flex E | Chassis FlexRay | 10J |
| Flex E | Chassis FlexRay | 11J |
| Flex E | Chassis FlexRay | 12J |
| H13/4 | Parking system speaker | 14L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f468 | Fuse 468 | 5L |

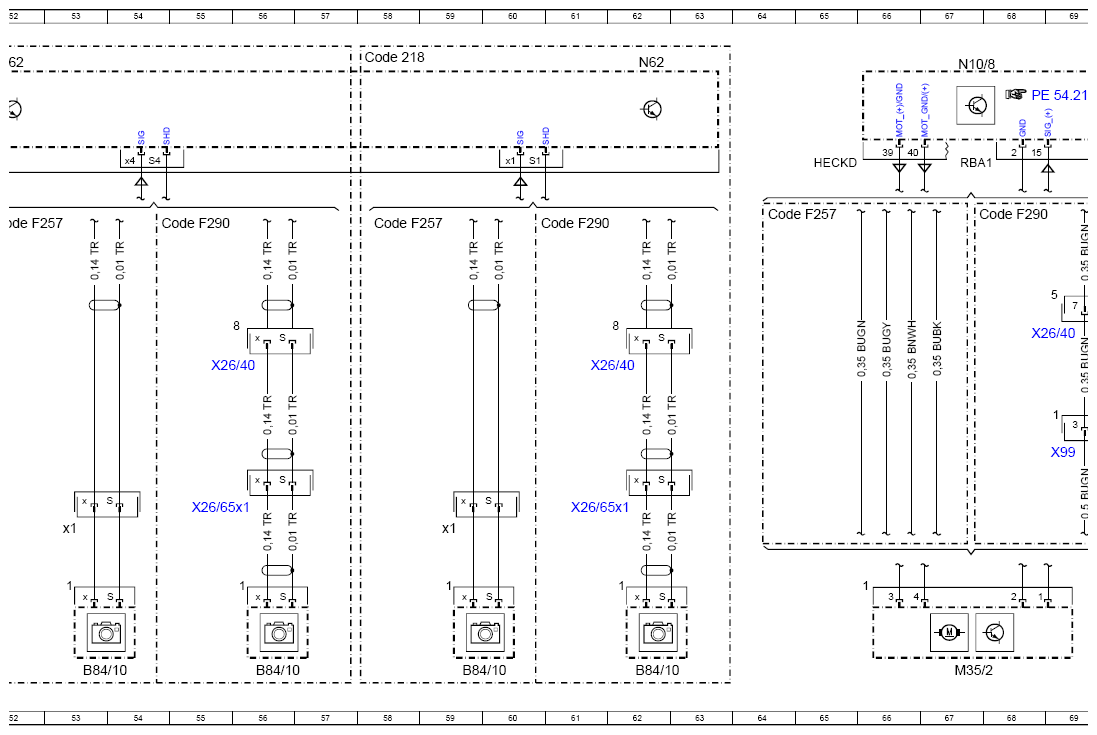

| M35/2 | Rear camera cover motor | 67L |
| N10/8 | Rear SAM control unit | 67A |
| N51/5 | Adaptive damping system control unit | 11K |
| N51/8 | AIR BODY CONTROL Plus control unit | 11L |

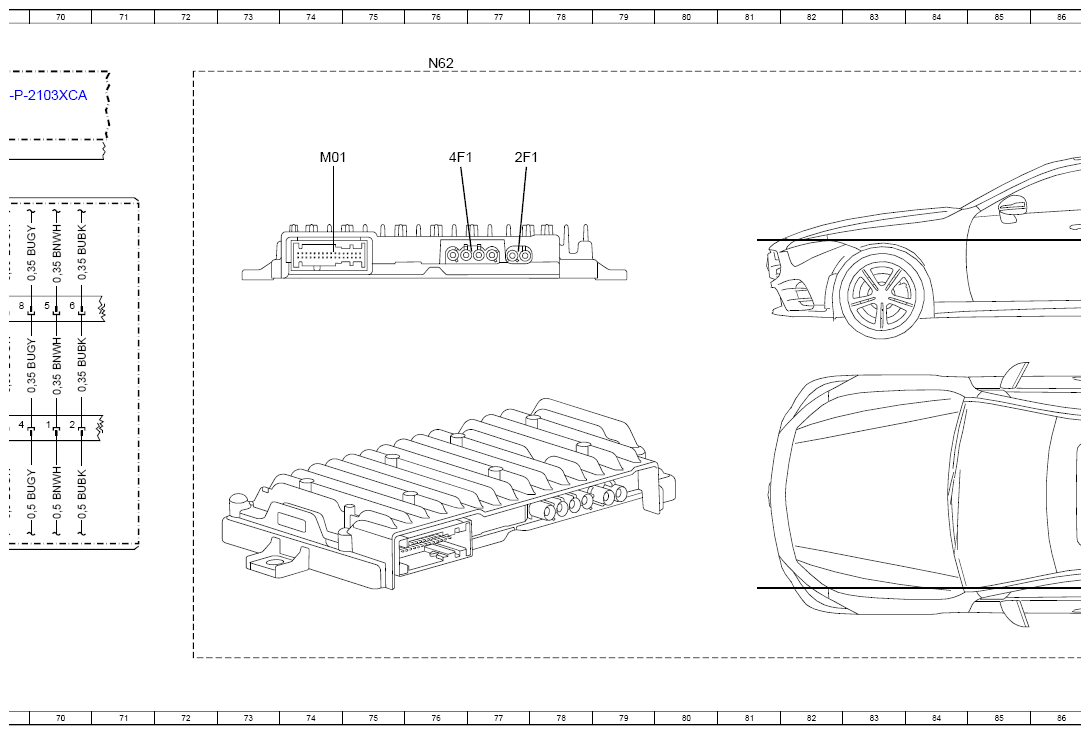

| N62 | Parking system control unit | 5A |
| N62 | Parking system control unit | 13A |
| N62 | Parking system control unit | 20A |
| N62 | Parking system control unit | 28A |
| N62 | Parking system control unit | 36A |
| N62 | Parking system control unit | 46A |
| N62 | Parking system control unit | 52A |
| N62 | Parking system control unit | 62A |
| N62 | Parking system control unit | 76A |
| N62 | Parking system control unit | 90A |
| N62 | Parking system control unit | 11L |
| N62 | Parking system control unit | 12K |
| N73 | Electronic ignition switch control unit | 10K |
| W6 | Left wheel arch trunk ground point | 6G |
| X233/1 | Front end 360° camera electrical connector | 44F |
| X26/38 | Front bumper electrical connector | 26E |
| X26/40 | Rear bumper electrical connector | 16E |
| X26/40 | Rear bumper electrical connector | 56F |
| X26/40 | Rear bumper electrical connector | 62F |
| X26/40 | Rear bumper electrical connector | 69F |
| X26/65x1 | Backup camera electrical connector | 55H |
| X26/65x1 | Backup camera electrical connector | 61H |
| X35/1 | Driver door electrical connector | 47F |
| X35/1 | Driver door electrical connector | 50F |
| X35/2 | Front passenger door electrical connector | 50F |
| X35/2 | Front passenger door electrical connector | 47F |
| X99 | Rear bumper electrical connector | 69G |
| Z36/1z1 | Ground connection connector sleeve | 21G |
| Z36/2z1 | Voltage supply connector sleeve | 19G |
| Z36/3z1 | Ground connection connector sleeve | 31G |
| Z36/4z1 | Voltage supply connector sleeve | 29G |
| Z6/30z3 | Ground connection connector sleeve | 6E |
