Wiring Diagram For Instrument Cluster Control Unit - PE54.30-P-2110-97XCA

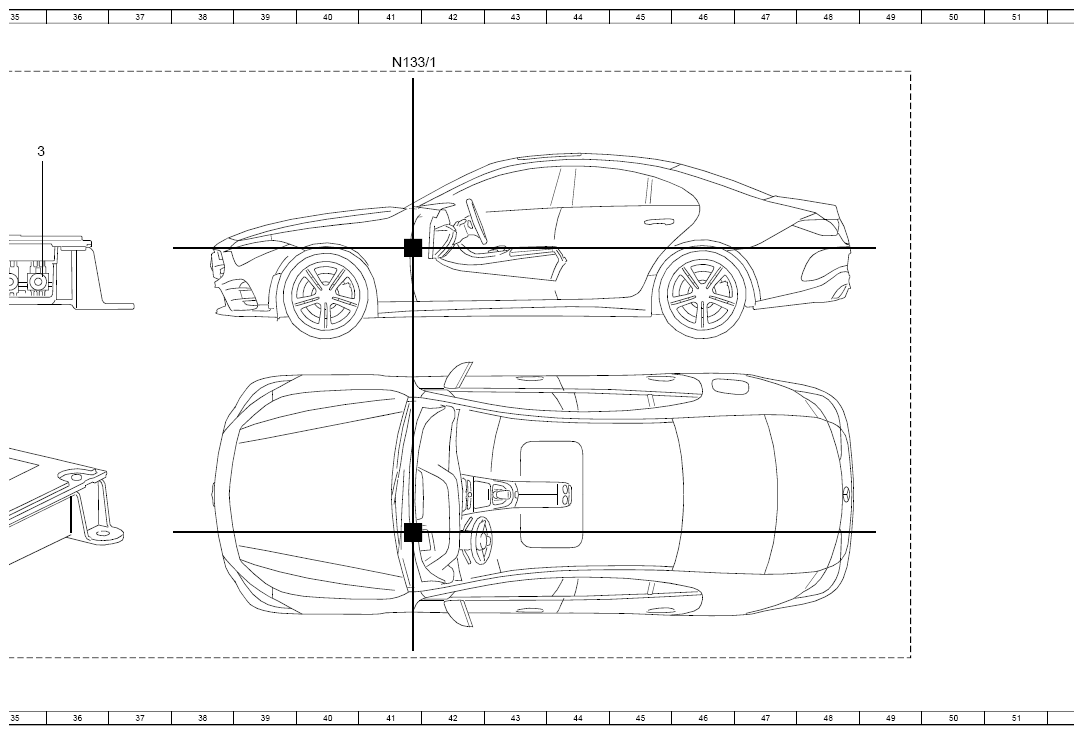

Model 257, 290 as of model year 2021 Control unit N133/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A26/17 | Head unit | 12L |
| A26/17 | Head unit | 18L |
| A40/12 | Head-up display | 26L |
| A40/16 | Head unit/instrument cluster display cluster | 21L |
| CAN HMI2 | User interface CAN 2 | 10K |
| Code 463 | Head-up display | 24E |
| Code F257 | MODEL SERIES 257 | 2K |
| Code F290 | Model series 290 | 2K |
| Code L | LEFT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 4F |
| H4/61 | Instrument cluster speaker | 8L |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f463 | Fuse 463 | 4L |

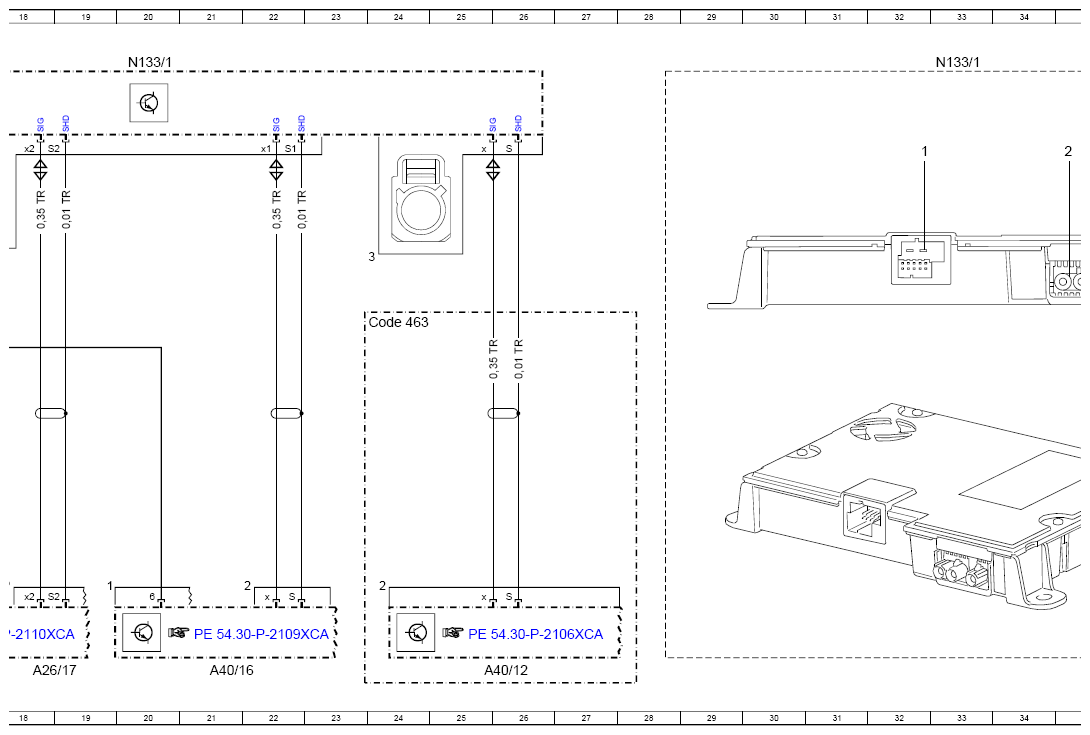

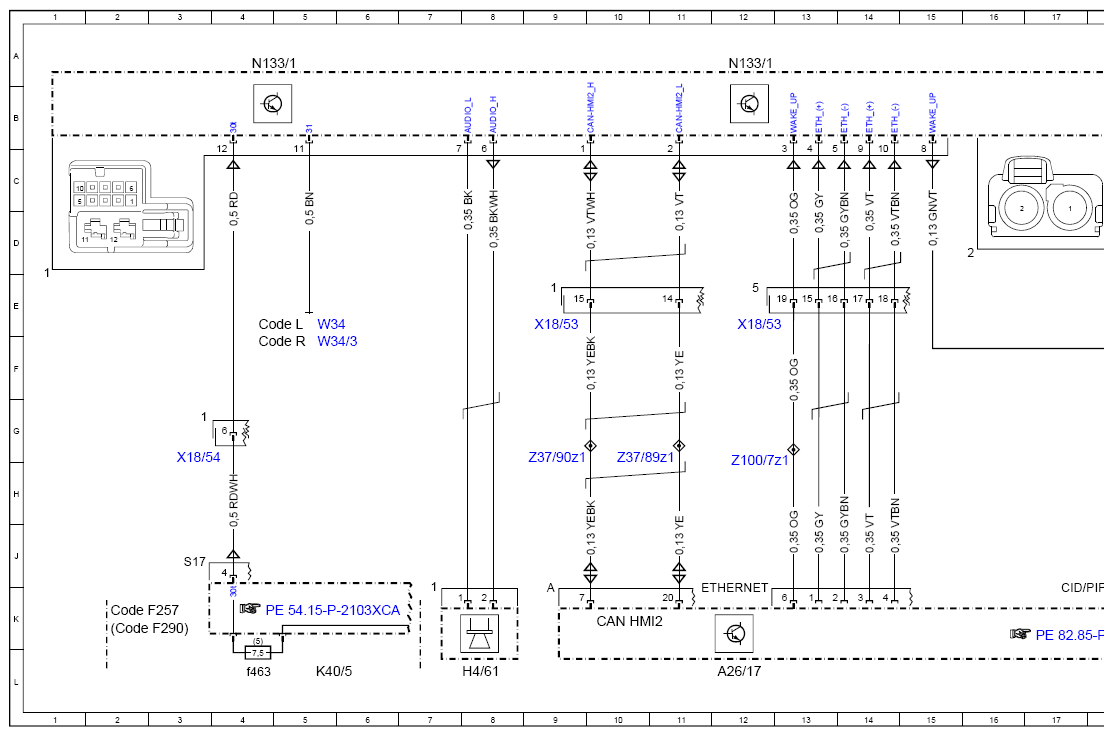

| N133/1 | Instrument cluster control unit | 4A |
| N133/1 | Instrument cluster control unit | 20A |
| N133/1 | Instrument cluster control unit | 12A |
| N133/1 | Instrument cluster control unit | 33A |
| N133/1 | Instrument cluster control unit | 41A |
| W34 | Left footwell ground point | 5E |
| W34/3 | Right footwell ground point | 5F |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 9E |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 12E |
| X18/54 | Passenger side cockpit/frame floor assembly electrical connector | 3H |
| Z100/7z1 | Signal line connector sleeve | 12H |
| Z37/89z1 | CAN end sleeve | 10G |
| Z37/90z1 | CAN end sleeve | 9G |
