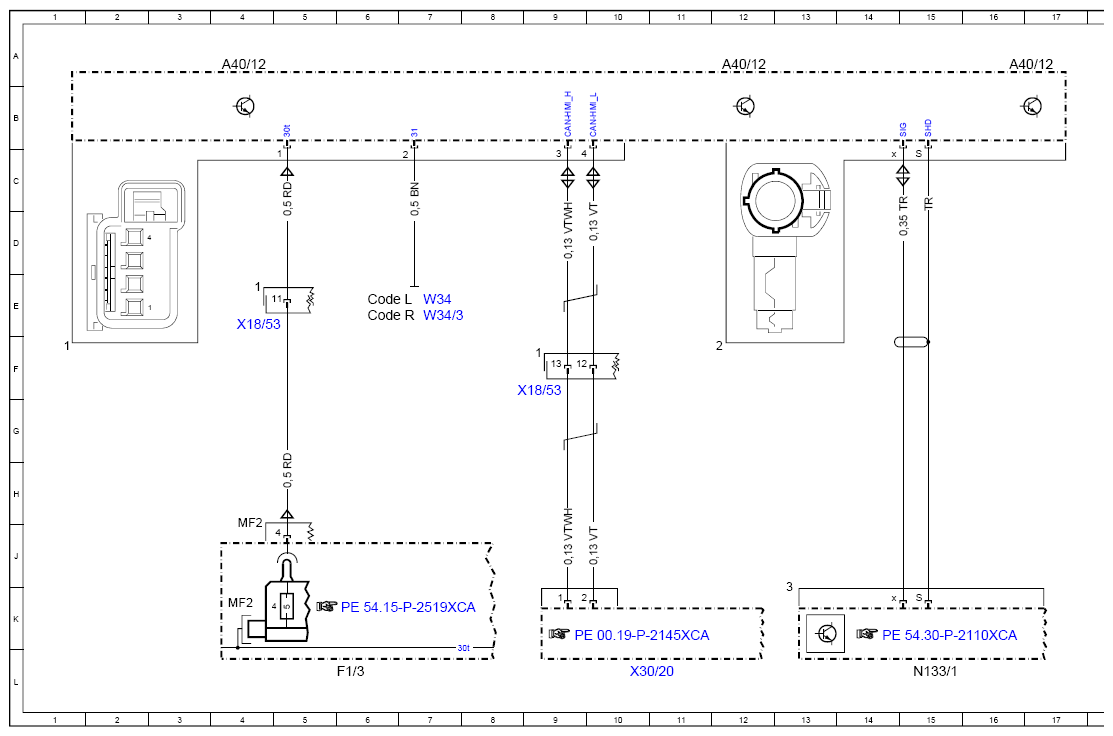

Wiring Diagram For Head-Up Display - PE54.30-P-2106-97XCA
Model 257, 290 as of model year 2021 with code 463 (Head-up display) Display A40/12
| Code: | Designation: | Position: |
|---|---|---|

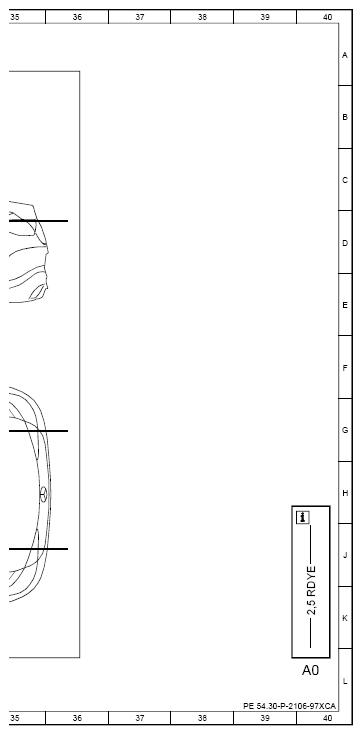

| A0 | Use of wiring diagrams | 40L |
| A40/12 | Head-up display | 20A |
| A40/12 | Head-up display | 4A |
| A40/12 | Head-up display | 12A |
| A40/12 | Head-up display | 29A |
| A40/12 | Head-up display | 16A |

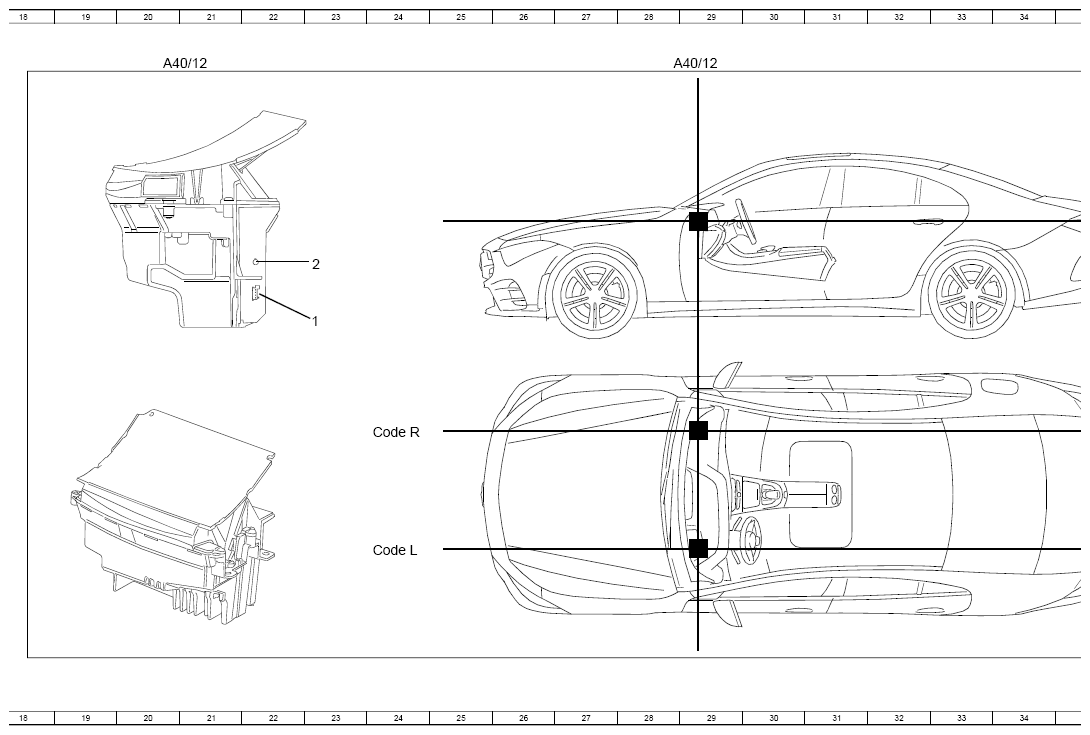

| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 24J |
| Code R | RIGHT-HAND DRIVE | 6E |
| Code R | RIGHT-HAND DRIVE | 24G |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3MF2 | Multiple fuse 2 | 4K |
| N133/1 | Instrument cluster control unit | 15L |
| W34 | Left footwell ground point | 7E |
| W34/3 | Right footwell ground point | 7E |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 9F |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 4E |
| X30/20 | User interface CAN (CAN HMD potential distributor | 10L |
