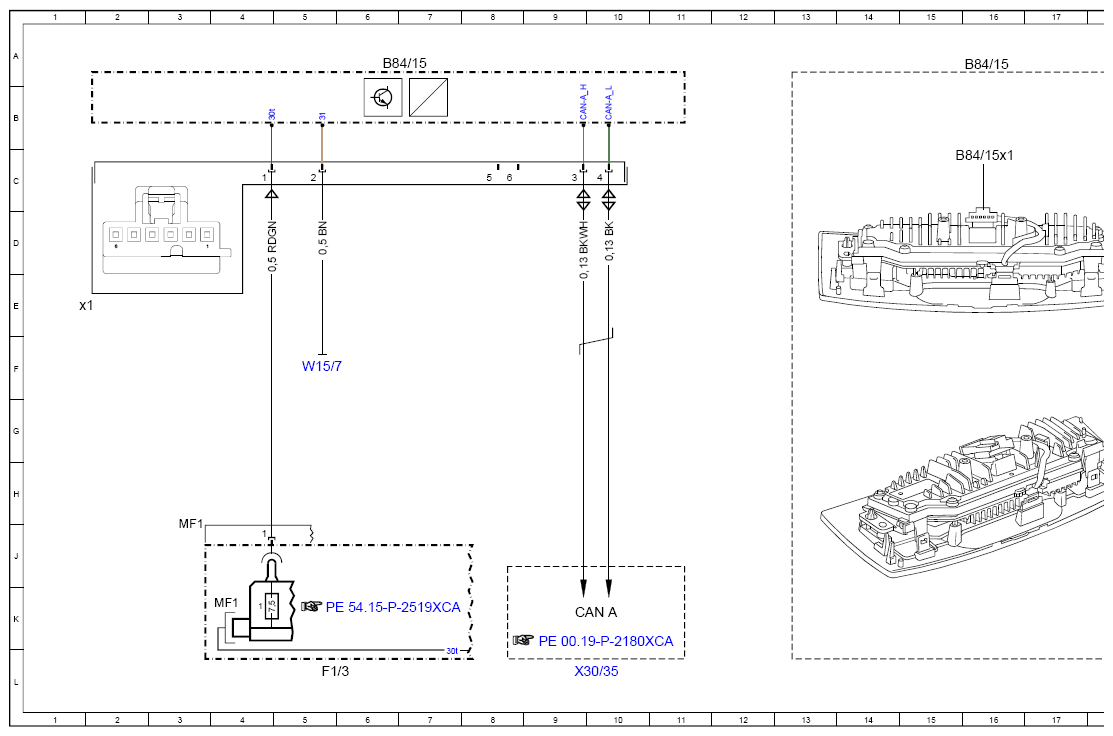

Hand Motion Sensor Wiring Diagram - PE54.21-P-2166-97XCA
Model 257, 290 as of model year 2021 with code 77B (Contactless gesture control at front) Sensor B84/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| B84/15 | Hand motion sensor | 6A |
| B84/15 | Hand motion sensor | 24A |

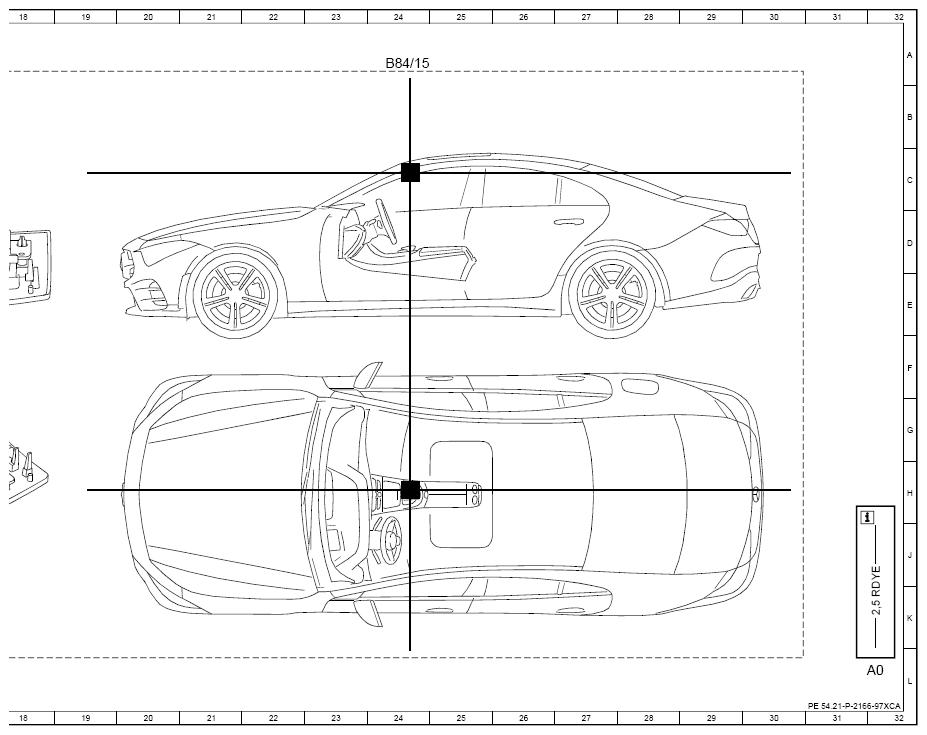

| B84/15 | Hand motion sensor | 16A |
| B84/15x1 | Hand motion sensor electrical connector | 1E |
| CAN A | Telematics CAN | 10K |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF1 | Multiple fuse 1 | 4K |
| W15/7 | Right front footwell ground point | 5F |
| X30/35 | Telematics CAN potential distributor (CAN A) | 9L |
