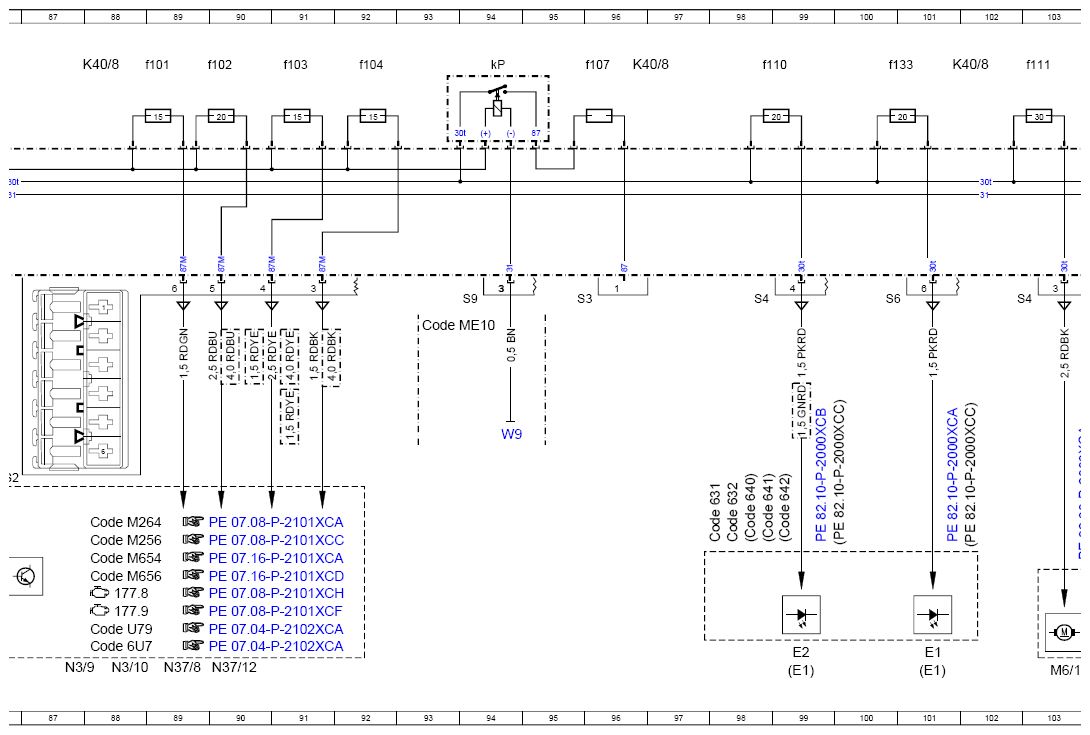

Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-P-2106-97XCA
Model 257, 290 as of model year 2021 Module K40/8
| Code: | Designation: | Position: |
|---|---|---|

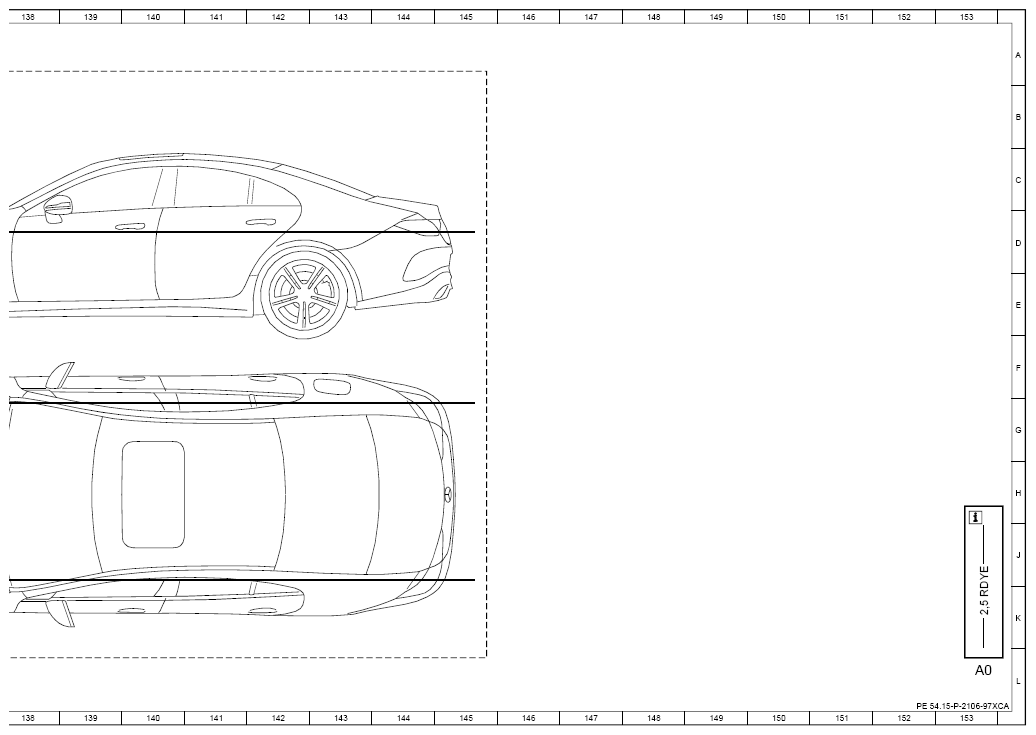

| A0 | Use of wiring diagrams | 153L |
| A9/1 | AIR BODY CONTROL compressor | 80L |
| A9/5 | Electric refrigerant compressor | 107L |
| C8 | Park pawl capacitor | 19L |
| Code 201 | Rear axle steering | 32K |
| Code 466 | Active engine mount | 20J |
| Code 467 | Electronic locking differential | 21J |
| Code 489 | AIR BODY CONTROL | 1E |
| Code 489 | AIR BODY CONTROL | 1F |
| Code 489 | AIR BODY CONTROL | 76J |
| Code 597 | Heated windshield | 108J |
| Code 631 | Static LED headlamp, left-hand traffic | 98J |
| Code 632 | Static LED headlamp, right-hand traffic | 98J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 98J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 99J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 99J |
| Code 6U7 | BlueTEC SCR diesel exhaust gas cleaning generation 4 | 88L |
| Code 9U8 | Control code - Technical development, major assembly | 105J |
| Code B01 | 48V technology | 108J |
| Code B01 | 48V technology | 107J |
| Code B01 | 48V technology | 42H |
| Code F257 | MODEL SERIES 257 | 39J |
| Code F257 | MODEL SERIES 257 | 73A |
| Code F290 | Model series 290 | 39J |
| Code F290 | Model series 290 | 64A |
| Code L | LEFT-HAND DRIVE | 133K |
| Code M005 | 4MATIC | 32J |
| Code M016 | Uprated high-performance engine | 32K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 42L |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 70L |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 70L |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 22K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 32K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 57J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 22J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 27J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 57H |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 88J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 69J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 42L |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 27J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 88J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 45L |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 22K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 22J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 27J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 57H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 57H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 88J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 45L |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 22K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 27K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 57H |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 88J |
| Code ME10 | Hybrid vehicle | 18J |
| Code ME10 | Hybrid vehicle | 55J |
| Code ME10 | Hybrid vehicle | 120J |
| Code ME10 | Hybrid vehicle | 93E |
| Code ME10 | Hybrid vehicle | 109E |
| Code ME10 | Hybrid vehicle | 32J |
| Code R | RIGHT-HAND DRIVE | 133G |
| Code R | RIGHT-HAND DRIVE | 82G |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 88K |
| E1 | Left front lamp unit | 99L |
| E1 | Left front lamp unit | 101L |
| E1 | Left front lamp unit | 101L |
| E2 | Right front lamp unit | 99L |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3f5 | Fuse 5 | 2K |

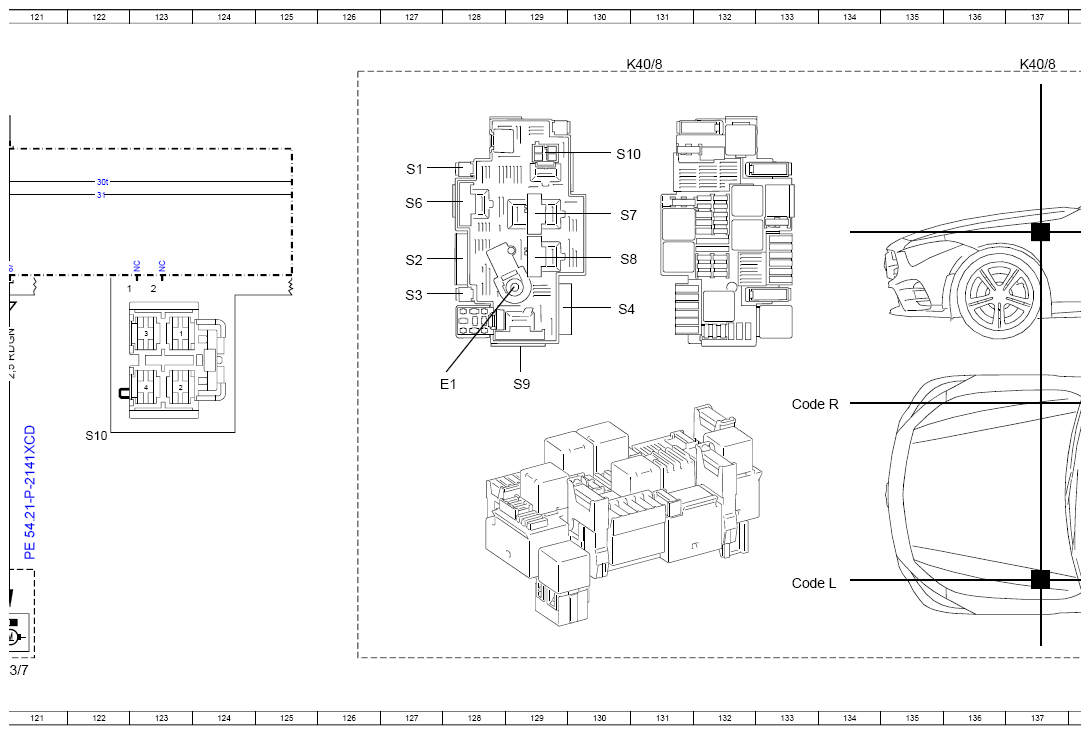

| K40/8 | Engine fuse and relay module | 3A |
| K40/8 | Engine fuse and relay module | 11A |
| K40/8 | Engine fuse and relay module | 18A |
| K40/8 | Engine fuse and relay module | 28A |
| K40/8 | Engine fuse and relay module | 51A |
| K40/8 | Engine fuse and relay module | 69A |
| K40/8 | Engine fuse and relay module | 62A |
| K40/8 | Engine fuse and relay module | 88A |
| K40/8 | Engine fuse and relay module | 110A |
| K40/8 | Engine fuse and relay module | 131A |
| K40/8 | Engine fuse and relay module | 137A |
| K40/8 | Engine fuse and relay module | 75A |
| K40/8 | Engine fuse and relay module | 45A |
| K40/8 | Engine fuse and relay module | 96A |
| K40/8 | Engine fuse and relay module | 102A |
| K40/8 | Engine fuse and relay module | 117A |
| K40/8 | Engine fuse and relay module | 35A |
| K40/8f100 | Fuse 100 | 55A |
| K40/8f101 | Fuse 101 | 89A |
| K40/8f102 | Fuse 102 | 90A |
| K40/8f103 | Fuse 103 | 91A |
| K40/8f104 | Fuse 104 | 92A |
| K40/8f105 | Fuse 105 | 113A |
| K40/8f106 | Fuse 106 | 120A |
| K40/8f107 | Fuse 107 | 96A |
| K40/8f108 | Fuse 108 | 16A |
| K40/8f109 | Fuse 109 | 17A |
| K40/8f110 | Fuse 110 | 98A |
| K40/8f111 | Fuse 111 | 103A |
| K40/8f112 | Fuse 112 | 104A |
| K40/8f113 | Fuse 113 | 48A |
| K40/8f114 | Fuse 114 | 71A |
| K40/8f114 | Fuse 114 | 80A |
| K40/8f115 | Fuse 115 | 116A |
| K40/8f116 | Fuse 116 | 54A |
| K40/8f117 | Fuse 117 | 106A |
| K40/8f118 | Fuse 118 | 63A |
| K40/8f119 | Fuse 119 | 61A |
| K40/8f120 | Fuse 120 | 108A |

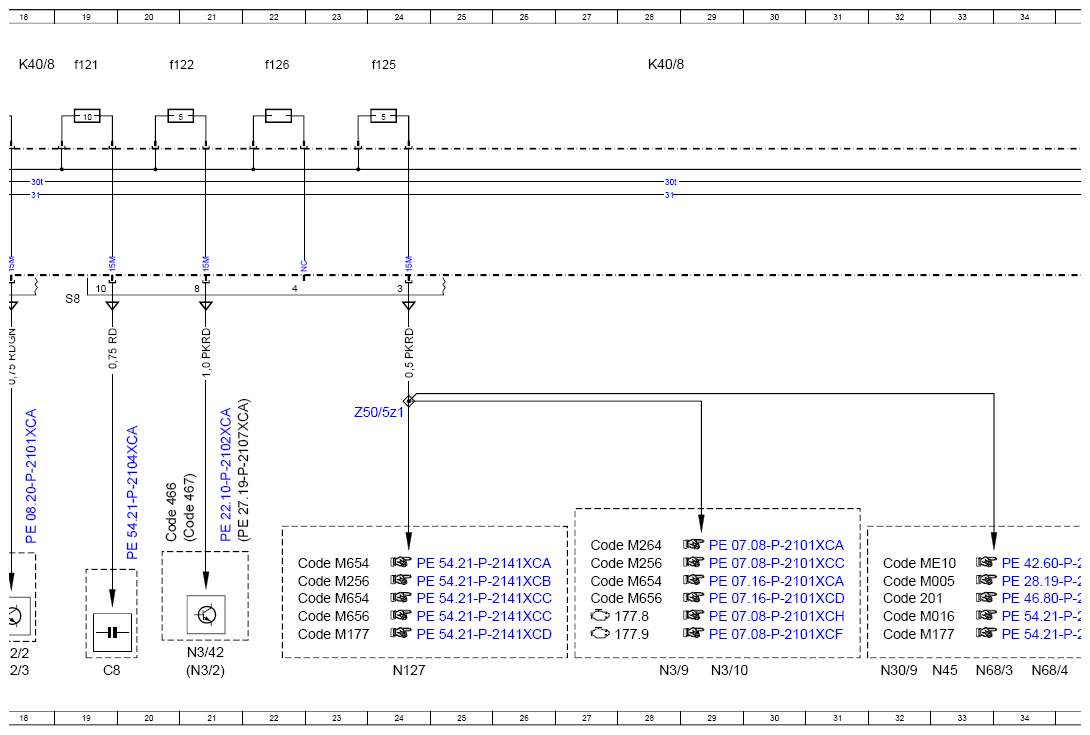

| K40/8f121 | Fuse 121 | 19A |
| K40/8f122 | Fuse 122 | 20A |
| K40/8f123 | Fuse 123 | 14A |
| K40/8f124 | Fuse 124 | 109A |
| K40/8f125 | Fuse 125 | 24A |
| K40/8f126 | Fuse 126 | 22A |
| K40/8f127 | Fuse 127 | 49A |
| K40/8f128 | Fuse 128 | 37A |
| K40/8f129 | Fuse 129 | 39A |
| K40/8f130 | Fuse 130 | 40A |
| K40/8f132 | Fuse 132 | 78A |
| K40/8f132 | Fuse 132 | 68A |
| K40/8f133 | Fuse 133 | 100A |

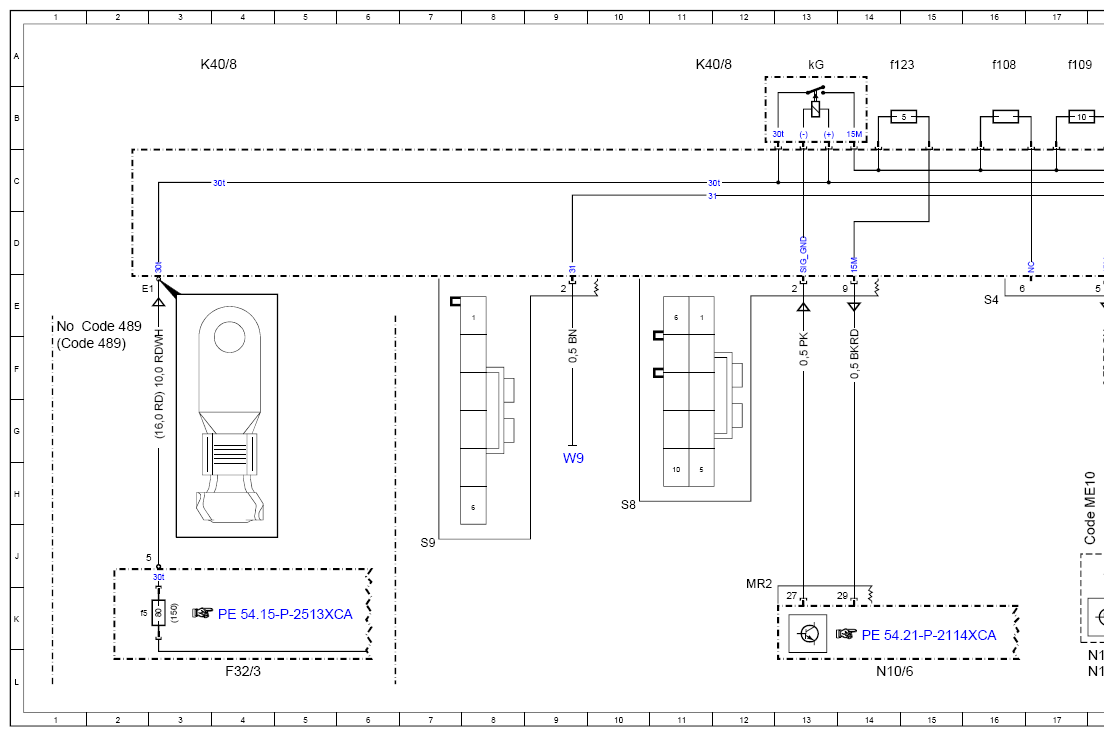

| K40/8kG | Engine compartment terminal 15 relay | 13A |

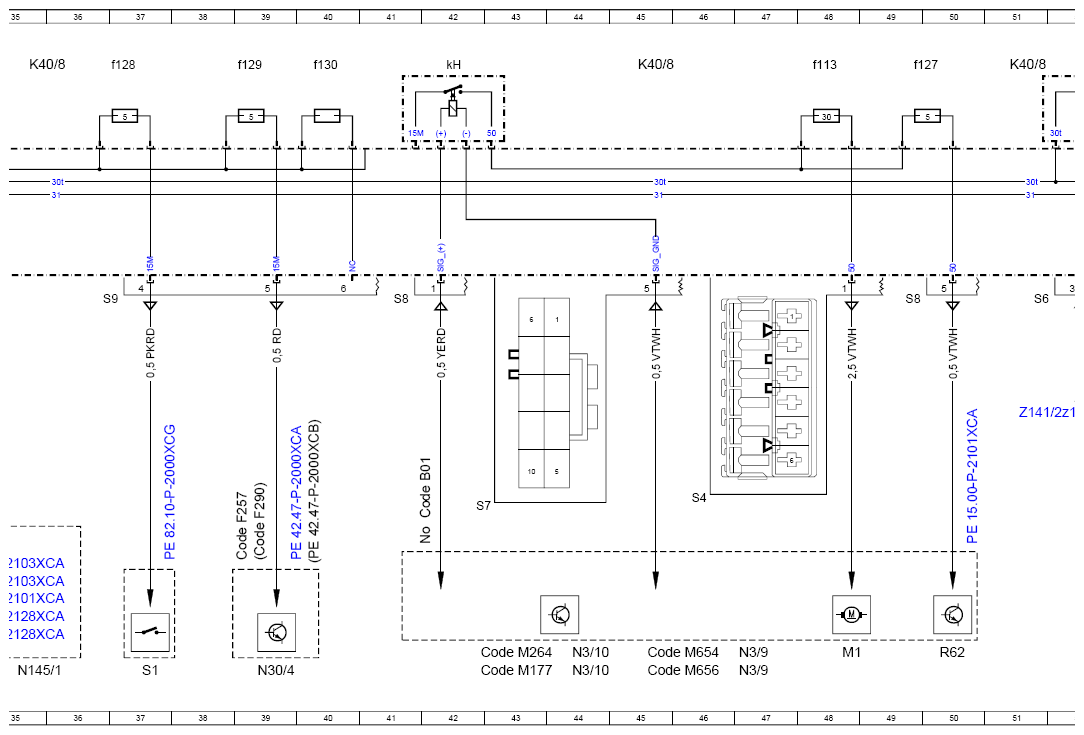

| K40/8kH | Starter circuit 50 relay | 42A |

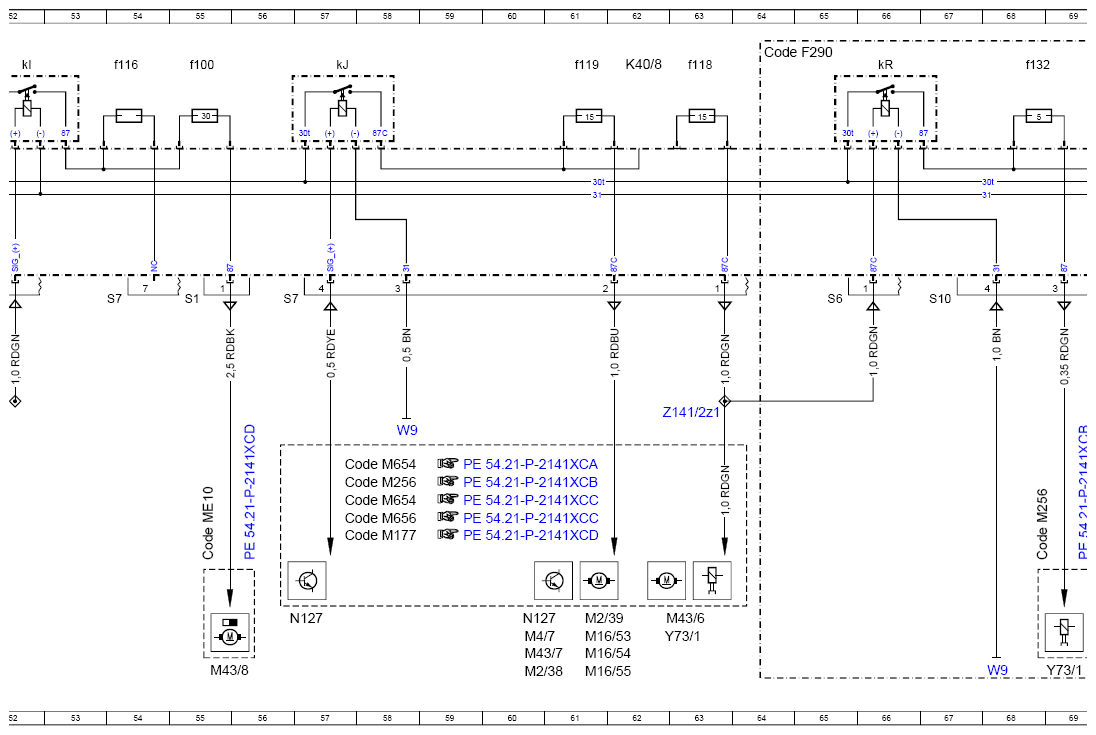

| K40/8kI | Backup relay | 52A |
| K40/8kJ | CPC relay | 57A |

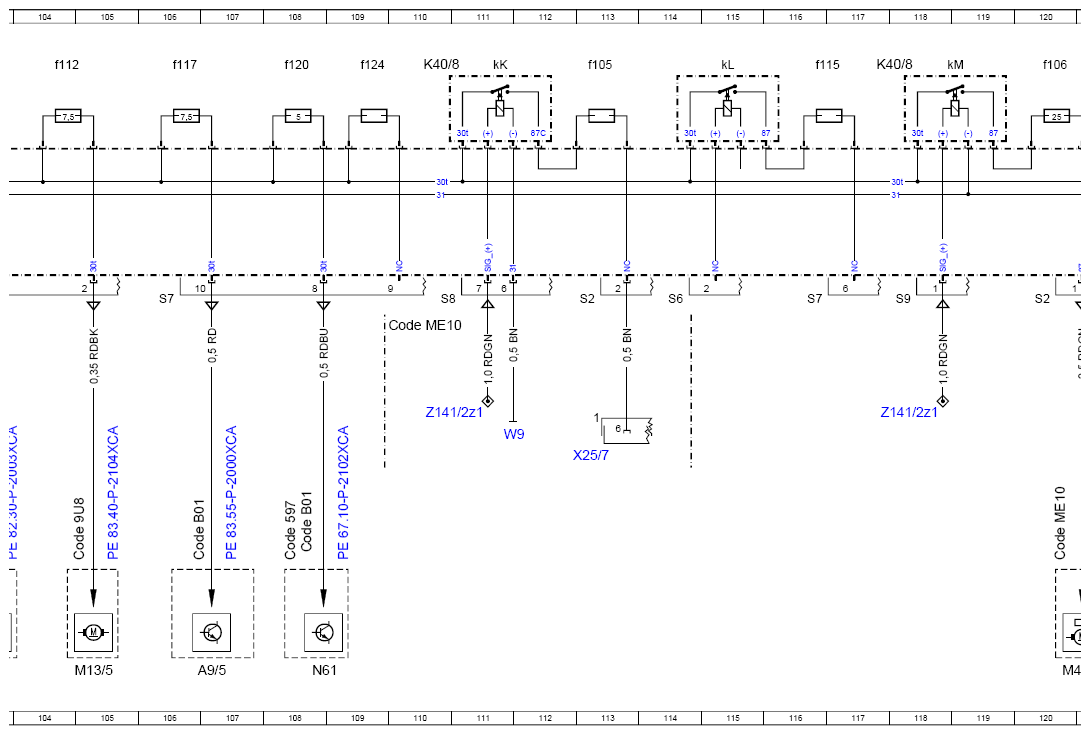

| K40/8kK | Backup relay | 111A |
| K40/8kL | Backup relay | 115A |
| K40/8kM | Backup relay | 118A |
| K40/8kN | Circuit 87M relay | 85A |
| K40/8kP | Backup relay | 94A |

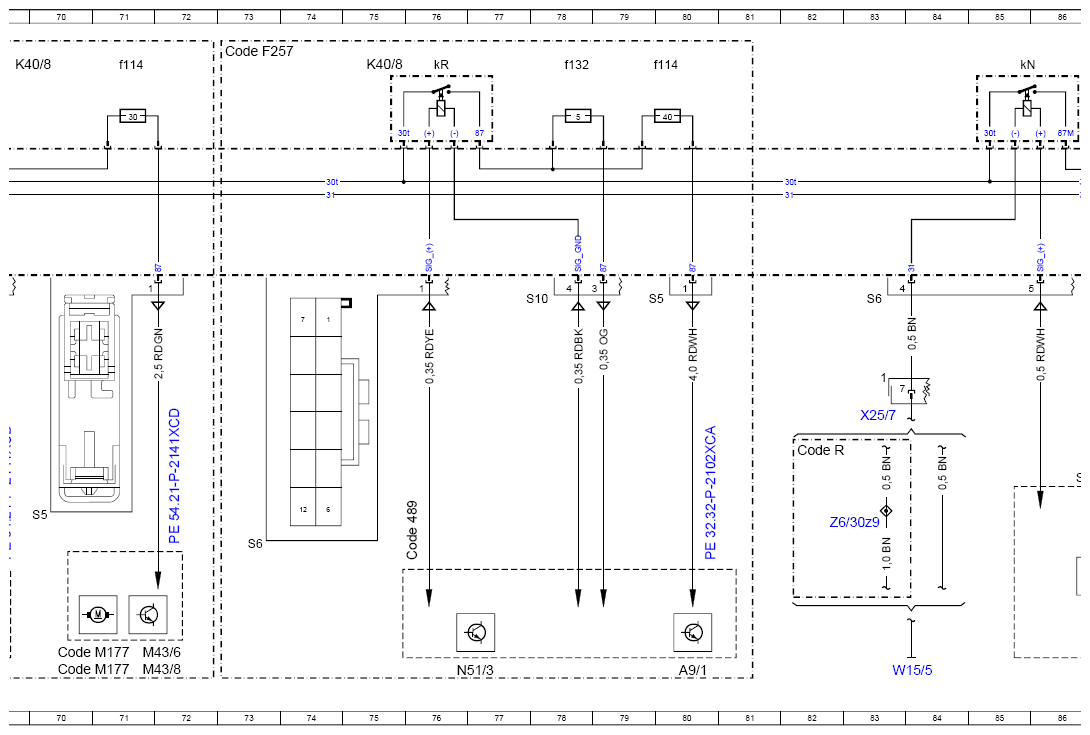

| K40/8kR | Relay R | 66A |
| K40/8kR | Relay R | 76A |
| M1 | Starter | 48L |
| M13/5 | Coolant circulation pump | 105L |
| M16/53 | Left exhaust flap actuator motor | 61K |
| M16/54 | Right exhaust flap actuator motor | 61L |
| M16/55 | Center exhaust flap actuator motor | 61L |
| M2/38 | Upper radiator trim flap actuator motor | 60L |
| M2/39 | Lower radiator trim flap actuator motor | 61K |
| M4/7 | Fan motor | 60K |
| M43/6 | Low temperature circuit circulation pump 1 | 63K |
| M43/6 | Low temperature circuit circulation pump 1 | 71L |
| M43/7 | Low temperature circuit circulation pump 2 | 60L |
| M43/7 | Low temperature circuit circulation pump 2 | 120L |
| M43/8 | Low-temperature circuit circulation pump 3 | 71L |
| M43/8 | Low-temperature circuit circulation pump 3 | 55L |
| M6/1 | Wiper motor | 103L |
| N10/6 | Front SAM control unit | 14L |
| N12/2 | Electric drive front sound generator control unit | 18L |
| N12/3 | Electric drive rear sound generator control unit | 18L |
| N127 | Drivetrain control unit | 57K |
| N127 | Drivetrain control unit | 60K |
| N127 | Drivetrain control unit | 24L |
| N145/1 | Drive unit control unit | 35L |
| N3/10 | ME-SFI [ME] control unit | 44L |
| N3/10 | ME-SFI [ME] control unit | 44L |
| N3/10 | ME-SFI [ME] control unit | 88L |
| N3/10 | ME-SFI [ME] control unit | 29L |
| N3/2 | Electric differential lock control unit | 21L |
| N3/42 | Active engine mounts control unit | 21L |
| N3/9 | CDI control unit | 47L |
| N3/9 | CDI control unit | 47L |
| N3/9 | CDI control unit | 87L |
| N3/9 | CDI control unit | 28L |
| N30/4 | Electronic Stability Program control unit | 39L |
| N30/9 | Electric brake booster control unit | 32L |
| N37/12 | Control unit of NOx sensor upstream of diesel oxidation catalytic converter | 90L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 89L |
| N45 | All-wheel drive control unit | 33L |
| N51/3 | AIR BODY CONTROL control unit | 76L |
| N61 | Windshield heater control unit | 108L |
| N68/3 | Left rear axle steering control unit | 33L |
| N68/4 | Right rear axle steering control unit | 34L |
| R62 | Voltage dip limiter | 50L |
| S1 | Exterior lights switch | 37L |
| W15/5 | Left front footwell ground point | 83L |
| W9 | Left front ground point (at lamp unit) | 58G |
| W9 | Left front ground point (at lamp unit) | 9H |
| W9 | Left front ground point (at lamp unit) | 68L |
| W9 | Left front ground point (at lamp unit) | 94G |
| W9 | Left front ground point (at lamp unit) | 111G |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 83G |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 113G |
| Y73/1 | Low-temperature circuit switchover valve | 62K |
| Y73/1 | Low-temperature circuit switchover valve | 69L |
| Z141/2z1 | Circuit 87C connector sleeve | 63G |
| Z141/2z1 | Circuit 87C connector sleeve | 52G |
| Z141/2z1 | Circuit 87C connector sleeve | 118G |
| Z141/2z1 | Circuit 87C connector sleeve | 111G |
| Z50/5z1 | Circuit 15M connector sleeve | 24G |
| Z6/30z9 | Circuit 31 connector sleeve | 83J |
