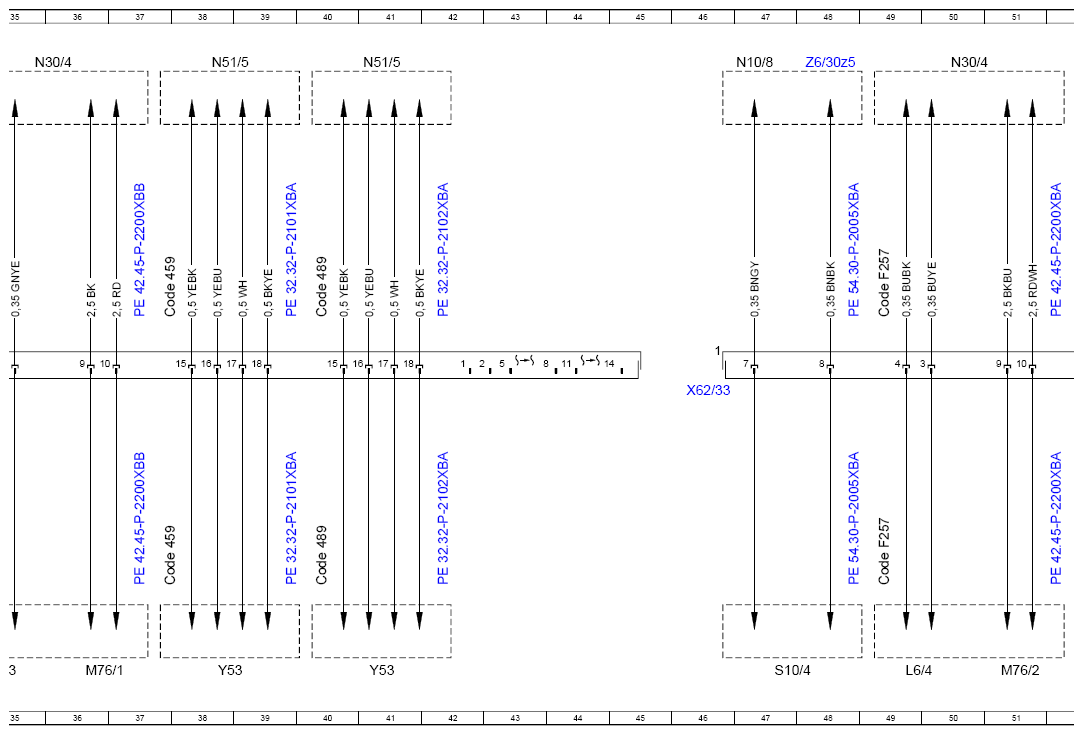

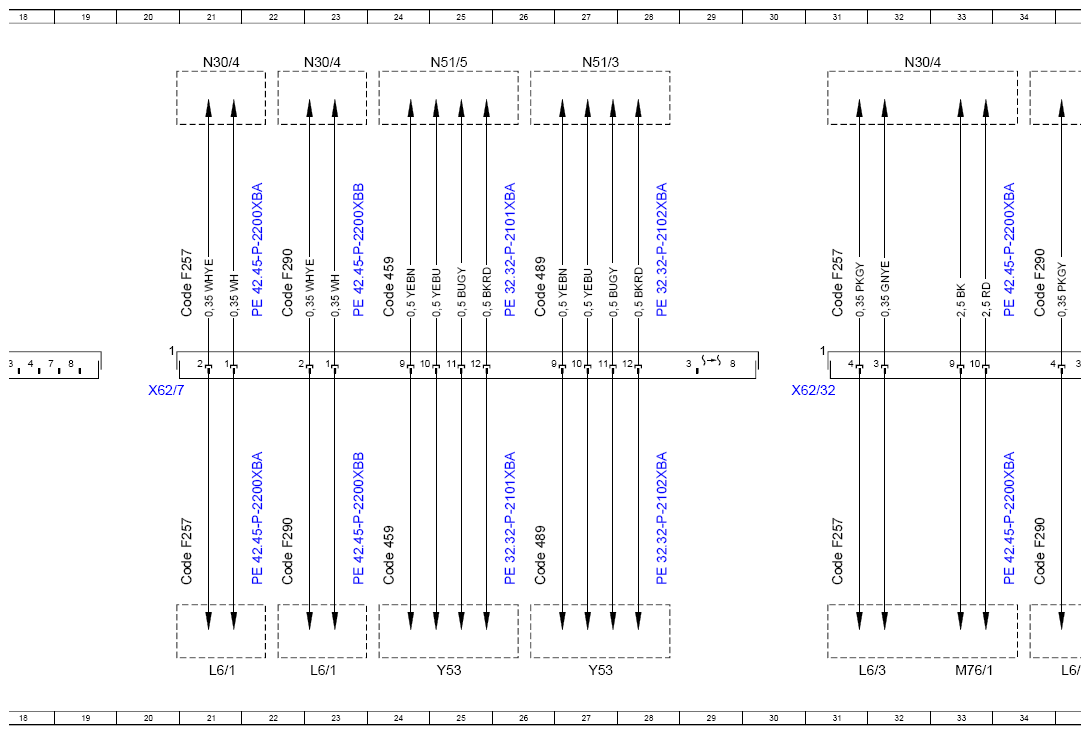

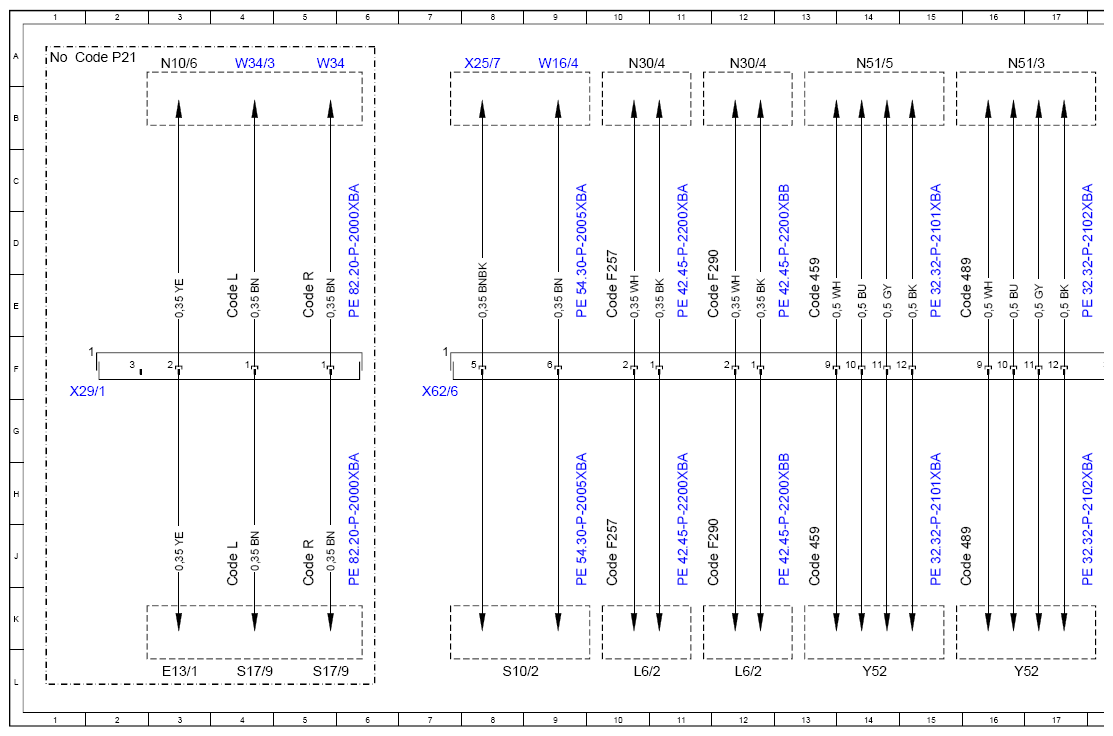

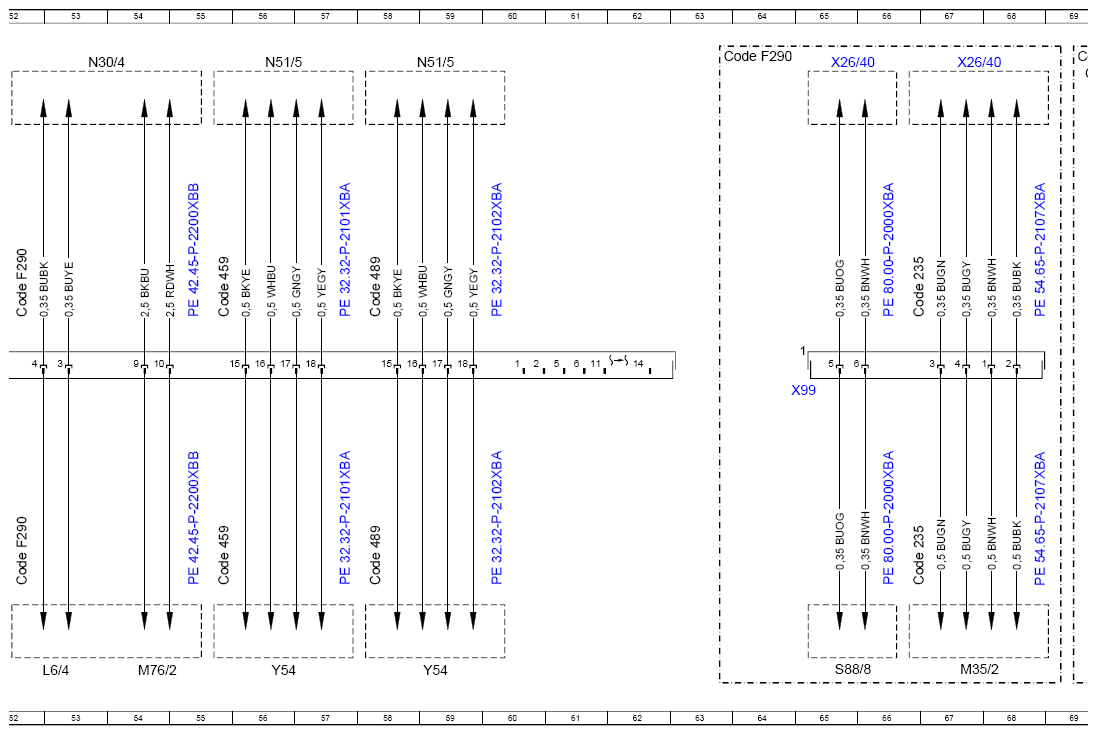

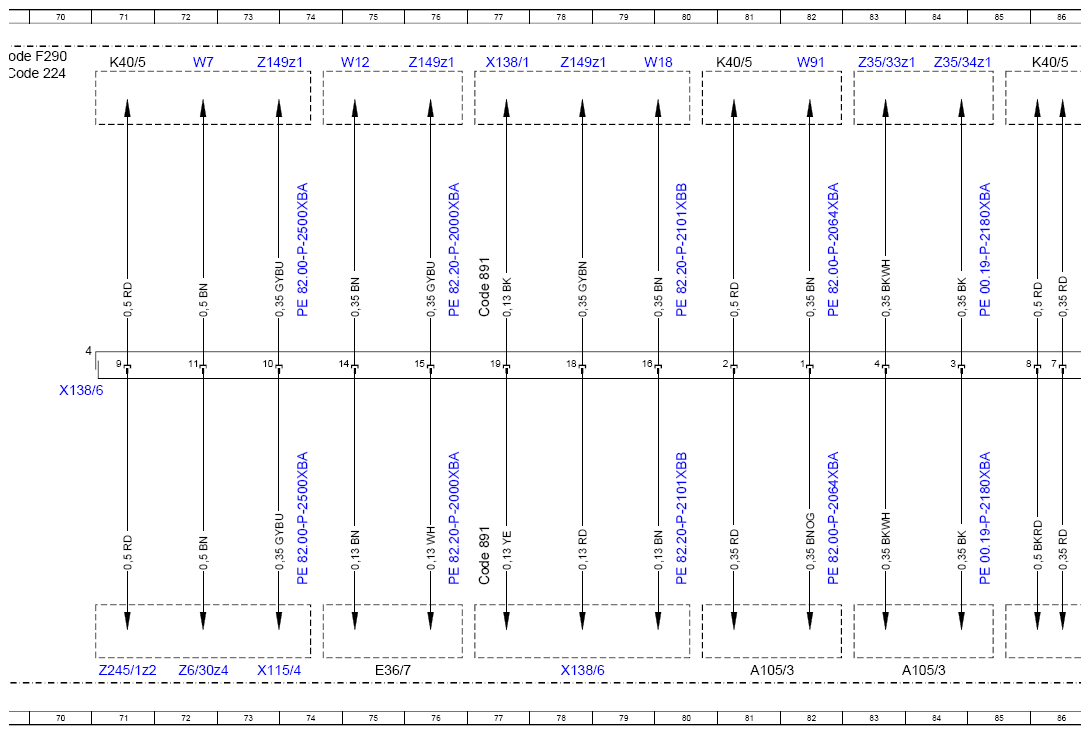

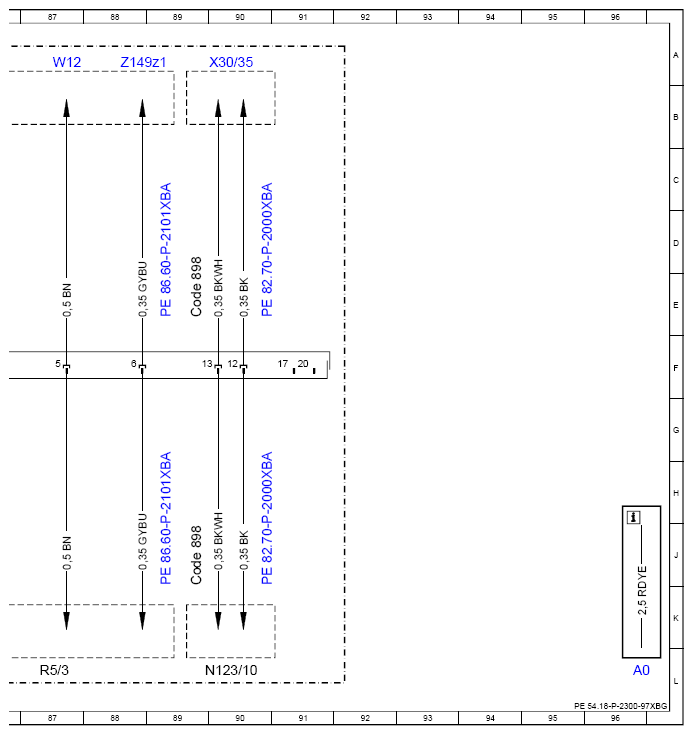

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBG
Model 257, 290 up to model year 2021 X29/1, X62/6, X62/7, X62/32, X62/33
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A105/3 | Touchscreen | 81L |
| A105/3 | Touchscreen | 84L |
| Code 224 | Design rear individual seats | 69A |
| Code 235 | Park-Pilot with PARKTRONIC | 67J |
| Code 235 | Park-Pilot with PARKTRONIC | 67E |
| Code 459 | Steel suspension with adjustable damping | 13J |
| Code 459 | Steel suspension with adjustable damping | 13E |
| Code 459 | Steel suspension with adjustable damping | 24J |
| Code 459 | Steel suspension with adjustable damping | 24E |
| Code 459 | Steel suspension with adjustable damping | 38J |
| Code 459 | Steel suspension with adjustable damping | 38E |
| Code 459 | Steel suspension with adjustable damping | 55J |
| Code 459 | Steel suspension with adjustable damping | 55E |
| Code 489 | AIR BODY CONTROL | 16J |
| Code 489 | AIR BODY CONTROL | 16E |
| Code 489 | AIR BODY CONTROL | 26J |
| Code 489 | AIR BODY CONTROL | 26E |
| Code 489 | AIR BODY CONTROL | 40J |
| Code 489 | AIR BODY CONTROL | 40E |
| Code 489 | AIR BODY CONTROL | 58J |
| Code 489 | AIR BODY CONTROL | 58E |
| Code 891 | Premium ambient lighting | 77J |
| Code 891 | Premium ambient lighting | 77E |
| Code 898 | Wireless charging in rear passenger compartment | 89E |
| Code 898 | Wireless charging in rear passenger compartment | 89J |
| Code F257 | MODEL SERIES 257 | 10J |
| Code F257 | MODEL SERIES 257 | 10E |
| Code F257 | MODEL SERIES 257 | 21J |
| Code F257 | MODEL SERIES 257 | 21E |
| Code F257 | MODEL SERIES 257 | 31J |
| Code F257 | MODEL SERIES 257 | 31E |
| Code F257 | MODEL SERIES 257 | 49J |
| Code F257 | MODEL SERIES 257 | 49E |
| Code F290 | Model series 290 | 12J |
| Code F290 | Model series 290 | 12E |
| Code F290 | Model series 290 | 22J |
| Code F290 | Model series 290 | 22E |
| Code F290 | Model series 290 | 34J |
| Code F290 | Model series 290 | 34E |
| Code F290 | Model series 290 | 52J |
| Code F290 | Model series 290 | 52E |
| Code F290 | Model series 290 | 63A |
| Code F290 | Model series 290 | 69A |
| Code L | LEFT-HAND DRIVE | 4J |
| Code L | LEFT-HAND DRIVE | 4E |
| Code P21 | Air quality package | 1A |
| Code R | RIGHT-HAND DRIVE | 5J |
| Code R | RIGHT-HAND DRIVE | 5E |
| E13/1 | Glove box lamp | 3L |
| E36/7 | Rear passenger compartment center console armrest stowage | 75L |
| K40/5 | Rear fuse and relay module | 71A |
| K40/5 | Rear fuse and relay module | 81A |
| K40/5 | Rear fuse and relay module | 86A |
| L6/1 | Left front axle rpm sensor | 21L |
| L6/1 | Left front axle rpm sensor | 23L |
| L6/2 | Right front axle rpm sensor | 10L |
| L6/2 | Right front axle rpm sensor | 12L |
| L6/3 | Left rear axle rpm sensor | 31L |
| L6/3 | Left rear axle rpm sensor | 35L |
| L6/4 | Right rear axle rpm sensor | 49L |
| L6/4 | Right rear axle rpm sensor | 53L |
| M35/2 | Rear camera cover motor | 67L |
| M76/1 | Left electric parking brake actuator motor | 33L |
| M76/1 | Left electric parking brake actuator motor | 36L |
| M76/2 | Right electric parking brake actuator motor | 51L |
| M76/2 | Right electric parking brake actuator motor | 54L |
| N10/6 | Front SAM control unit | 3A |
| N10/8 | Rear SAM control unit | 47A |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 90L |
| N30/4 | Electronic Stability Program control unit | 10A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 21A |
| N30/4 | Electronic Stability Program control unit | 23A |
| N30/4 | Electronic Stability Program control unit | 32A |
| N30/4 | Electronic Stability Program control unit | 35A |
| N30/4 | Electronic Stability Program control unit | 50A |
| N30/4 | Electronic Stability Program control unit | 53A |
| N51/3 | AIR BODY CONTROL control unit | 16A |
| N51/3 | AIR BODY CONTROL control unit | 27A |
| N51/5 | Adaptive damping system control unit | 14A |
| N51/5 | Adaptive damping system control unit | 25A |
| N51/5 | Adaptive damping system control unit | 38A |
| N51/5 | Adaptive damping system control unit | 41A |
| N51/5 | Adaptive damping system control unit | 59A |
| N51/5 | Adaptive damping system control unit | 56A |
| R5/3 | Rear cup holder | 87L |
| S10/2 | Right front brake wear sensor | 8L |
| S10/4 | Right rear brake wear sensor | 47L |
| S17/9 | Glove box lamp switch | 4L |
| S17/9 | Glove box lamp switch | 5L |
| S88/8 | Trunk lid/liftgate external operation switch | 65L |
| W12 | Left center console ground point | 87A |
| W12 | Left center console ground point | 75A |
| W16/4 | Right major assembly compartment ground point | 9A |
| W18 | Left front seat crossmember ground point | 79A |
| W34 | Left footwell ground point | 5A |
| W34/3 | Right footwell ground point | 4A |
| W7 | Right wheelhouse trunk ground point | 72A |
| W91 | Electromagnetic compatibility ground point (touchpad) | 82A |
| X115/4 | Right rear passenger compartment USB port | 73L |
| X138/1 | Front center console electrical connector | 77A |
| X138/6 | Rear center console electrical connector | 70F |
| X138/6 | Rear center console electrical connector | 78L |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 8A |
| X26/40 | Rear bumper electrical connector | 65A |
| X26/40 | Rear bumper electrical connector | 67A |
| X29/1 | Glove compartment electrical connector | 2F |
| X30/35 | Telematics CAN potential distributor (CAN A) | 90A |
| X62/32 | Rear axle electrical connector, left distributor | 31F |
| X62/33 | Rear axle electrical connector, right distributor | 46F |
| X62/6 | Front axle electrical connector, right distributor | 7F |
| X62/7 | Front axle electrical connector, left distributor | 20F |
| X99 | Rear bumper electrical connector | 65F |
| Y52 | Right front axle damping valve unit | 14L |
| Y52 | Right front axle damping valve unit | 16L |
| Y53 | Left rear axle damping valve unit | 27L |
| Y53 | Left rear axle damping valve unit | 25L |
| Y53 | Left rear axle damping valve unit | 38L |
| Y53 | Left rear axle damping valve unit | 41L |
| Y54 | Right rear axle damping valve unit | 59L |
| Y54 | Right rear axle damping valve unit | 56L |
| Z149z1 | Voltage supply connector sleeve | 88A |
| Z149z1 | Voltage supply connector sleeve | 73A |
| Z149z1 | Voltage supply connector sleeve | 76A |
| Z149z1 | Voltage supply connector sleeve | 78A |
| Z245/1z2 | Terminal 30t connector sleeve | 71L |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 83A |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 84A |
| Z6/30z4 | Ground connection connector sleeve | 72L |
| Z6/30z5 | Ground connection connector sleeve | 48A |
