Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBF

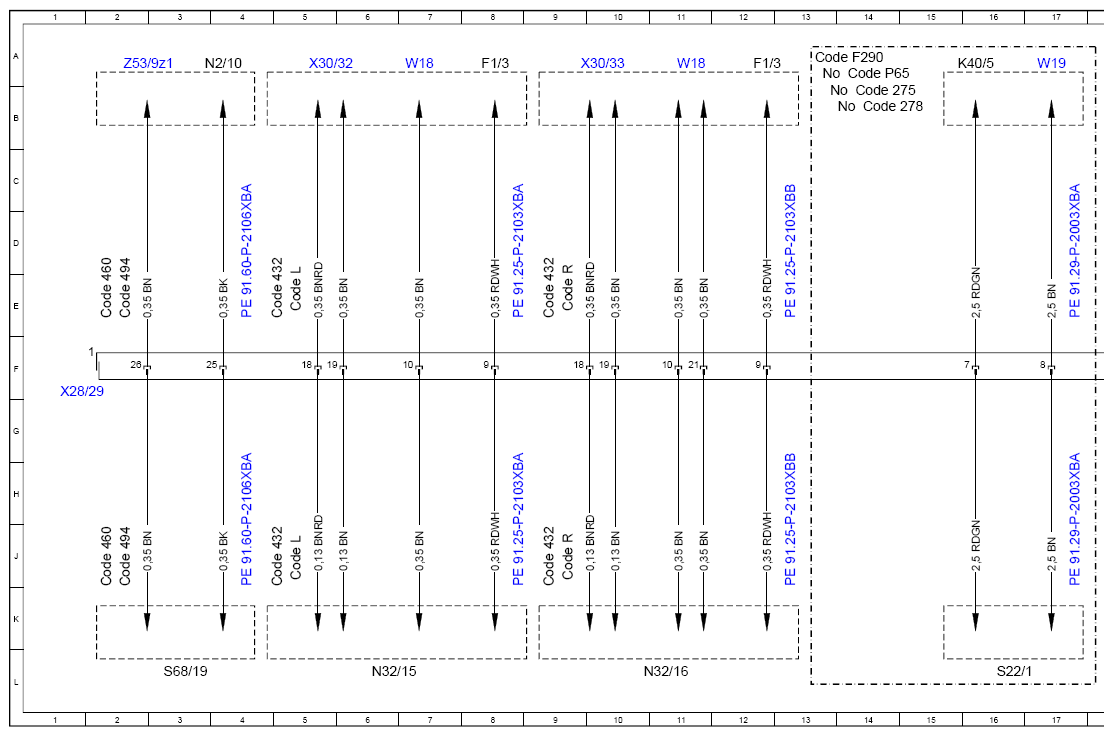

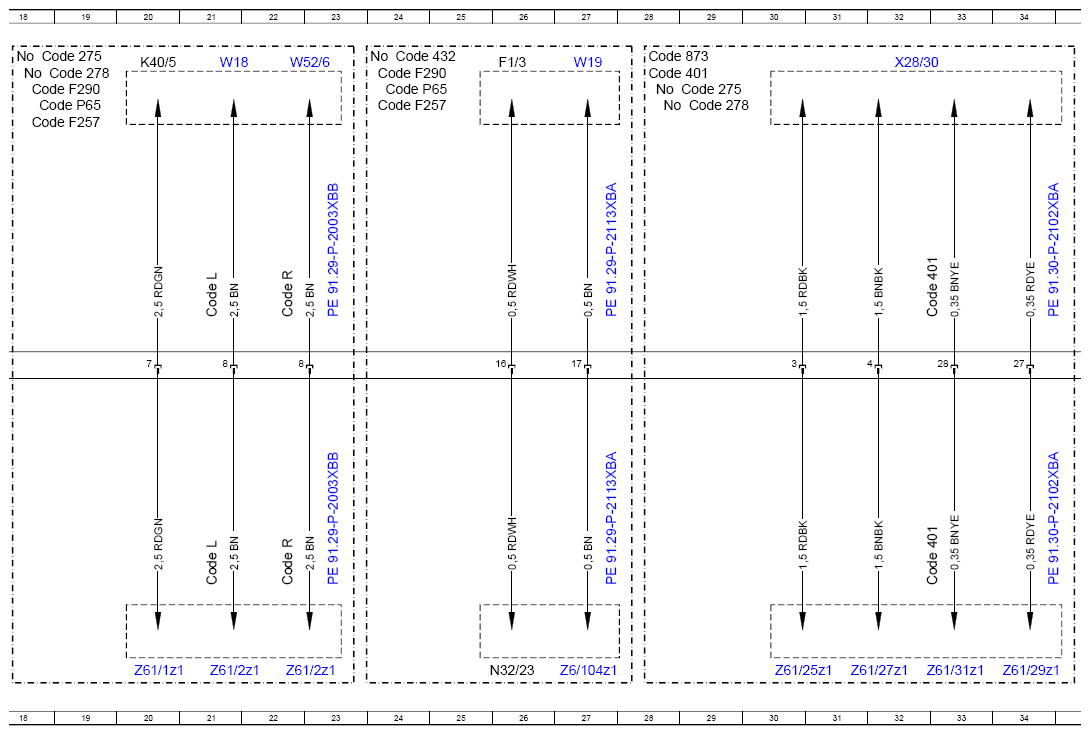

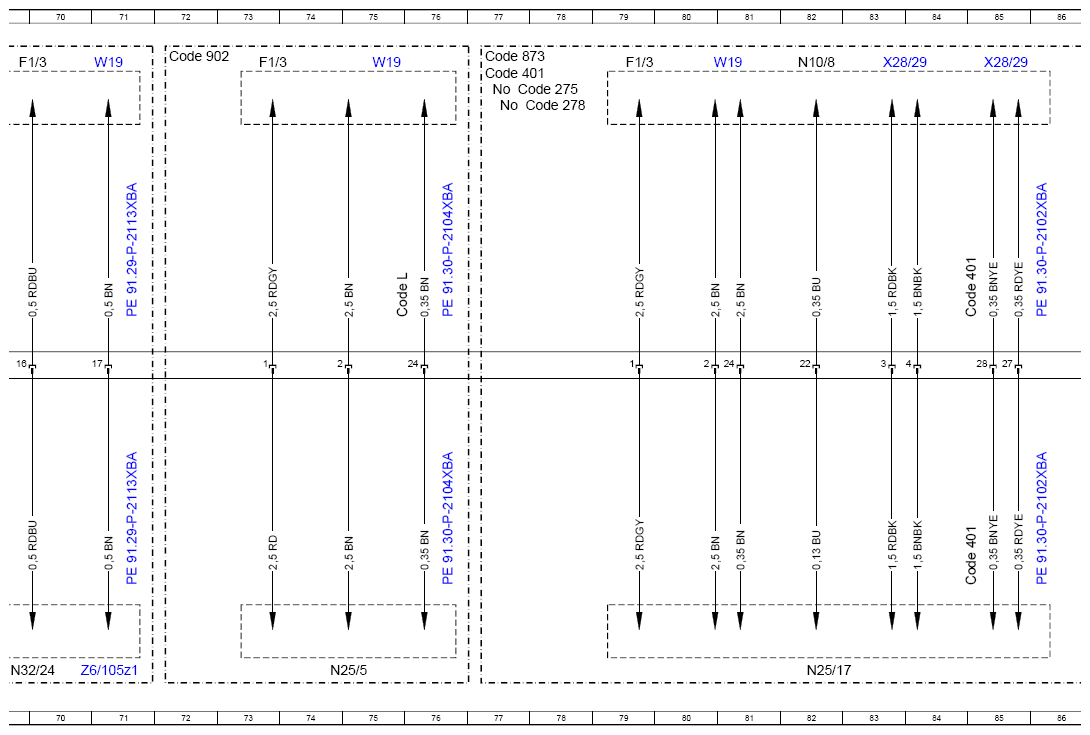

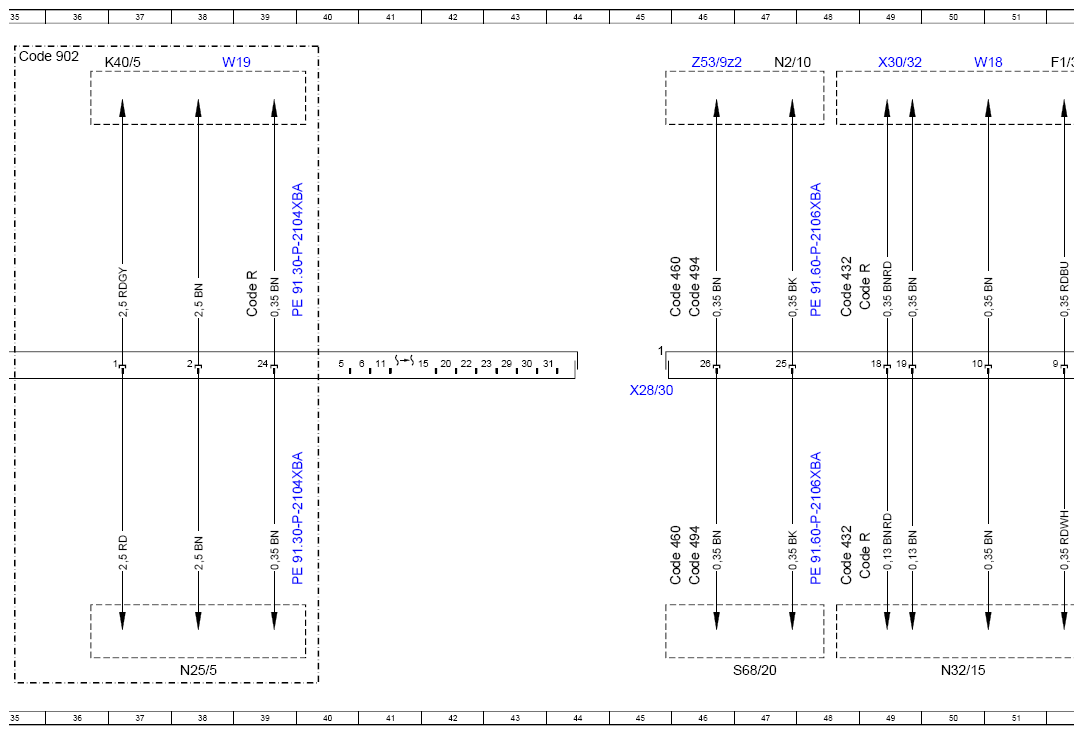

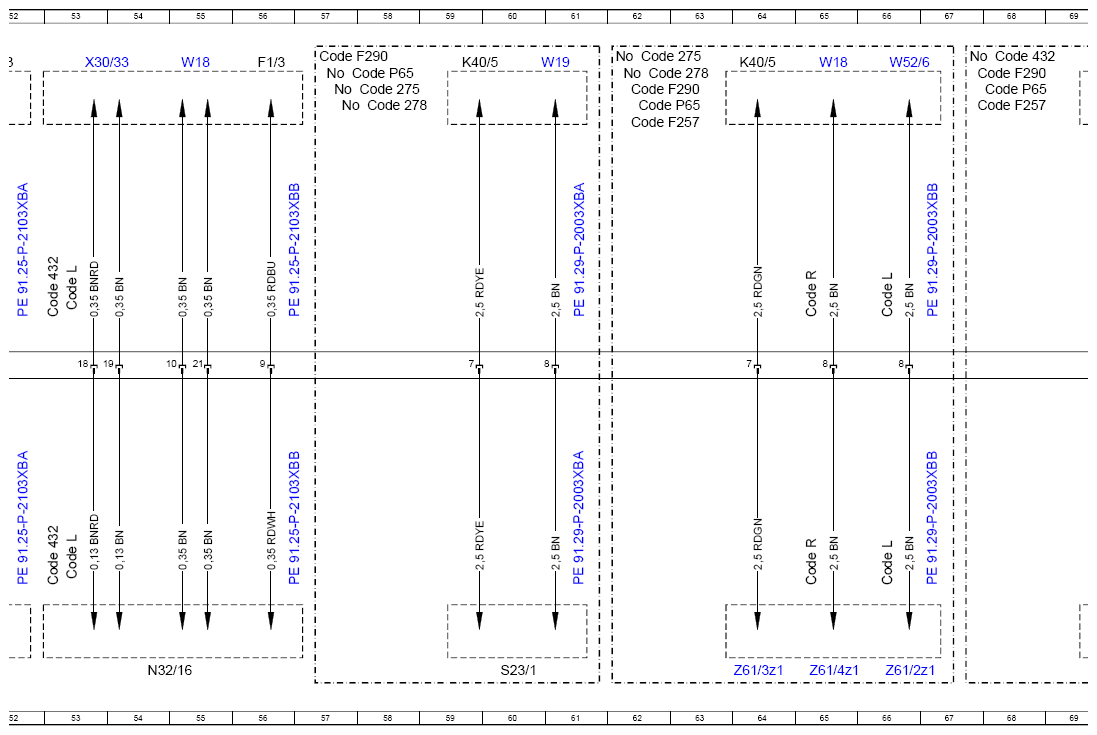

Model 257, 290 up to model year 2021 X28/29, X28/30
| Code: | Designation: | Position: |
|---|---|---|

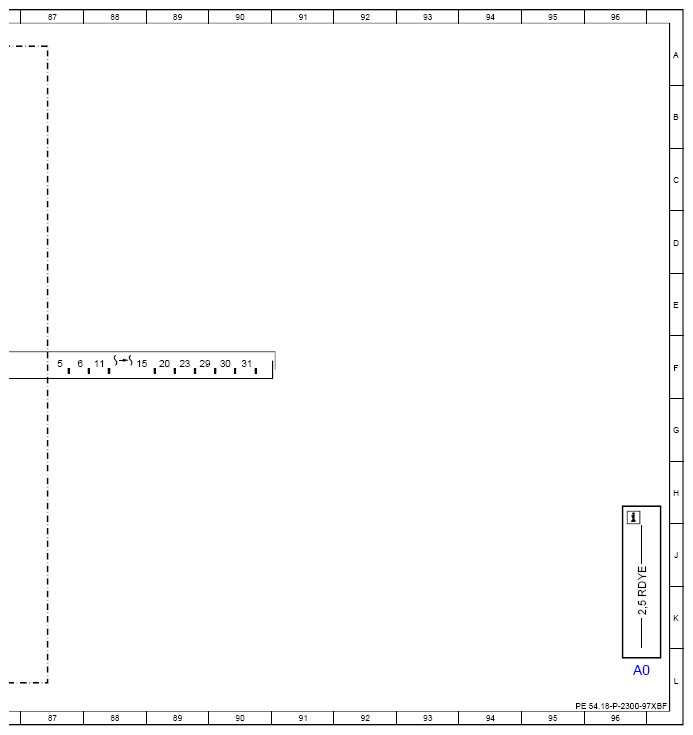

| A0 | Use of wiring diagrams | 96L |
| Code 275 | Memory package | 14B |
| Code 275 | Memory package | 18A |
| Code 275 | Memory package | 29B |
| Code 275 | Memory package | 58B |
| Code 275 | Memory package | 62A |
| Code 275 | Memory package | 77B |
| Code 278 | Fully electric front seats | 14B |
| Code 278 | Fully electric front seats | 18A |
| Code 278 | Fully electric front seats | 29B |
| Code 278 | Fully electric front seats | 58B |
| Code 278 | Fully electric front seats | 62A |
| Code 278 | Fully electric front seats | 77B |
| Code 401 | Seat climate control for driver and front passenger | 28A |
| Code 401 | Seat climate control for driver and front passenger | 33E |
| Code 401 | Seat climate control for driver and front passenger | 33J |
| Code 401 | Seat climate control for driver and front passenger | 77A |
| Code 401 | Seat climate control for driver and front passenger | 85J |
| Code 401 | Seat climate control for driver and front passenger | 85E |
| Code 432 | Left and right front dynamic multicontour seat | 5E |
| Code 432 | Left and right front dynamic multicontour seat | 5J |
| Code 432 | Left and right front dynamic multicontour seat | 9J |
| Code 432 | Left and right front dynamic multicontour seat | 9E |
| Code 432 | Left and right front dynamic multicontour seat | 24A |
| Code 432 | Left and right front dynamic multicontour seat | 53J |
| Code 432 | Left and right front dynamic multicontour seat | 48J |
| Code 432 | Left and right front dynamic multicontour seat | 53E |
| Code 432 | Left and right front dynamic multicontour seat | 48E |
| Code 432 | Left and right front dynamic multicontour seat | 68A |
| Code 460 | Canada version | 2E |
| Code 460 | Canada version | 2J |
| Code 460 | Canada version | 46J |
| Code 460 | Canada version | 46E |
| Code 494 | USA version | 2E |
| Code 494 | USA version | 2J |
| Code 494 | USA version | 46J |
| Code 494 | USA version | 46E |
| Code 873 | Seat heater for driver and front passenger | 28A |
| Code 873 | Seat heater for driver and front passenger | 77A |
| Code 902 | Seat heater Plus for driver and front passenger | 35A |
| Code 902 | Seat heater Plus for driver and front passenger | 72A |
| Code F257 | MODEL SERIES 257 | 18B |
| Code F257 | MODEL SERIES 257 | 24B |
| Code F257 | MODEL SERIES 257 | 67B |
| Code F257 | MODEL SERIES 257 | 62B |
| Code F290 | Model series 290 | 13A |
| Code F290 | Model series 290 | 18B |
| Code F290 | Model series 290 | 24A |
| Code F290 | Model series 290 | 57A |
| Code F290 | Model series 290 | 67A |
| Code F290 | Model series 290 | 62B |
| Code L | LEFT-HAND DRIVE | 5E |
| Code L | LEFT-HAND DRIVE | 5J |
| Code L | LEFT-HAND DRIVE | 21E |
| Code L | LEFT-HAND DRIVE | 21J |
| Code L | LEFT-HAND DRIVE | 53J |
| Code L | LEFT-HAND DRIVE | 66J |
| Code L | LEFT-HAND DRIVE | 53E |
| Code L | LEFT-HAND DRIVE | 66E |
| Code L | LEFT-HAND DRIVE | 76E |
| Code P65 | Seating comfort package | 14A |
| Code P65 | Seating comfort package | 18B |
| Code P65 | Seating comfort package | 24B |
| Code P65 | Seating comfort package | 57A |
| Code P65 | Seating comfort package | 62B |
| Code P65 | Seating comfort package | 68B |
| Code R | RIGHT-HAND DRIVE | 9J |
| Code R | RIGHT-HAND DRIVE | 9E |
| Code R | RIGHT-HAND DRIVE | 22J |
| Code R | RIGHT-HAND DRIVE | 22E |
| Code R | RIGHT-HAND DRIVE | 39E |
| Code R | RIGHT-HAND DRIVE | 49J |
| Code R | RIGHT-HAND DRIVE | 65J |
| Code R | RIGHT-HAND DRIVE | 49E |
| Code R | RIGHT-HAND DRIVE | 65E |
| F1/3 | Passenger-side A-pillar fuse box | 8A |
| F1/3 | Passenger-side A-pillar fuse box | 12A |
| F1/3 | Passenger-side A-pillar fuse box | 26A |
| F1/3 | Passenger-side A-pillar fuse box | 52A |
| F1/3 | Passenger-side A-pillar fuse box | 56A |
| F1/3 | Passenger-side A-pillar fuse box | 69A |
| F1/3 | Passenger-side A-pillar fuse box | 73A |
| F1/3 | Passenger-side A-pillar fuse box | 79A |
| K40/5 | Rear fuse and relay module | 16A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 37A |
| K40/5 | Rear fuse and relay module | 59A |
| K40/5 | Rear fuse and relay module | 64A |
| N10/8 | Rear SAM control unit | 82A |
| N2/10 | Supplemental restraint system control unit | 4A |
| N2/10 | Supplemental restraint system control unit | 47A |
| N25/17 | Front seat heater/seat ventilation control unit | 82L |
| N25/5 | Driver seat heater control unit | 38L |
| N25/5 | Driver seat heater control unit | 74L |
| N32/15 | Left front multicontour seat control unit | 6L |
| N32/15 | Left front multicontour seat control unit | 50L |
| N32/16 | Right front multicontour seat control unit | 11L |
| N32/16 | Right front multicontour seat control unit | 54L |
| N32/23 | Driver seat lumbar support adjustment control unit | 26L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 69L |
| S22/1 | Driver seat partially electric seat adjustment switch | 16L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 60L |
| S68/19 | Driver seat position detection switch | 3L |
| S68/20 | Front passenger seat position detection switch | 47L |
| W18 | Left front seat crossmember ground point | 7A |
| W18 | Left front seat crossmember ground point | 11A |
| W18 | Left front seat crossmember ground point | 21A |
| W18 | Left front seat crossmember ground point | 50A |
| W18 | Left front seat crossmember ground point | 55A |
| W18 | Left front seat crossmember ground point | 65A |
| W19 | Right front seat crossmember ground point | 17A |
| W19 | Right front seat crossmember ground point | 27A |
| W19 | Right front seat crossmember ground point | 38A |
| W19 | Right front seat crossmember ground point | 61A |
| W19 | Right front seat crossmember ground point | 71A |
| W19 | Right front seat crossmember ground point | 75A |
| W19 | Right front seat crossmember ground point | 81A |
| W52/6 | Right center longitudinal member ground point | 22A |
| W52/6 | Right center longitudinal member ground point | 66A |
| X28/29 | Frame floor assembly/driver seat electrical connector | 1F |
| X28/29 | Frame floor assembly/driver seat electrical connector | 83A |
| X28/29 | Frame floor assembly/driver seat electrical connector | 85A |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 32A |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 45F |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 5A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 49A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 10A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 53A |
| Z53/9z1 | Ground connection connector sleeve | 2A |
| Z53/9z2 | Ground connection connector sleeve | 46A |
| Z6/104z1 | Ground connection connector sleeve | 27L |
| Z6/105z1 | Ground connection connector sleeve | 71L |
| Z61/1z1 | Terminal 30t connector sleeve | 20L |
| Z61/25z1 | Voltage supply connector sleeve | 30L |
| Z61/27z1 | Ground connection connector sleeve | 31L |
| Z61/29z1 | DC motor connector sleeve (potential according to rotation direction) | 34L |
| Z61/2z1 | Ground connection connector sleeve | 21L |
| Z61/2z1 | Ground connection connector sleeve | 22L |
| Z61/2z1 | Ground connection connector sleeve | 66L |
| Z61/31z1 | DC motor connector sleeve (potential according to rotation direction) | 33L |
| Z61/3z1 | Terminal 30t connector sleeve | 64L |
| Z61/4z1 | Ground connection connector sleeve | 65L |
