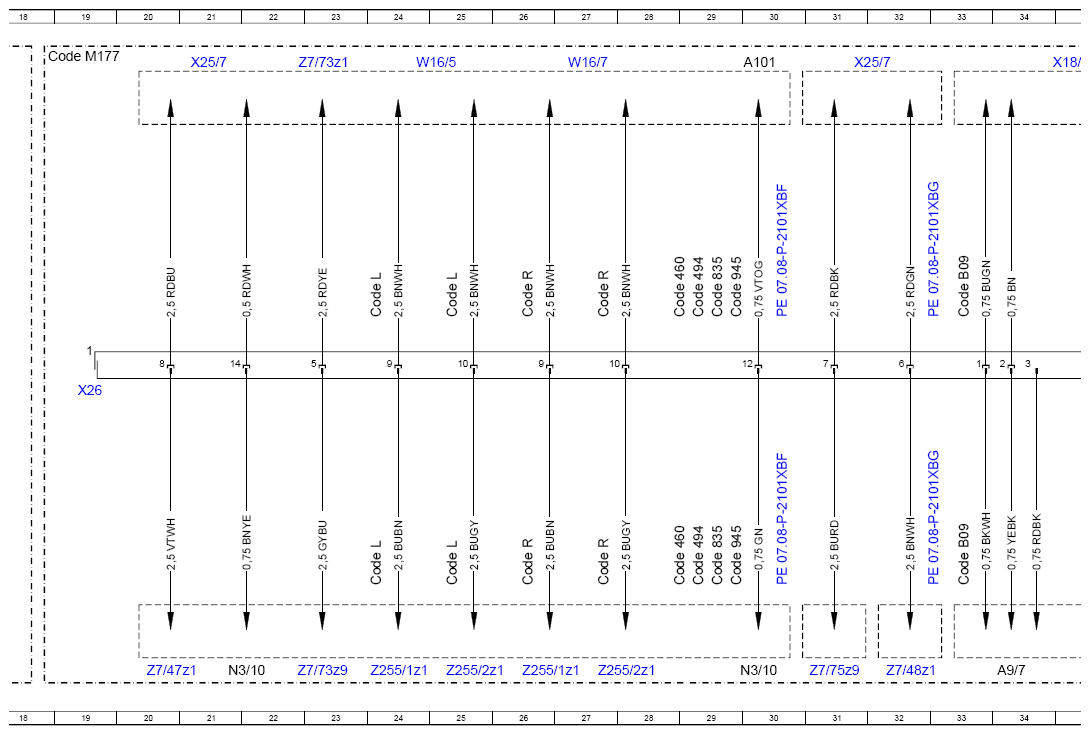

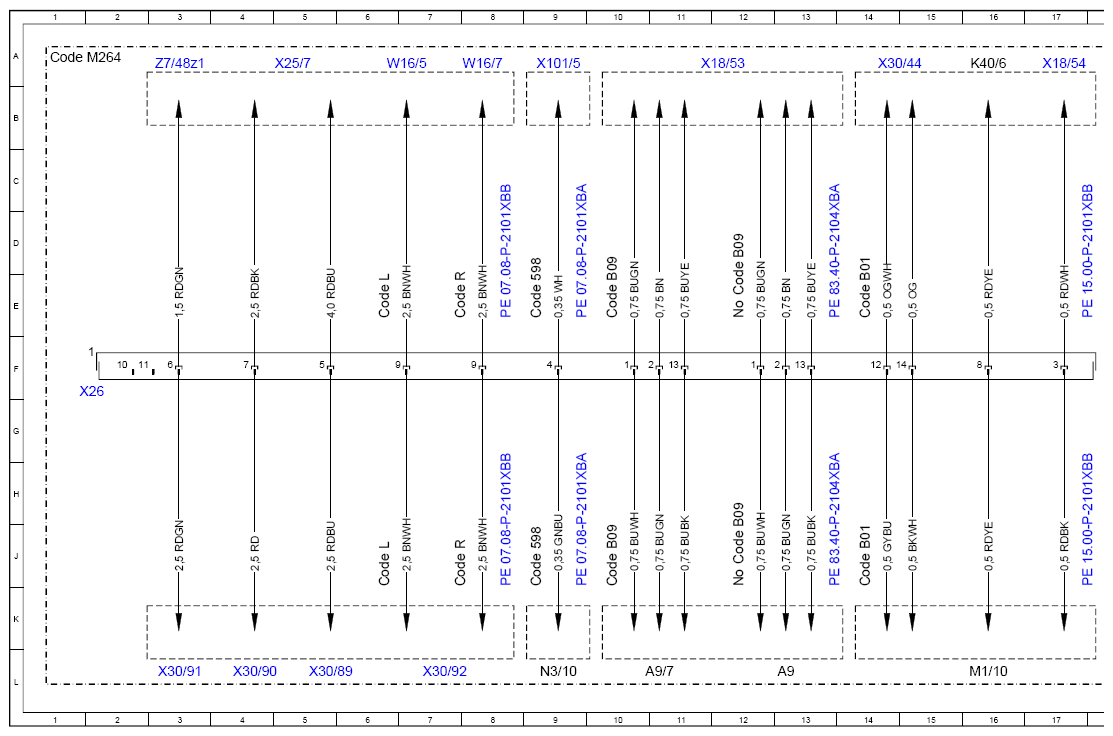

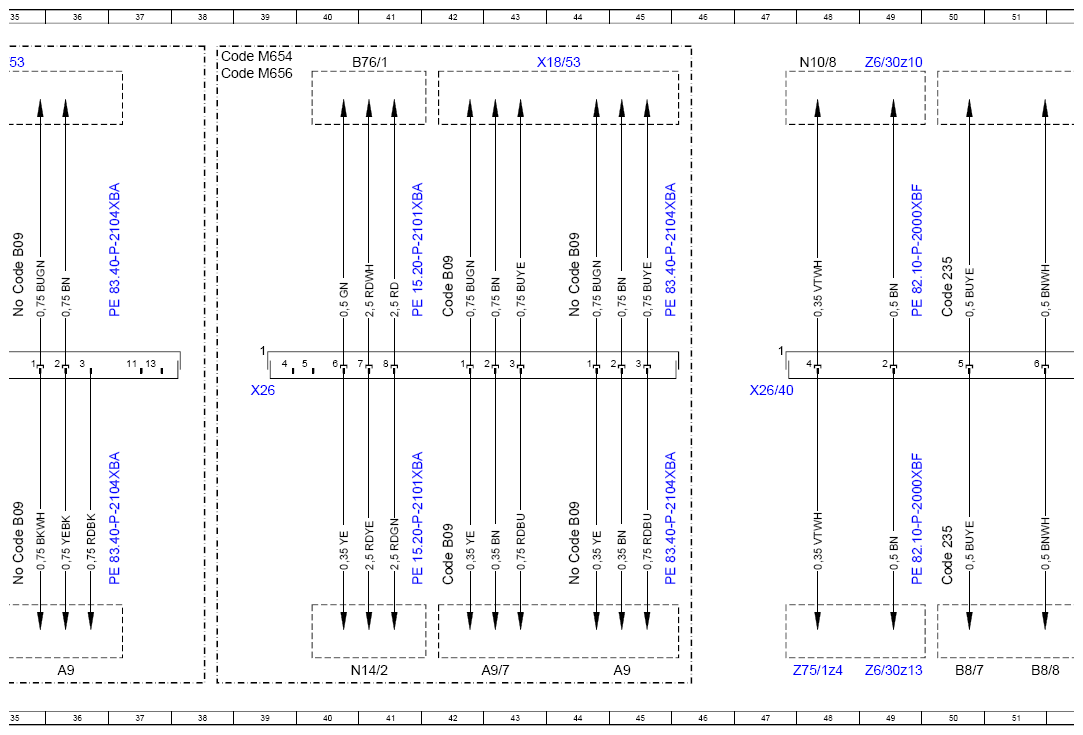

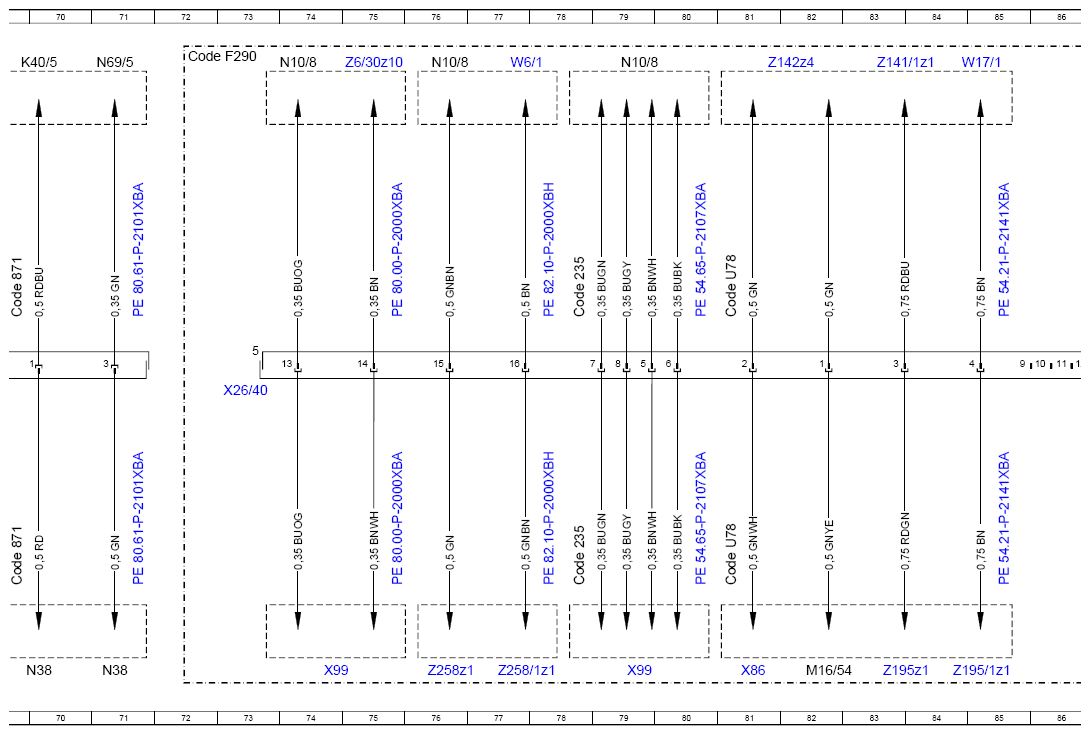

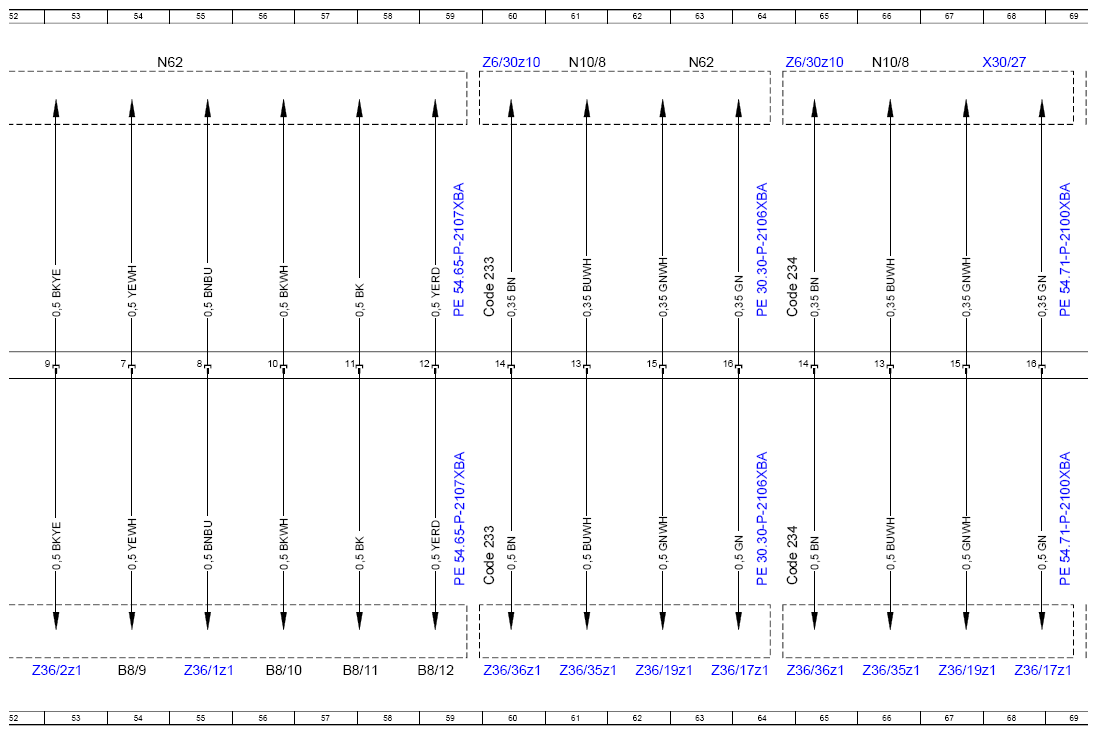

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBE
Model 257, 290 up to model year 2021 X26, X26/40
| Code: | Designation: | Position: |
|---|---|---|

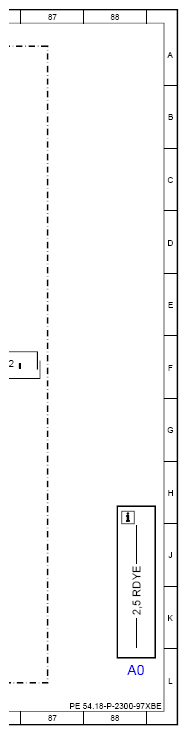

| A0 | Use of wiring diagrams | 88L |
| A101 | Fuel tank diagnostic module | 30A |
| A9 | Refrigerant compressor | 13L |
| A9 | Refrigerant compressor | 36L |
| A9 | Refrigerant compressor | 45L |
| A9/7 | Refrigerant compressor with magnetic clutch | 11L |
| A9/7 | Refrigerant compressor with magnetic clutch | 34L |
| A9/7 | Refrigerant compressor with magnetic clutch | 43L |
| B76/1 | Condensation sensor for fuel filter with heating element | 41A |
| B8/10 | Outer left rear parking system distance sensor | 56L |
| B8/11 | Center left rear parking system distance sensor | 57L |
| B8/12 | Center right rear parking system distance sensor | 59L |
| B8/7 | Outer right rear parking system distance sensor | 50L |
| B8/8 | Inner right rear parking system distance sensor | 51L |
| B8/9 | Inner left rear parking system distance sensor | 54L |
| Code 233 | DISTRONIC PLUS | 60J |
| Code 233 | DISTRONIC PLUS | 60E |
| Code 234 | Blind spot assist | 65J |
| Code 234 | Blind spot assist | 65E |
| Code 235 | Park-Pilot with PARKTRONIC | 50J |
| Code 235 | Park-Pilot with PARKTRONIC | 50E |
| Code 235 | Park-Pilot with PARKTRONIC | 78E |
| Code 235 | Park-Pilot with PARKTRONIC | 78J |
| Code 460 | Canada version | 29E |
| Code 460 | Canada version | 29J |
| Code 494 | USA version | 29E |
| Code 494 | USA version | 29J |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 9E |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 9J |
| Code 835 | Additional parts for South Korea vehicles | 29E |
| Code 835 | Additional parts for South Korea vehicles | 29J |
| Code 871 | HANDS-FREE ACCESS | 69E |
| Code 871 | HANDS-FREE ACCESS | 69J |
| Code 945 | China Stage 6 exhaust treatment | 29E |
| Code 945 | China Stage 6 exhaust treatment | 29J |
| Code B01 | 48V technology | 14J |
| Code B01 | 48V technology | 14E |
| Code B09 | Refrigerant compressor with magnetic clutch | 10E |
| Code B09 | Refrigerant compressor with magnetic clutch | 10J |
| Code B09 | Refrigerant compressor with magnetic clutch | 12J |
| Code B09 | Refrigerant compressor with magnetic clutch | 12E |
| Code B09 | Refrigerant compressor with magnetic clutch | 35J |
| Code B09 | Refrigerant compressor with magnetic clutch | 33J |
| Code B09 | Refrigerant compressor with magnetic clutch | 35E |
| Code B09 | Refrigerant compressor with magnetic clutch | 33E |
| Code B09 | Refrigerant compressor with magnetic clutch | 44J |
| Code B09 | Refrigerant compressor with magnetic clutch | 42J |
| Code B09 | Refrigerant compressor with magnetic clutch | 44E |
| Code B09 | Refrigerant compressor with magnetic clutch | 42E |
| Code F290 | Model series 290 | 72A |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 6J |
| Code L | LEFT-HAND DRIVE | 24E |
| Code L | LEFT-HAND DRIVE | 24J |
| Code L | LEFT-HAND DRIVE | 25E |
| Code L | LEFT-HAND DRIVE | 25J |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 18A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 1A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 38A |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 38A |
| Code R | RIGHT-HAND DRIVE | 8J |
| Code R | RIGHT-HAND DRIVE | 8E |
| Code R | RIGHT-HAND DRIVE | 26J |
| Code R | RIGHT-HAND DRIVE | 26E |
| Code R | RIGHT-HAND DRIVE | 27E |
| Code R | RIGHT-HAND DRIVE | 27J |
| Code U78 | AMG Sport exhaust system | 81E |
| Code U78 | AMG Sport exhaust system | 81J |
| K40/5 | Rear fuse and relay module | 70A |
| K40/6 | Driver-side fuse and relay module | 16A |
| M1/10 | Starter-alternator | 16L |
| M16/54 | Right exhaust flap actuator motor | 82L |
| N10/8 | Rear SAM control unit | 61A |
| N10/8 | Rear SAM control unit | 66A |
| N10/8 | Rear SAM control unit | 48A |
| N10/8 | Rear SAM control unit | 79A |
| N10/8 | Rear SAM control unit | 74A |
| N10/8 | Rear SAM control unit | 76A |
| N14/2 | Glow output stage | 41L |
| N3/10 | ME-SFI [ME] control unit | 9L |
| N3/10 | ME-SFI [ME] control unit | 21L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N38 | Rear switching module | 70L |
| N38 | Rear switching module | 71L |
| N62 | Parking system control unit | 54A |
| N62 | Parking system control unit | 63A |
| N69/5 | KEYLESS-GO control unit | 71A |
| W16/5 | Left major assembly compartment electronics ground point | 6A |
| W16/5 | Left major assembly compartment electronics ground point | 24A |
| W16/7 | Right major assembly compartment electronics ground point | 8A |
| W16/7 | Right major assembly compartment electronics ground point | 27A |
| W17/1 | Left rear seat ground point | 85A |
| W6/1 | Left taillamp trunk ground point | 77A |
| X101/5 | Right rear frame floor assembly/underfloor electrical connector | 9A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 12A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 35A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 44A |
| X18/54 | Passenger side cockpit/frame floor assembly electrical connector | 17A |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 5A |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 21A |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 31A |
| X26 | Engine/engine compartment electrical connector | 2F |
| X26 | Engine/engine compartment electrical connector | 19F |
| X26 | Engine/engine compartment electrical connector | 39F |
| X26/40 | Rear bumper electrical connector | 47F |
| X26/40 | Rear bumper electrical connector | 73F |
| X30/27 | Periphery CAN (CAN PER) potential distributor | 68A |
| X30/44 | Hybrid-CAN (CAN L) potential distributor | 14A |
| X30/89 | Power supply potential distributor 1 | 5L |
| X30/90 | Power supply potential distributor 2 | 4L |
| X30/91 | Power supply potential distributor 3 | 3L |
| X30/92 | Circuit 31 potential distributor 1 | 7L |
| X86 | Left exhaust gas flap actuator motor electrical connector | 81L |
| X99 | Rear bumper electrical connector | 79L |
| X99 | Rear bumper electrical connector | 74L |
| Z141/1z1 | Circuit 87C connector sleeve | 83A |
| Z142z4 | LIN C3 connector sleeve | 82A |
| Z195/1z1 | Ground connection connector sleeve | 84L |
| Z195z1 | Circuit 87C connector sleeve | 83L |
| Z255/1z1 | Ground connection connector sleeve | 24L |
| Z255/1z1 | Ground connection connector sleeve | 26L |
| Z255/2z1 | Ground connection connector sleeve | 25L |
| Z255/2z1 | Ground connection connector sleeve | 27L |
| Z258/1z1 | Ground connection connector sleeve | 77L |
| Z258z1 | Voltage supply connector sleeve | 76L |
| Z36/17z1 | Rear radar CAN (CAN S2) low connector sleeve | 63L |
| Z36/17z1 | Rear radar CAN (CAN S2) low connector sleeve | 68L |
| Z36/19z1 | Rear radar CAN (CAN S2) high connector sleeve | 62L |
| Z36/19z1 | Rear radar CAN (CAN S2) high connector sleeve | 67L |
| Z36/1z1 | Ground connection connector sleeve | 55L |
| Z36/2z1 | Voltage supply connector sleeve | 52L |
| Z36/35z1 | Voltage supply connector sleeve | 61L |
| Z36/35z1 | Voltage supply connector sleeve | 66L |
| Z36/36z1 | Ground connection connector sleeve | 60L |
| Z36/36z1 | Ground connection connector sleeve | 65L |
| Z6/30z10 | Ground connection connector sleeve | 60A |
| Z6/30z10 | Ground connection connector sleeve | 65A |
| Z6/30z10 | Ground connection connector sleeve | 49A |
| Z6/30z10 | Ground connection connector sleeve | 75A |
| Z6/30z13 | Ground connection connector sleeve | 49L |
| Z7/47z1 | Circuit 87M connector sleeve | 20L |
| Z7/48z1 | Circuit 87M connector sleeve | 3A |
| Z7/48z1 | Circuit 87M connector sleeve | 32L |
| Z7/73z1 | Circuit 87M connector sleeve | 23A |
| Z7/73z9 | Circuit 87M connector sleeve | 23L |
| Z7/75z9 | Circuit 87M connector sleeve | 31L |
| Z75/1z4 | Voltage supply connector sleeve | 48L |
