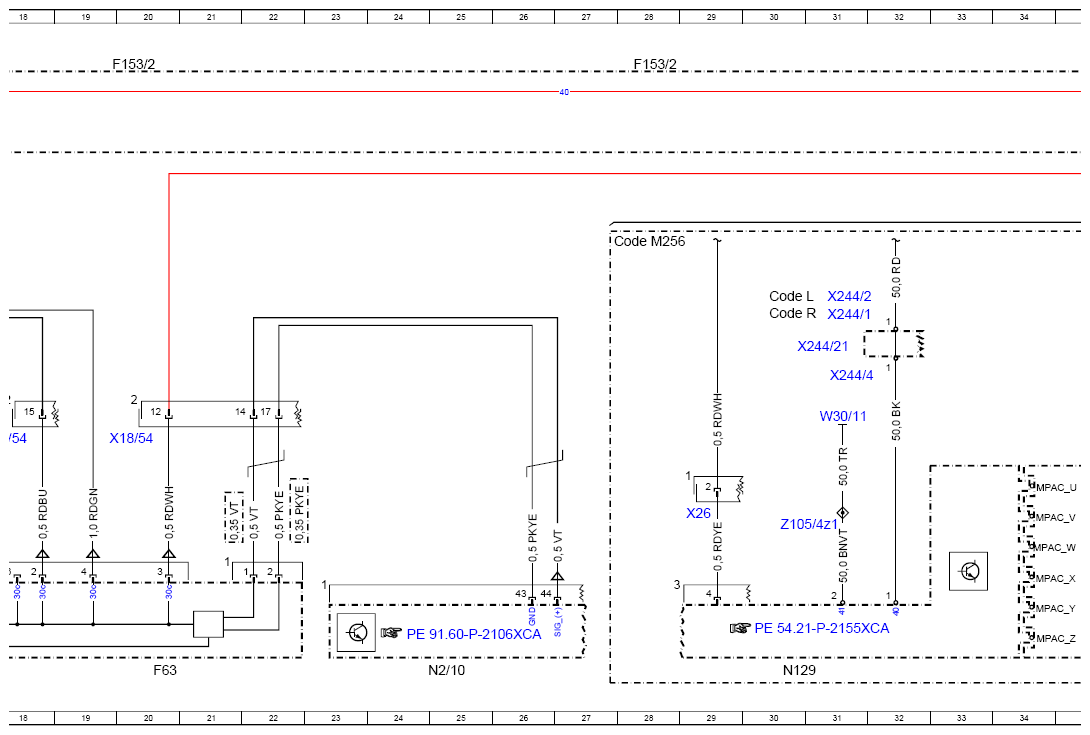

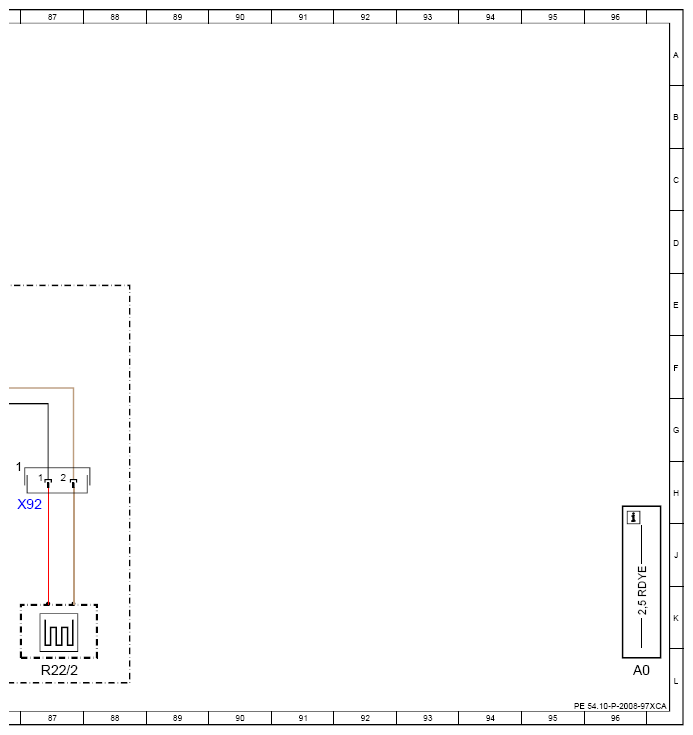

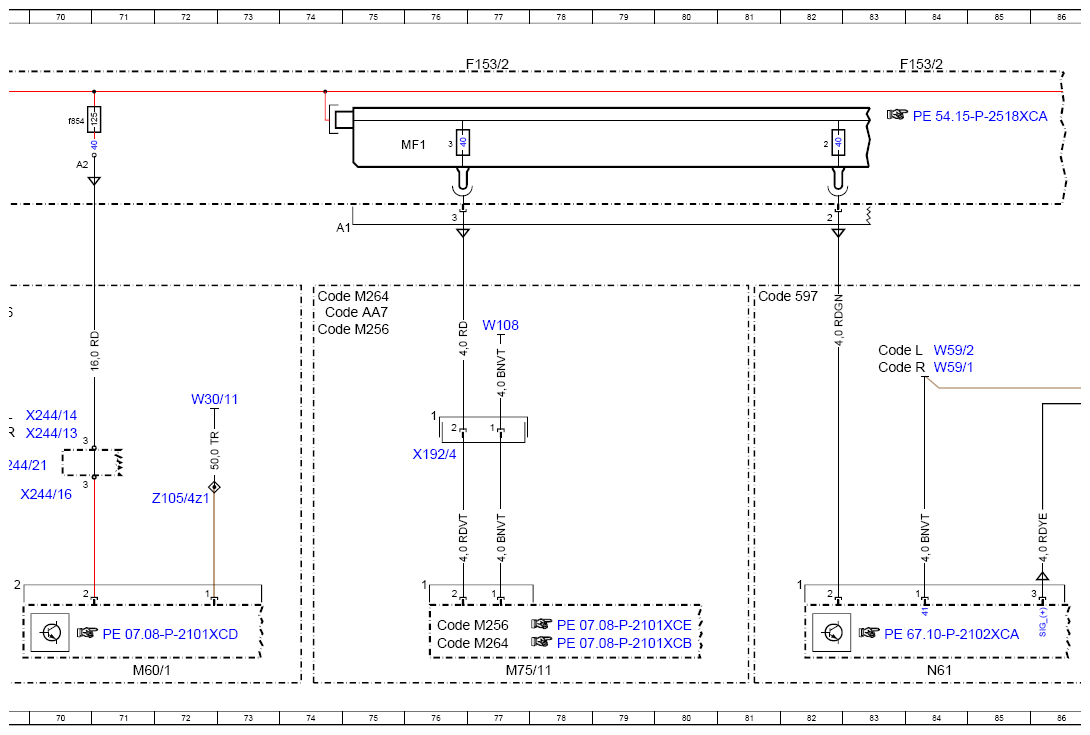

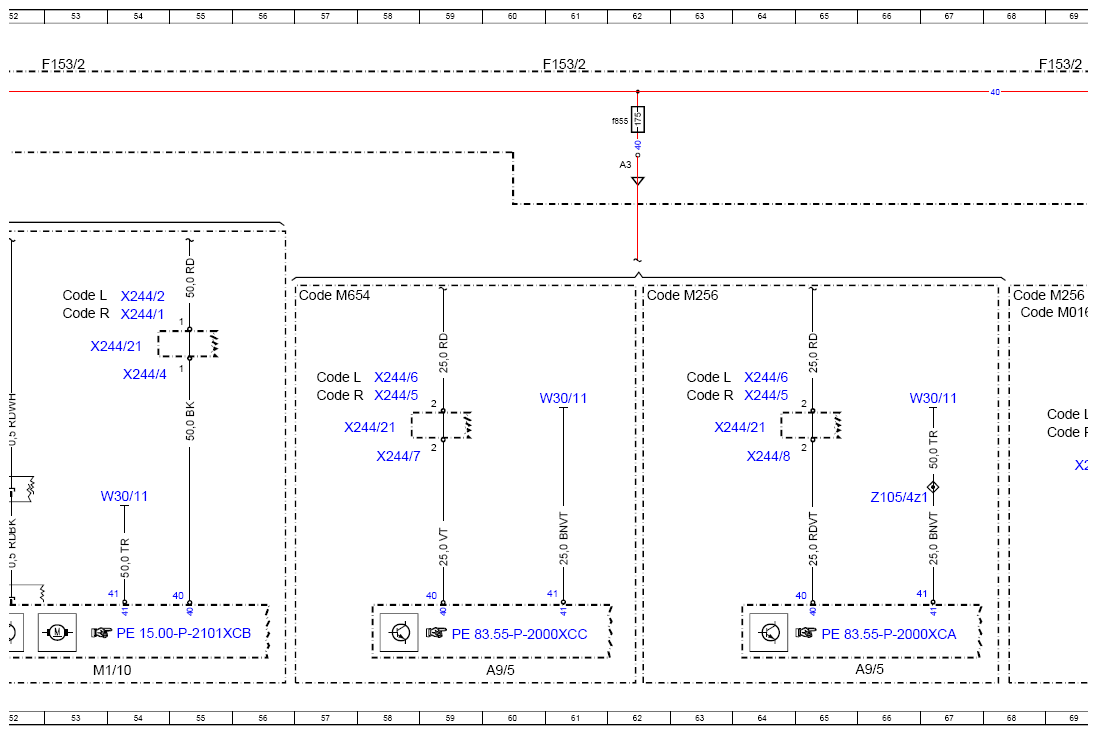

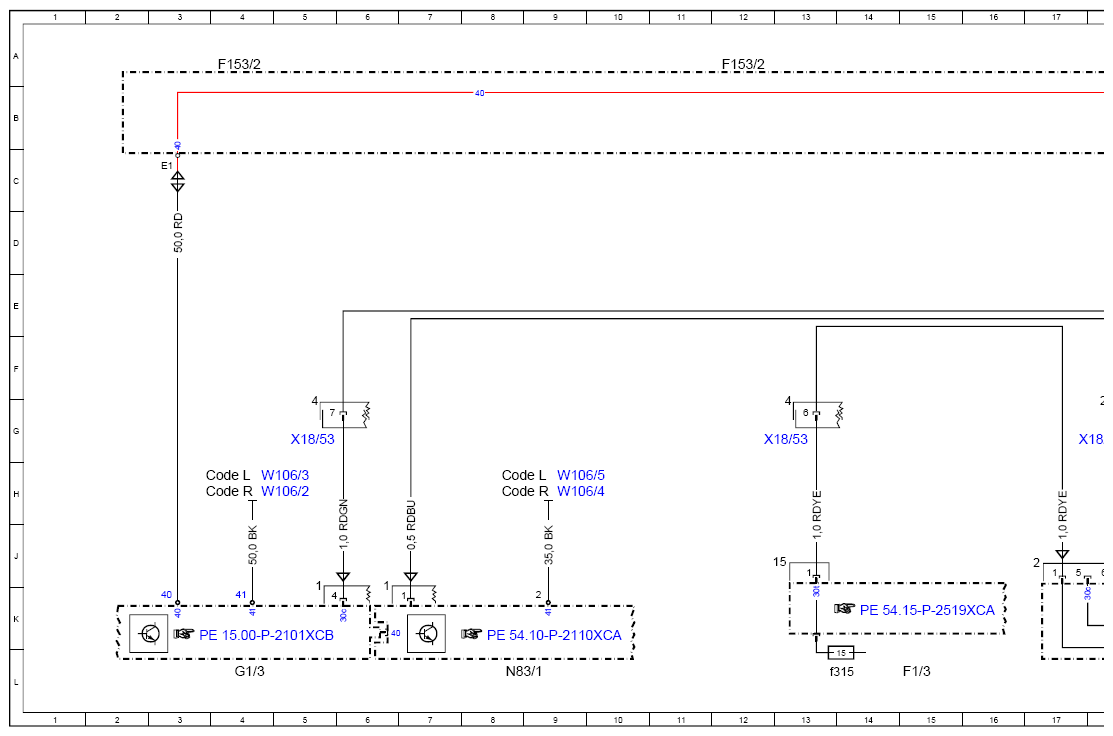

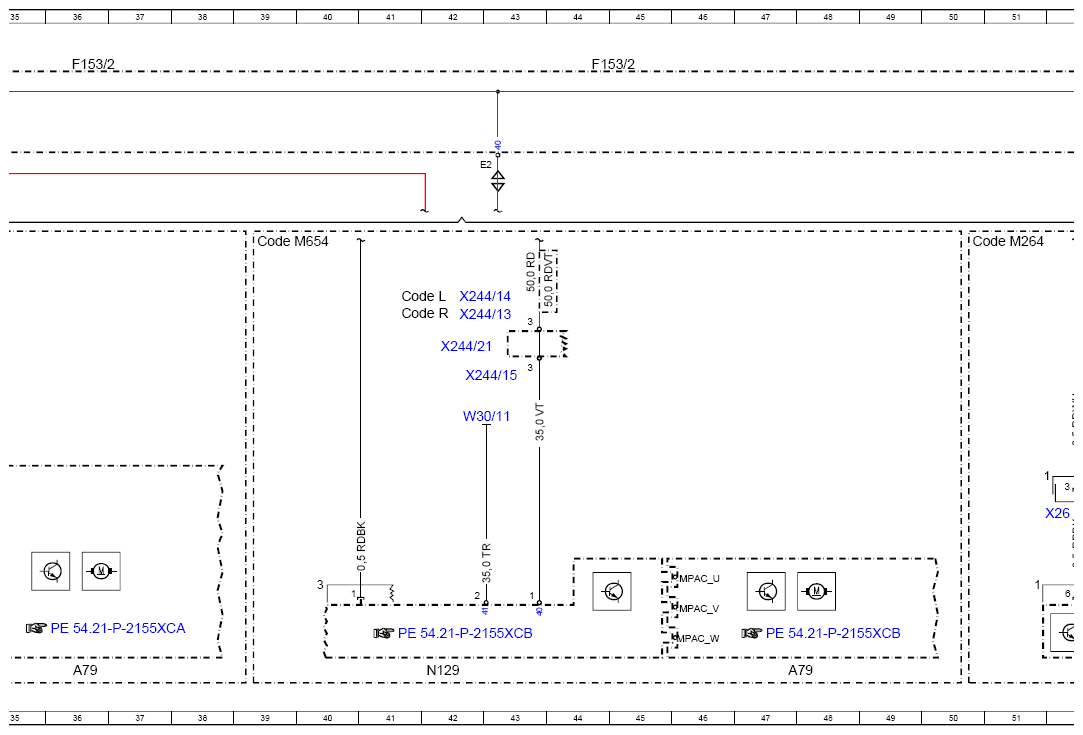

Wiring Diagram Of 48V On-Board Electrical System - PE54.10-P-2008-97XCA
Model 257, 290 as of model year 2021 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A79 | Integrated starter generator | 36L |
| A79 | Integrated starter generator | 47L |
| A9/5 | Electric refrigerant compressor | 60L |
| A9/5 | Electric refrigerant compressor | 66L |
| Code 597 | Heated windshield | 81E |
| Code AA7 | POWER VARIANT UPRATED 2 | 74E |
| Code L | LEFT-HAND DRIVE | 3H |
| Code L | LEFT-HAND DRIVE | 8H |
| Code L | LEFT-HAND DRIVE | 83F |
| Code L | LEFT-HAND DRIVE | 69G |
| Code L | LEFT-HAND DRIVE | 63F |
| Code L | LEFT-HAND DRIVE | 30E |
| Code L | LEFT-HAND DRIVE | 53E |
| Code L | LEFT-HAND DRIVE | 41E |
| Code L | LEFT-HAND DRIVE | 57F |
| Code M016 | Uprated high-performance engine | 68E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 27D |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 76K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 68E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 74E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 62E |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 50D |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 76K |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 74E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 57E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 39D |
| Code R | RIGHT-HAND DRIVE | 3H |
| Code R | RIGHT-HAND DRIVE | 8H |
| Code R | RIGHT-HAND DRIVE | 83F |
| Code R | RIGHT-HAND DRIVE | 69G |
| Code R | RIGHT-HAND DRIVE | 63G |
| Code R | RIGHT-HAND DRIVE | 30E |
| Code R | RIGHT-HAND DRIVE | 53E |
| Code R | RIGHT-HAND DRIVE | 41E |
| Code R | RIGHT-HAND DRIVE | 57G |
| F1/3 | Passenger-side A-pillar fuse box | 15L |
| F1/3f315 | Fuse 315 | 13L |
| F153/2 | Engine compartment 48V fuse box | 4A |
| F153/2 | Engine compartment 48V fuse box | 12A |
| F153/2 | Engine compartment 48V fuse box | 20A |
| F153/2 | Engine compartment 48V fuse box | 28A |
| F153/2 | Engine compartment 48V fuse box | 36A |
| F153/2 | Engine compartment 48V fuse box | 69A |
| F153/2 | Engine compartment 48V fuse box | 44A |
| F153/2 | Engine compartment 48V fuse box | 53A |
| F153/2 | Engine compartment 48V fuse box | 61A |
| F153/2 | Engine compartment 48V fuse box | 77A |
| F153/2 | Engine compartment 48V fuse box | 84A |
| F153/2MF1 | 48 V on-board electrical system electric multicircuit fuse | 76C |
| F153/2f854 | Electrical fuse 854 | 70B |
| F153/2f855 | Electrical fuse 855 | 62B |
| F63 | Pyrofuse | 20L |
| G1/3 | 48 V on-board electrical system battery | 4L |
| M1/10 | Starter-alternator | 53L |
| M60/1 | Electric additional compressor | 71L |
| M75/11 | Electric coolant pump | 77L |
| N129 | Starter generator control unit | 30L |
| N129 | Starter generator control unit | 42L |
| N2/10 | Supplemental restraint system control unit | 25L |
| N61 | Windshield heater control unit | 84L |
| N83/1 | DC/DC converter control unit | 8L |
| R22/2 | Heated windshield | 87L |
| W106/2 | 48 V on-board electrical system battery ground point, left | 4H |
| W106/3 | 48 V on-board electrical system battery ground point, right | 4H |
| W106/4 | Left engine compartment circuit 41 ground point | 9H |
| W106/5 | Right engine compartment circuit 41 ground point | 9H |
| W108 | Electric coolant pump ground point | 77E |
| W30/11 | Underbody tml. 41 ground point | 31G |
| W30/11 | Underbody tml. 41 ground point | 54H |
| W30/11 | Underbody tml. 41 ground point | 61G |
| W30/11 | Underbody tml. 41 ground point | 72G |
| W30/11 | Underbody tml. 41 ground point | 67G |
| W30/11 | Underbody tml. 41 ground point | 42G |
| W59/1 | Left windshield heater ground point | 84F |
| W59/2 | Right windshield heater ground point | 84F |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 13G |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 5G |
| X18/54 | Passenger side cockpit/frame floor assembly electrical connector | 18G |
| X18/54 | Passenger side cockpit/frame floor assembly electrical connector | 20G |
| X192/4 | Electric coolant pump electrical connector | 76G |
| X244/1 | Left vehicle-end busbar stud 1 | 31E |
| X244/1 | Left vehicle-end busbar stud 1 | 54E |
| X244/13 | Left vehicle-end busbar stud 3 | 69G |
| X244/13 | Left vehicle-end busbar stud 3 | 42E |
| X244/14 | Right vehicle-end busbar stud 3 | 69G |
| X244/14 | Right vehicle-end busbar stud 3 | 42E |
| X244/15 | Left engine-end busbar stud 3 | 43F |
| X244/16 | Right engine-end busbar stud 3 | 70H |
| X244/2 | Right vehicle-end busbar stud 1 | 31E |
| X244/2 | Right vehicle-end busbar stud 1 | 54E |
| X244/21 | Partition wall busbar | 69H |
| X244/21 | Partition wall busbar | 64G |
| X244/21 | Partition wall busbar | 31F |
| X244/21 | Partition wall busbar | 54F |
| X244/21 | Partition wall busbar | 42F |
| X244/21 | Partition wall busbar | 58G |
| X244/4 | Right engine-end busbar stud 1 | 31F |
| X244/4 | Right engine-end busbar stud 1 | 54F |
| X244/5 | Left vehicle-end busbar stud 2 | 64G |
| X244/5 | Left vehicle-end busbar stud 2 | 58G |
| X244/6 | Right vehicle-end busbar stud 2 | 64F |
| X244/6 | Right vehicle-end busbar stud 2 | 58F |
| X244/7 | Left engine-end busbar stud 2 | 58H |
| X244/8 | Right engine-end busbar stud 2 | 64H |
| X26 | Engine/engine compartment electrical connector | 29H |
| X26 | Engine/engine compartment electrical connector | 52H |
| X92 | Heated windshield electrical connector | 87H |
| Z105/4z1 | Circuit 41 connector sleeve | 31J |
| Z105/4z1 | Circuit 41 connector sleeve | 72H |
| Z105/4z1 | Circuit 41 connector sleeve | 66H |
