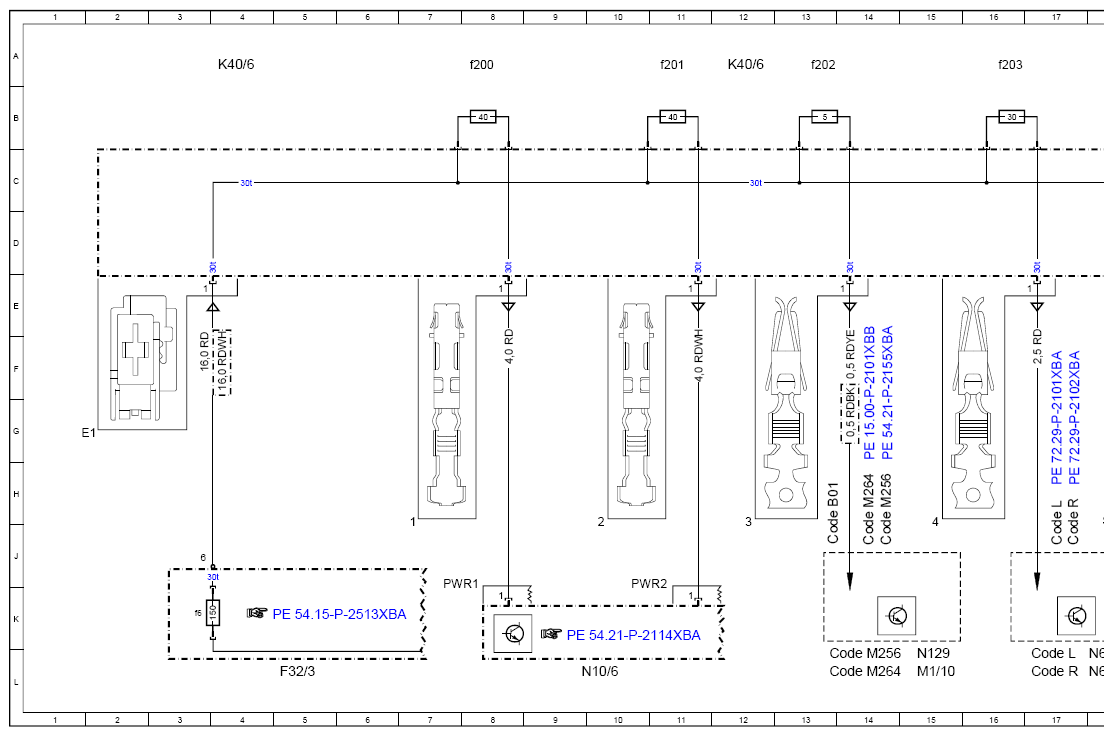

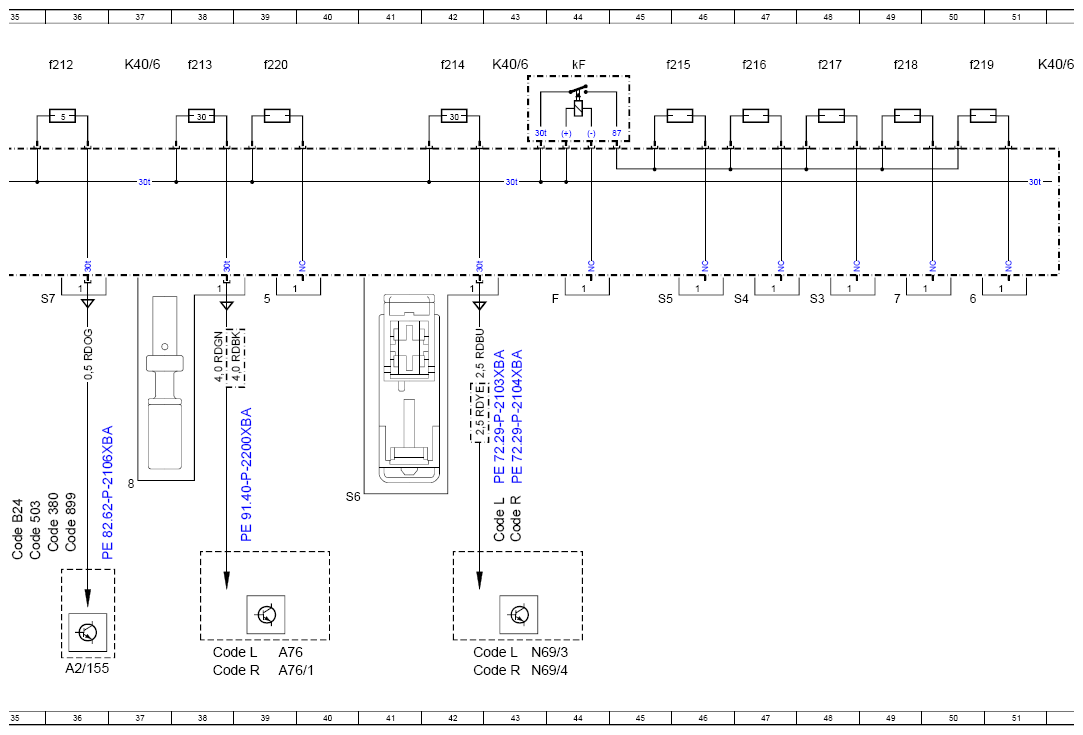

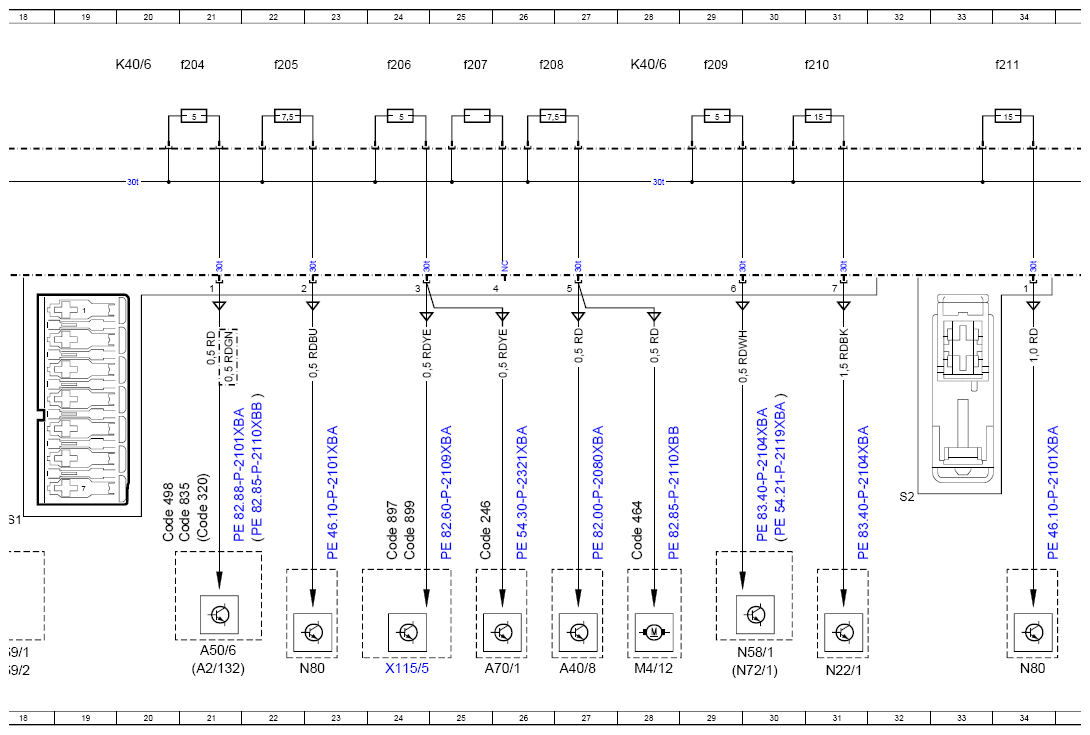

Wiring Diagram For Driver-Side Fuse And Relay Module - PE54.15-P-2104-97XBA
Model 257, 290 up to model year 2021

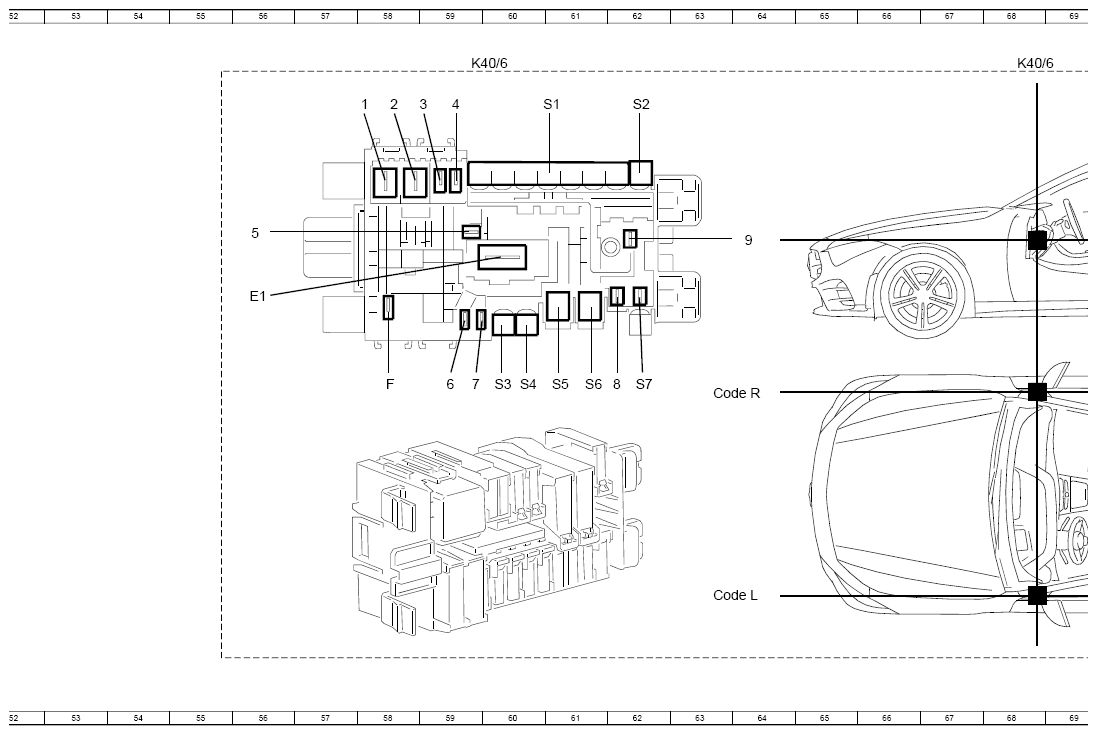

Module K40/6
| Code: | Designation: | Position: |
|---|---|---|

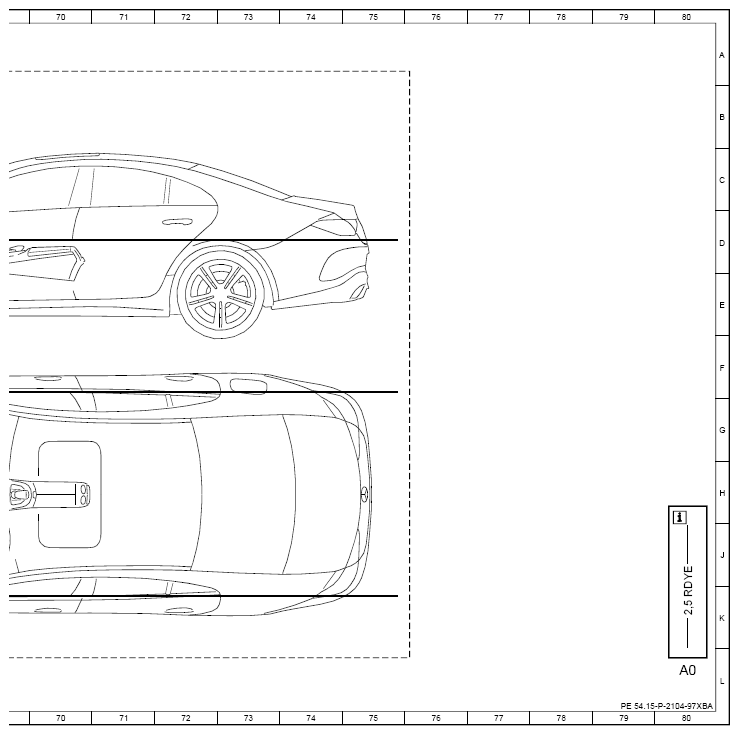

| A0 | Use of wiring diagrams | 80L |
| A2/132 | External CD drive | 21L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 36L |
| A40/8 | Audio/COMAND display | 27L |
| A50/6 | Dedicated Short-Range Communications control unit | 21L |
| A70/1 | Analog clock | 26L |
| A76 | Left front reversible emergency tensioning retractor | 39L |
| A76/1 | Right front reversible emergency tensioning retractor | 39L |
| Code 246 | Analog clock | 25J |
| Code 320 | Single CD drive pre-installation | 21J |
| Code 380 | Car telephony package | 36J |
| Code 464 | Digital instrument cluster full display | 28J |
| Code 498 | Japan version | 20J |
| Code 503 | Remote Park-Pilot | 35J |
| Code 835 | Additional parts for South Korea vehicles | 21J |
| Code 897 | Wireless mobile phone charging | 24J |
| Code 899 | Multifunction telephony | 24J |
| Code 899 | Multifunction telephony | 36J |
| Code B01 | 48V technology | 14J |
| Code B24 | Remote control for stationary heater | 35J |
| Code L | LEFT-HAND DRIVE | 17J |
| Code L | LEFT-HAND DRIVE | 43J |
| Code L | LEFT-HAND DRIVE | 17L |
| Code L | LEFT-HAND DRIVE | 38L |
| Code L | LEFT-HAND DRIVE | 42L |
| Code L | LEFT-HAND DRIVE | 63K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 14J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 13L |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 14J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 13L |
| Code R | RIGHT-HAND DRIVE | 17J |
| Code R | RIGHT-HAND DRIVE | 43J |
| Code R | RIGHT-HAND DRIVE | 17L |
| Code R | RIGHT-HAND DRIVE | 38L |
| Code R | RIGHT-HAND DRIVE | 42L |
| Code R | RIGHT-HAND DRIVE | 63G |
| F32/3 | Engine compartment prefuse box | 5L |
| F32/4f6 | Fuse 6 | 3K |
| K40/6 | Driver-side fuse and relay module | 12A |
| K40/6 | Driver-side fuse and relay module | 4A |
| K40/6 | Driver-side fuse and relay module | 20A |
| K40/6 | Driver-side fuse and relay module | 28A |
| K40/6 | Driver-side fuse and relay module | 37A |
| K40/6 | Driver-side fuse and relay module | 43A |
| K40/6 | Driver-side fuse and relay module | 52A |
| K40/6 | Driver-side fuse and relay module | 59A |
| K40/6 | Driver-side fuse and relay module | 68A |
| K40/6f200 | Fuse 200 | 8A |
| K40/6f201 | Fuse 201 | 11A |
| K40/6f202 | Fuse 202 | 13A |
| K40/6f203 | Fuse 203 | 16A |
| K40/6f204 | Fuse 204 | 21A |
| K40/6f205 | Fuse 205 | 22A |
| K40/6f206 | Fuse 206 | 24A |
| K40/6f207 | Fuse 207 | 25A |
| K40/6f208 | Fuse 208 | 26A |
| K40/6f209 | Fuse 209 | 29A |
| K40/6f210 | Fuse 210 | 31A |
| K40/6f211 | Fuse 211 | 34A |
| K40/6f212 | Fuse 212 | 36A |
| K40/6f213 | Fuse 213 | 38A |
| K40/6f214 | Fuse 214 | 42A |
| K40/6f215 | Fuse 215 | 45A |
| K40/6f216 | Fuse 216 | 47A |
| K40/6f217 | Fuse 217 | 48A |
| K40/6f218 | Fuse 218 | 49A |
| K40/6f219 | Fuse 219 | 50A |
| K40/6f220 | Fuse 220 | 39A |
| K40/6kF | Backup relay | 44A |
| M1/10 | Starter-alternator | 15L |
| M4/12 | Digital instrument cluster full display fan motor | 28L |
| N10/6 | Front SAM control unit | 10L |
| N129 | Starter generator control unit | 15L |
| N22/1 | Climate control control unit | 31L |
| N58/1 | Climate control operating unit | 30L |
| N69/1 | Left front door control unit | 18L |
| N69/2 | Right front door control unit | 18L |
| N69/3 | Left rear door control unit | 43L |
| N69/4 | Right rear door control unit | 43L |
| N72/1 | Upper control panel control unit | 30L |
| N80 | Steering column module control unit | 23L |
| N80 | Steering column module control unit | 34L |
| X115/5 | Front center console USB connector | 24L |
