Remove/Install Parktronic Warning Buzzer - AR54.65-P-0023FR
Model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear shelf. | AR68.30-P-4581FR | |

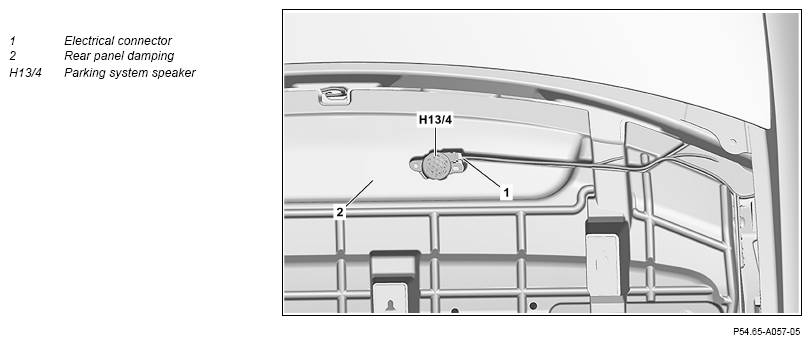

| 2 | Unclip parking system speaker (H13/4) from rear panel damping (2) and pull out until the electrical connector (1) is accessible. | Fig 1 | |
| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove parking system speaker (H13/4). | ||
| 5 | Install in the reverse order. |
