Remove/Install Augmented Reality Camera - AR54.30-P-0004FR
Model 257
as of model year 2021
with code 21U (Video recording function (Dashcam))
Model 257
as of model year 2021
with code U19 (Augmented reality video)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

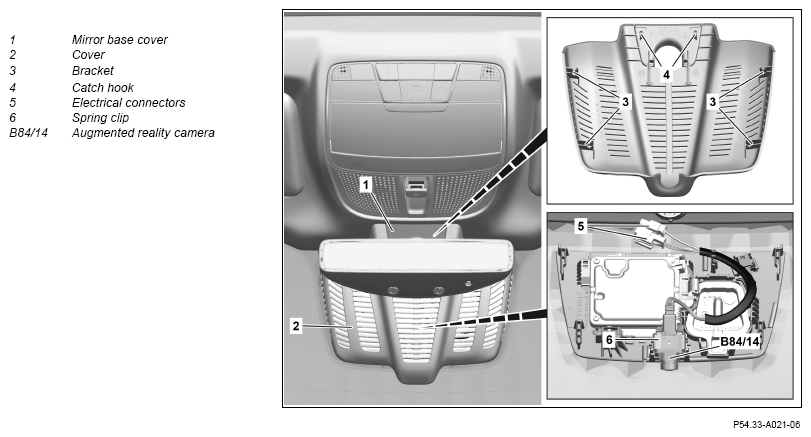

| 2 | Release catch hooks (4) and remove mirror base cover (1). | Fig 1 | |
| 3 | Unclip cover (2) from holders (3) and remove. | Fig 1 | |
| 4 | Release electrical connections (5) and disconnect. | ||
| 5 | Remove spring clip (6) and remove augmented reality camera (B84/14). | Otherwise, soiling could lead to an augmented reality camera (B84/14) malfunction. |
|
| 6 | Install in the reverse order. | ||
| 7.1 | Perform commissioning of augmented reality camera (B84/14). | If the augmented reality camera (B84/14) was replaced. | |
| AD00.00-P-2000-06FR | |||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 7.2 | Calibrate augmented reality camera (B84/14). | If the head unit (A26/17) has been replaced or if the camera position has been changed (e.g. lens replacement, removal of augmented reality camera (B84/14)). | |
| AD00.00-P-2000-06FR | |||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B |
