Remove/Install Rear Axle RPM Sensor - AR42.30-P-0716FR
Model 257, 290

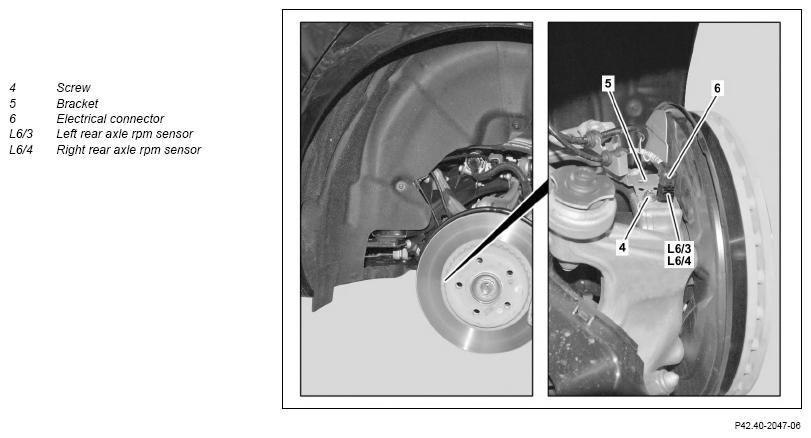

Shown on model 257 on left side of the vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-P-1006A | |
| 2 | Release and disconnect electrical connector (6). | ||
| 3 | Unscrew bolt (4). | *BA42.30-P-1001-02K | |
| 4 | Remove holder (5) from rear axle rotational speed sensor (L6/3, L6/4) and hang to one side. | ||
| 5 | Remove rear axle rotational speed sensor (L6/3, L6/4) from wheel carrier. | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out fault memory using vehicle diagnosis system; delete fault memory if necessary. | ||
| AD00.00-P-2000-06FR |
REAR AXLE RPM SENSOR
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA42.30-P-1001-02K | Bolt, rpm sensor to wheel carrier | Nm | 8 | 8 |
