Remove/Install Rear Axle Brake Caliper Support - AR42.10-P-0221FR
Model 257
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on repairs to Brake system | AH42.00-P-0003-01A | |
| Notice | Notes on handling, transport and storage of composite Brake disks | AH42.10-P-9406-12LF | |
| Remove | |||
| 1 | Remove rear axle Brake pads | AR42.10-P-1710FR | |

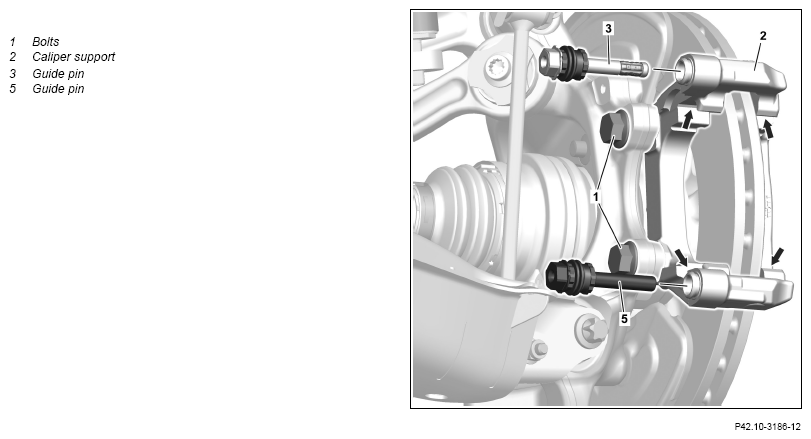

| 2 | Unscrew bolts (1) and remove Brake caliper support (2) | ||
| Check | |||
| 3 | Check Brake caliper support (2) for damage | When reinstalling Brake caliper support (2). If a problem arises ↓ Replace Brake caliper support (2). |
|
| 4 | Check guide pins (3, 5) for damage and unobstructed movement | When reinstalling Brake caliper support (2). If a problem arises ↓ Replace Brake caliper support (2). |
|
| Install | |||
| 5 | Clean contact surfaces (arrows) on Brake caliper support (2) | When reinstalling Brake caliper support (2). | |
Do not use sharp-edged or pointed objects. Otherwise, the Brake caliper support (2) will be damaged. |
|||
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| 6 | Position Brake caliper support (2) and tighten bolts (1) | *BA42.10-P-1001-12W | |
| 7 | Install brakepads on rear axle | AR42.10-P-1710FR |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 257 | ||
|---|---|---|---|---|
| BA42.10-P-1001-12W | Bolt, Brake caliper/ Brake caliper support to wheel carrier | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 45 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
