Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFO

Model 118.351/651

with code M016 (Uprated engine)

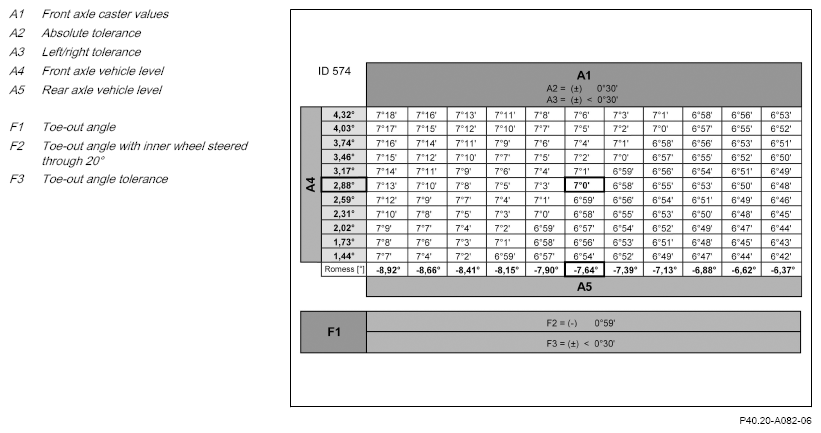

G16063538

Courtesy of MERCEDES-BENZ USA

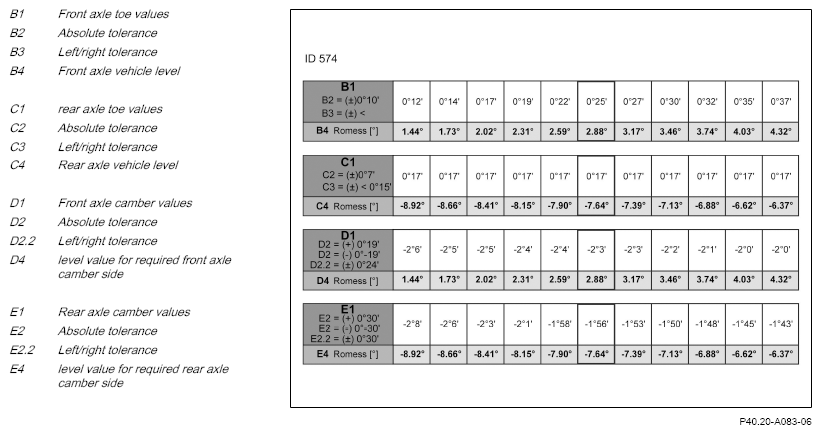

G16063539

Courtesy of MERCEDES-BENZ USA
