Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFN

Model 118.353/354/653/654

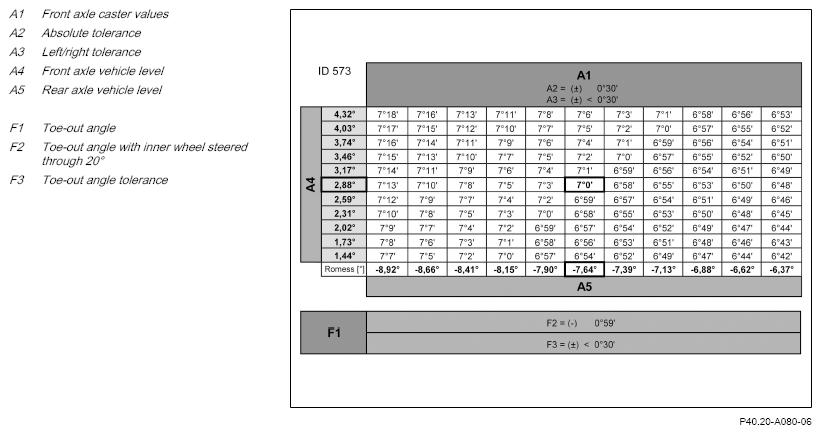

G16063536

Courtesy of MERCEDES-BENZ USA

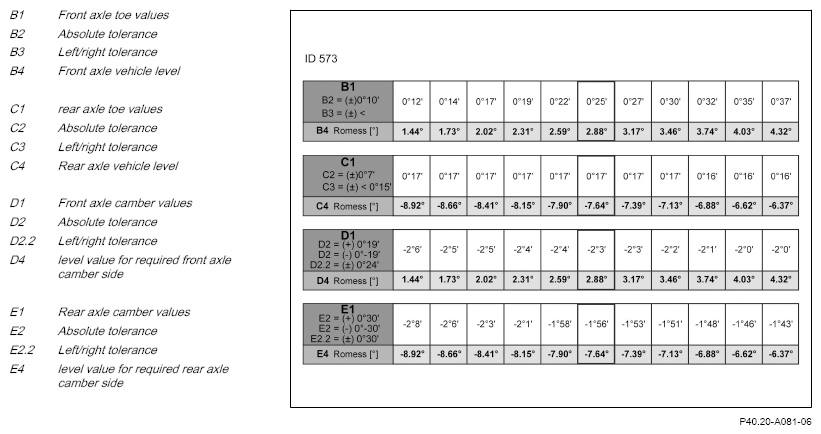

G16063537

Courtesy of MERCEDES-BENZ USA
