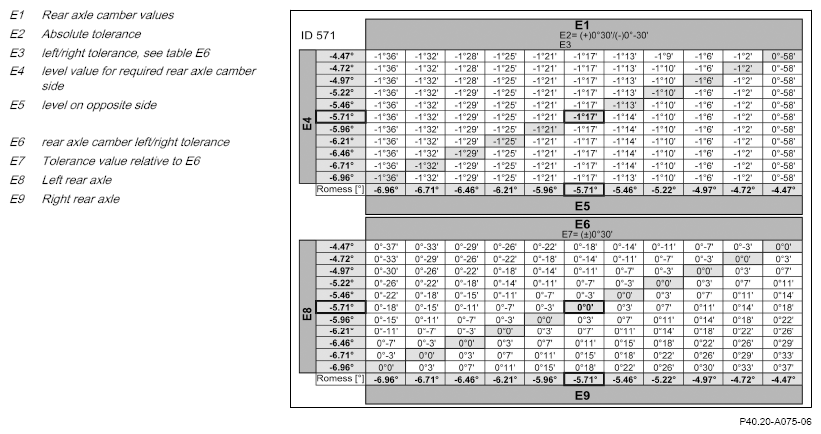

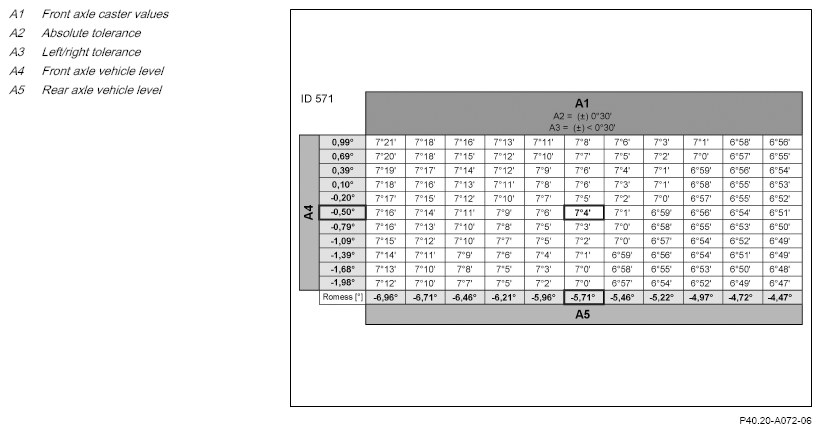

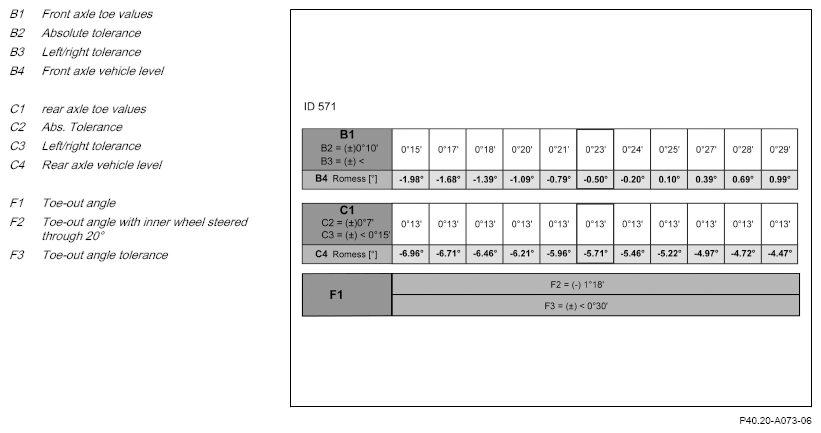

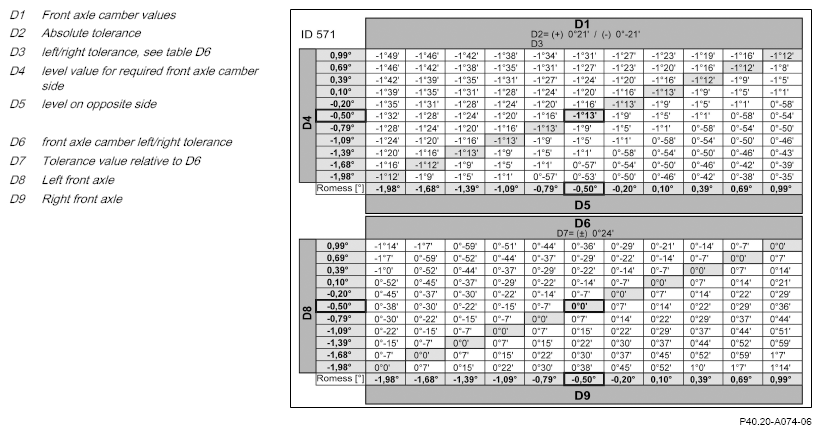

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFL

Model 118.3 (except 118.351/353/354), 118.6 (except 118.651/653/654)

with code 459 (Steel suspension with adjustable damping)

with code U55 (Multi-link axle)

except code 485 (Comfort suspension)

except code 677 (AVANTGARDE/standard suspension)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
