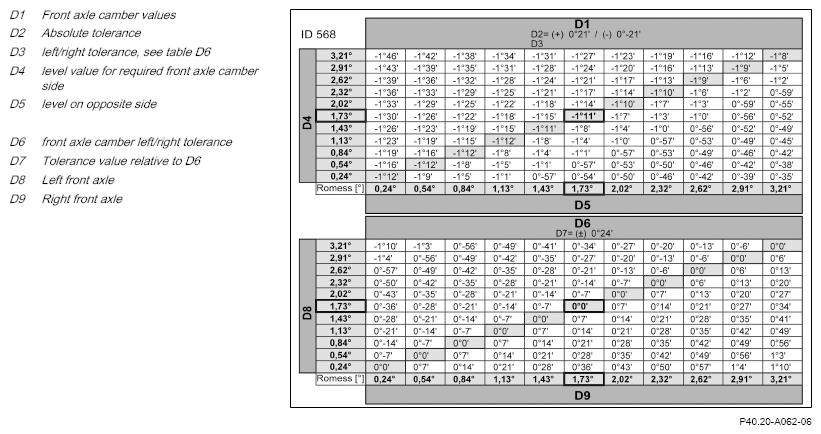

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFI

Model 118.3 (except 118.351/353/354)

with code 485 (Comfort suspension)

with code U55 (Multi-link axle)

except code 459 (Steel suspension with adjustable damping)

except code 677 (AVANTGARDE/standard suspension)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
