Side Longitudinal Member Paneling Complete Replacement - Ar63.30-P-1041MFA
Model 118.3/6
Model 177.0/1/9
Model 247
MODIFICATION NOTES
| 27.03.2019 | Teroson MS 222 replaced by body 2-component adhesive parts kit. | Step 5 |

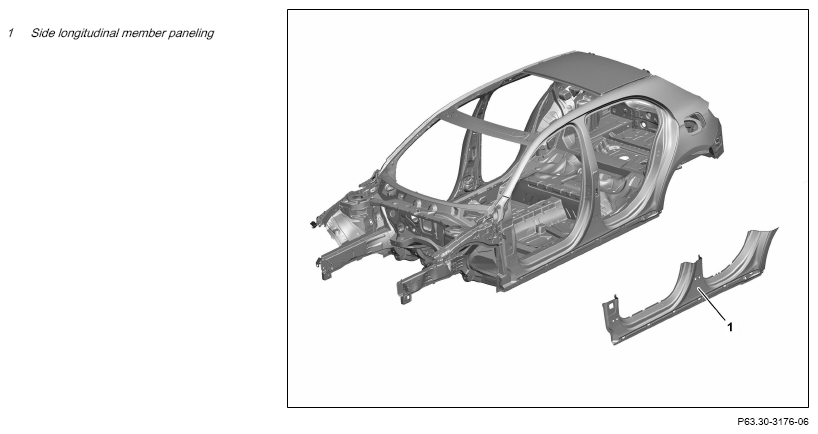

Shown On Model 177.0
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| Notes on acoustic foam and structural foam in the vehicle | AH60.00-P-0039-01MFA | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blanket. | ||
| 3 | Remove side longitudinal member paneling (1). | Model 118.3/6Model 177.0/1/9 Model 247.0 | AR63.30-P-1041-01MFA |
| Model 247.6/7 | AR63.30-P-1041-01MFX | ||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| 4 | Prepare side longitudinal member paneling (1). | Model 118.3/6Model 177.0/1/9 Model 247.0 |
AR63.30-P-1041-02MFA |
| Model 247.6/7 | AR63.30-P-1041-02MFX | ||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| 5 | Install side longitudinal member paneling (1). | Model 118.3/6Model 177.0/1/9 | AR63.30-P-1041-03MFA |
| Model 247.0 | |||
| Model 247.6/7 | AR63.30-P-1041-03MFX | ||
| Process filler on body | AR60.00-P-0031-01LWG | ||
| White sealing compound, 310 ml, DBL 6069.20 | *BR00.45-Z-1003-01A | ||
| Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1035-13A | ||
| Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1043-13A | ||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Basic body filler | *BR00.45-Z-1057-07A | ||
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| 6 | Clean weld joints and sheet metal flange. | ||
| 7 | Remove spark protection blankets. | ||
| 8 | Clean repair area. | ||
| 9 | Prime repair areas with a primer filler. | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
https://xentry.daimler.com |
|||
| 10 | Seal seam after repair. | AR97.10-P-4000MFA | |
| 11 | Paint repair areas and adjacent surfaces. | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| 12 | Supplement cavity preservation. | AR97.20-P-1500MFA | |
| 13 | Reinstall detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1043-13A | Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) | A 000 991 82 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1057-07A | Basic body filler | A 012 989 29 71 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
