Rear Lamp Unit Mount Preparation - Ar63.50-P-0004-02MFC
Model 118
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.
The superordinate service document as well as the safety information in the service document must be observed.

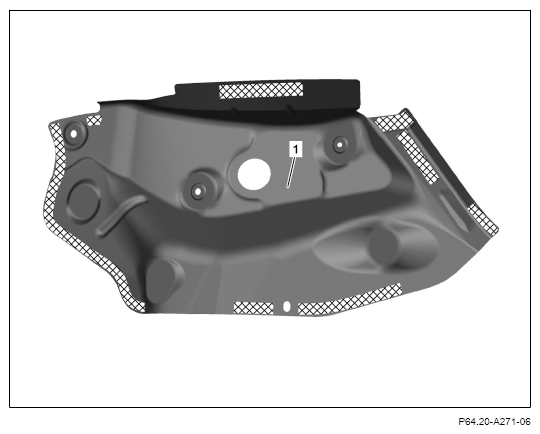

- Grind mating surfaces on lamp unit mount (1) down to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
- Apply zinc dust paint to insides of spot weld flanges onto connecting flanges that are no longer accessible after installing side roof paneling.
