Rear Lamp Unit Mount Install - Ar63.50-P-0004-03MFC
Model 118
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1017-01NA | Outer tail lamp to side wall | Dimension "O" | mm | 1, 5 (±0, 5) | 1, 5 (±0, 5) |
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1018-01NA | Outer tail lamp to bumper at rear | Dimension "P" | mm | 1, 5 (+1) | 1, 5 (+1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1019-01NA | Outside of taillamp to inside of taillamp | Dimension "Q" | mm | 3, 5 (-0.5/+1) | 3, 5 (-0.5/+1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
The following operation steps are shown on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.
The superordinate service document as well as the safety information in the service document must be observed.

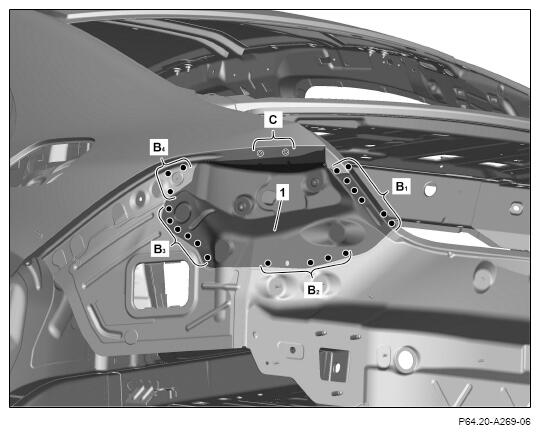

- Install lamp unit mount (1) and fit.
- Install lamp unit.
- Check gaps using
feeler gauge and adjust.
- Fix lamp unit mount (1) in place.
- Remove lamp unit.
- Lamp unit mount (1)
(areas B1 , B2 , B3 and B4 ).
- Lamp unit mount (1)
(area C).
- Clean weld joints.
