Crossbar Under Rear Seat Installation - Ar63.40-P-1191-04MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

The next steps are shown on the left side of the vehicle on model 177.0. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

1. Install front seat crossbar at the rear (4) and fit.

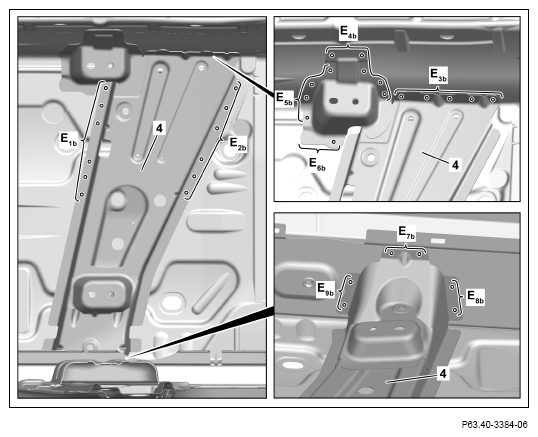

2. Drill rivet holes on the front seat crossbar at the rear (4) with a diameter of 6.7 mm (areas E_1b , E_2b , E_3b , E_4b , E_5b , E_6b , E_7b , E_8b , E_9b ).
3. Remove front seat crossbar at the rear (4).
4. Deburr rivet holes on the front seat crossbar at the rear (4) and on the body on both sides (areas E_1b , E_2b , E_3b , E_4b , E_5b , E_6b , E_7b , E_8b , E_9b ).
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

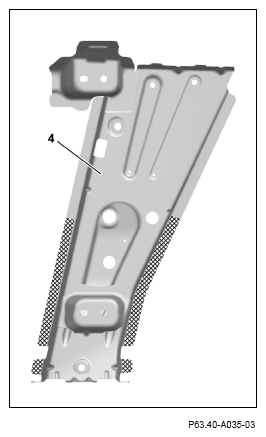

7. Grind mating surfaces on the front seat crossbar at the rear (4) and on the main floor down to bare metal in the cross-hatched areas.



   Sand down spot weld flanges to bare metal on both sides.

8. Remove grinding dust.
9. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

10. Install front seat crossbar at the rear (4).

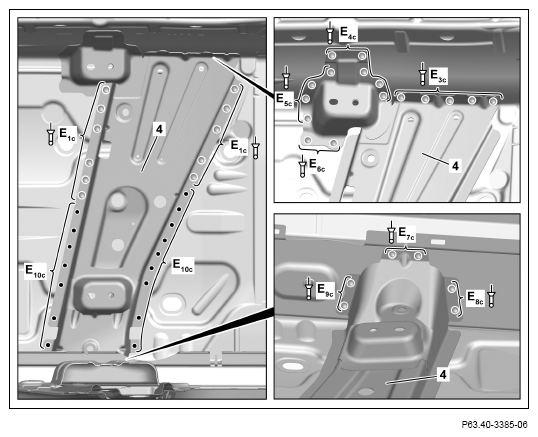

11. Rivet front seat crossbar at the rear (4) with rivets with a diameter of 6.5 x 12.5 (areas E_1c , E_3c , E_4c , E_5c , E_6c , E_7c , E_8c , E_9c ).
12. Front seat crossbar at the rear (4) (areas E_10c ).

    Courtesy of MERCEDES-BENZ USA
