Inner B-Pillar Installation - Ar63.20-P-1350-03MFB

Model 118.3/6

Fig 1: Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ USA

The next steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Install inner B-pillar (1) and B-pillar reinforcement (2) with the side portal frame and portal straightener and fix in place.
2. Drill rivet holes with Ø 6.7 mm (areas A, B).
3. Drill rivet holes with a diameter of 6.7 mm (area C).
4. Remove inner B-pillar (1) and B-pillar reinforcement (2 with the side portal frame and the portal straightener.

   Courtesy of MERCEDES-BENZ USA

5. Deburr rivet holes at B-pillar reinforcement (2) and inner B-pillar (1) at body on both sides.
6. Remove drill chips.
7. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

8. Apply sealant to the foam parts in the cross-hatched areas (area E).
9. Apply 2-component adhesive to body in cross-hatched areas (areas D₁ , D₂ ).



   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

10. Install inner B-pillar (1) and B-pillar reinforcement (2) with the

    side portal frame and portal straightener and fix in place.

11. Rivet inner B-pillar (1) with rivet Ø 6.5x12.5 mm (areas H, I).
12. Inner B-pillar (1) (areas F, G, J).
13. Remove side portal frame and portal straightener.

    Courtesy of MERCEDES-BENZ USA

14. Inner B-pillar (1) (areas K, L).

    Inert gas weld in intervals and allow welding area to cool down in between.

    Heat distortion is thus reduced.

15. Surface-grind inert gas welds at inner B-pillar (1) (areas K, L).



    Grind down flat on contact surfaces on B-pillar paneling and beaded area only.

16. Clean weld joints no longer accessible after installing B-pillar reinforcement and coat with zinc dust paint.

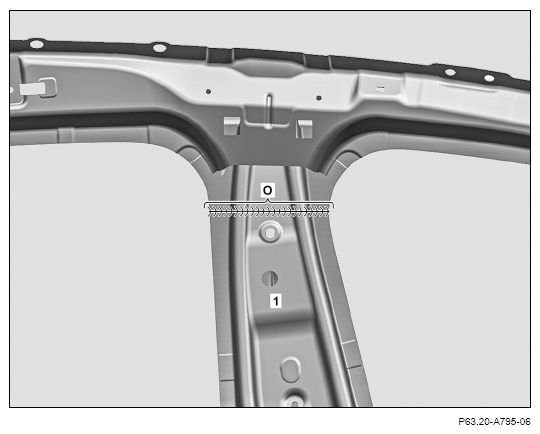

17. Inner B-pillar (1) (area O).

    Inert gas weld in intervals and allow welding area to cool down in between.

    Heat distortion is thus reduced.

18. Surface-grind inert gas weld at inner B-pillar (1) (area O).



    Grind down flat on contact surfaces on B-pillar paneling and beaded area only.

19. Clean weld joints no longer accessible after installing B-pillar reinforcement and coat with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

20. Rivet B-pillar reinforcement (2) with rivet Ø 6.5x12.5 mm (area N).
21. 21 B-pillar reinforcement (2) (areas M₁ , M₂ ).
22. Remove grinding dust.

Courtesy of MERCEDES-BENZ USA
