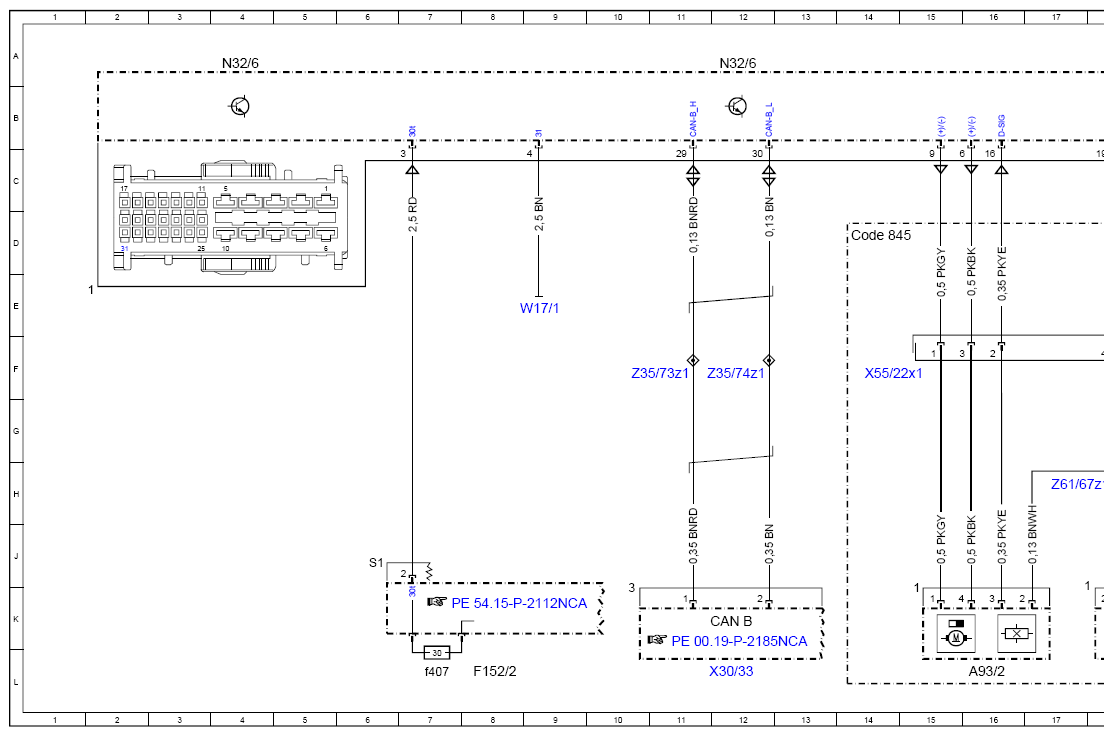

Wiring Diagram For Right Rear Seat Control Unit - PE91.29-P-2119-97NCB
Model 167.9
with code 226 (7-seater with 3rd seat row)
Control unit N32/6
Model 167
with code 224 (Individual rear seats)
Control unit N32/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 112L |
| A93/2 | Right 3rd seat row backrest release unit | 16L |
| CAN B | Interior CAN | 12K |
| Code 489 | AIRMATIC | 38E |
| Code 845 | Electric folding 3rd seat row | 14D |
| F152/2 | Rear fuse and relay module | 8L |
| F152/2 | Rear fuse and relay module | 31L |
| F152/2f407 | Fuse 407 | 7L |
| F152/2f471 | Fuse 471 | 30L |
| M18/14 | Right 2nd seat row head restraint height adjustment motor | 50L |

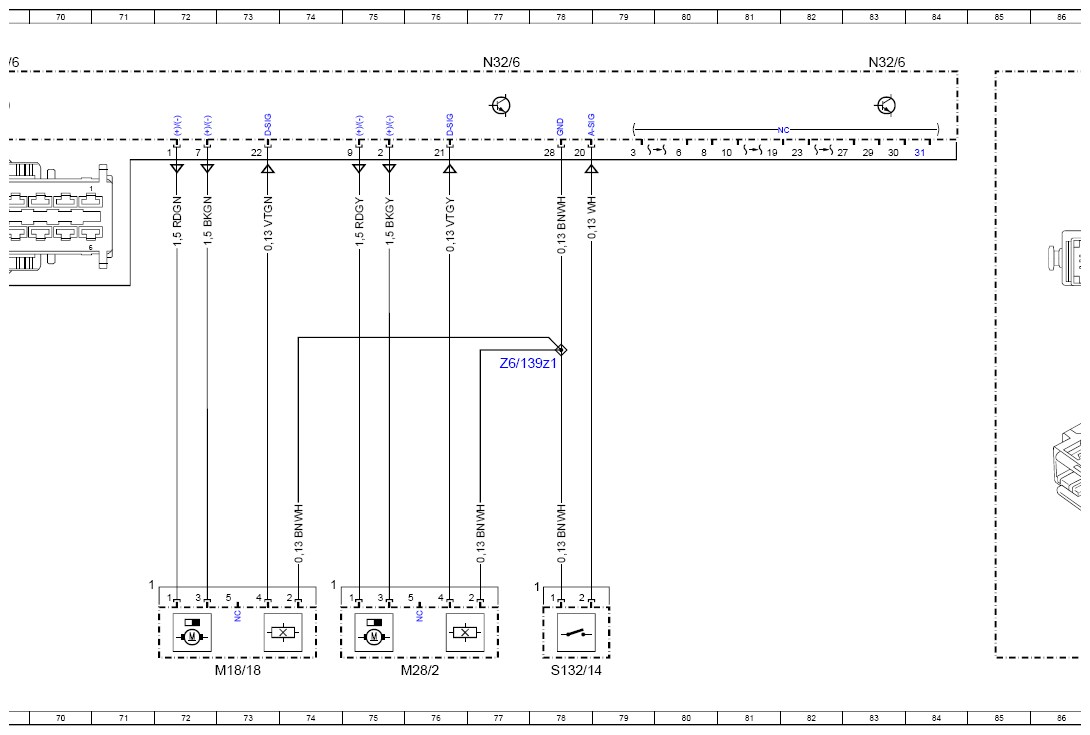

| M18/18 | Right rear fore/aft adjustment seat adjustment motor | 73L |

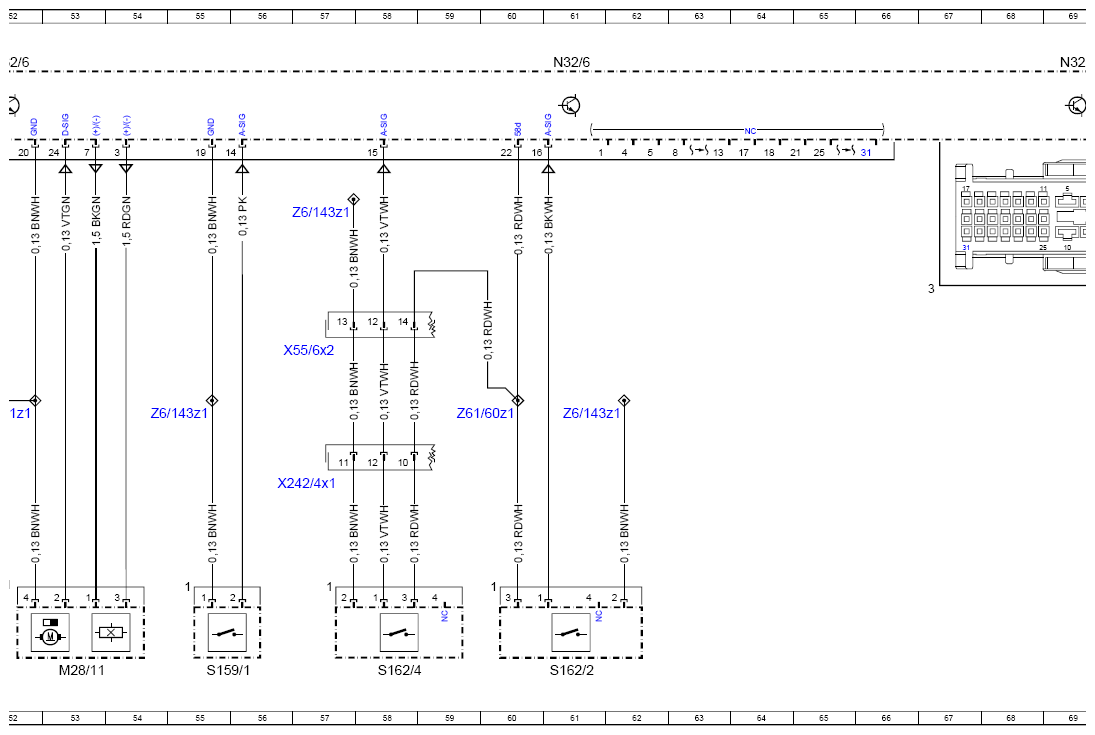

| M28/11 | Right rear seat backrest inclination adjustment motor | 53L |
| M28/2 | Right rear seat height seat adjustment motor | 76L |

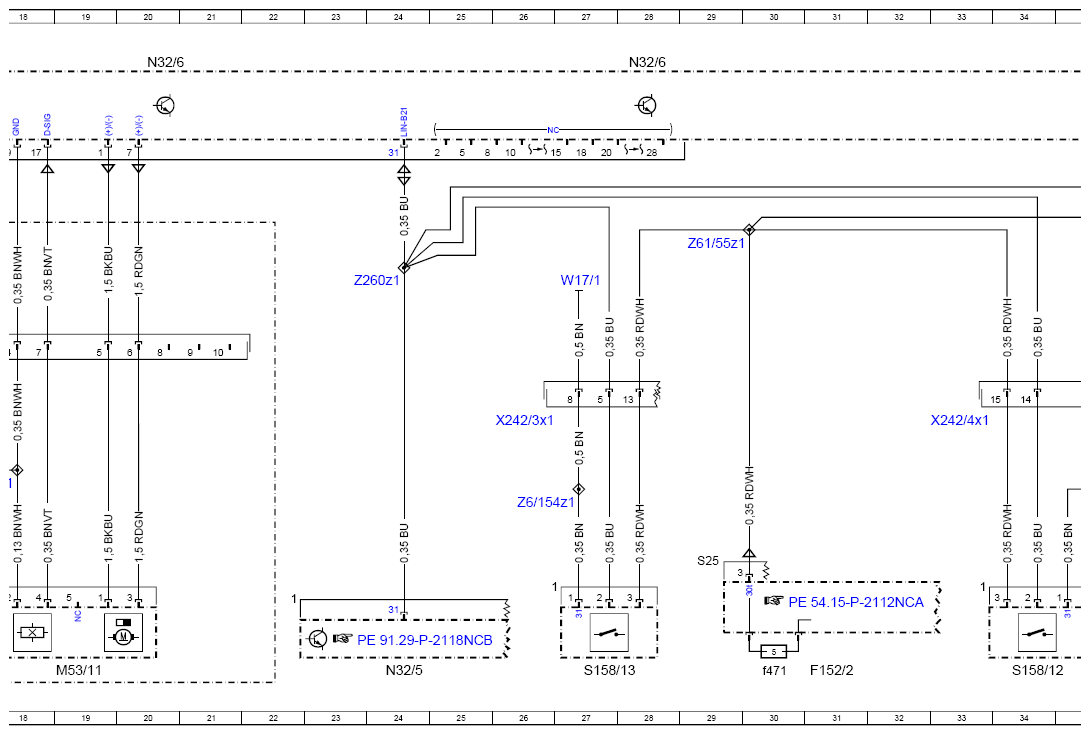

| M53/11 | Right 3rd seat row folding backrest motor | 19L |
| N32/5 | Left rear seat control unit | 24L |

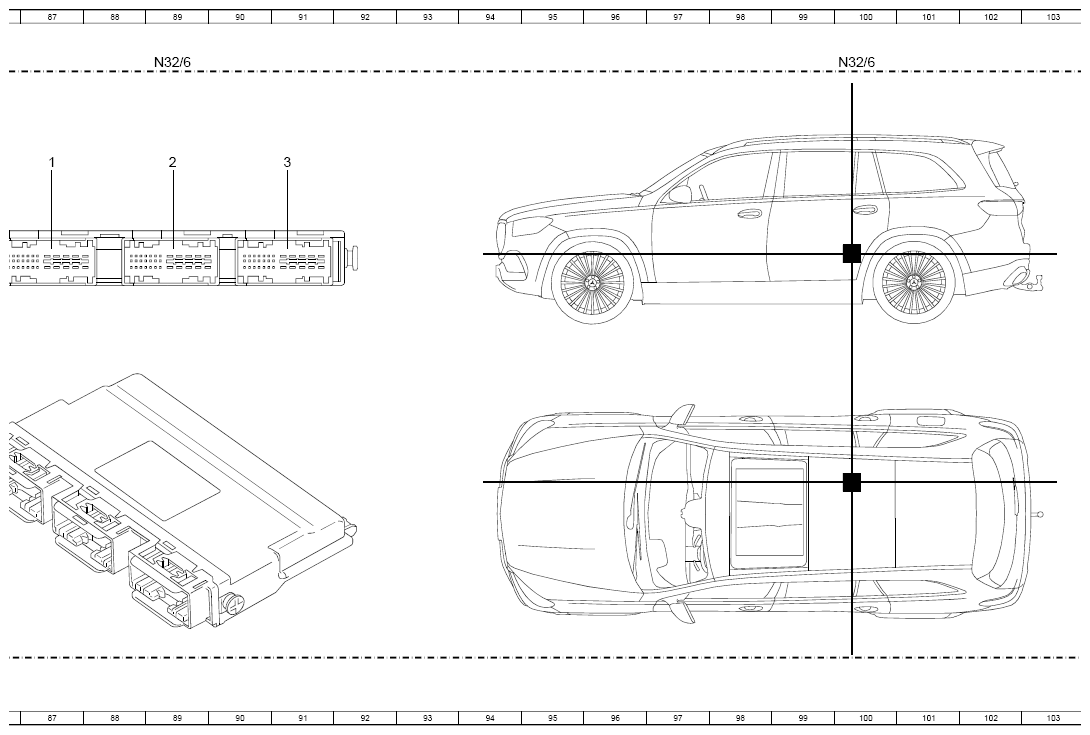

| N32/6 | Right rear seat control unit | 4A |
| N32/6 | Right rear seat control unit | 89A |
| N32/6 | Right rear seat control unit | 100A |
| N32/6 | Right rear seat control unit | 12A |
| N32/6 | Right rear seat control unit | 20A |
| N32/6 | Right rear seat control unit | 28A |
| N32/6 | Right rear seat control unit | 52A |
| N32/6 | Right rear seat control unit | 61A |
| N32/6 | Right rear seat control unit | 69A |
| N32/6 | Right rear seat control unit | 77A |
| N32/6 | Right rear seat control unit | 83A |
| N32/6 | Right rear seat control unit | 36A |
| N32/6 | Right rear seat control unit | 45A |

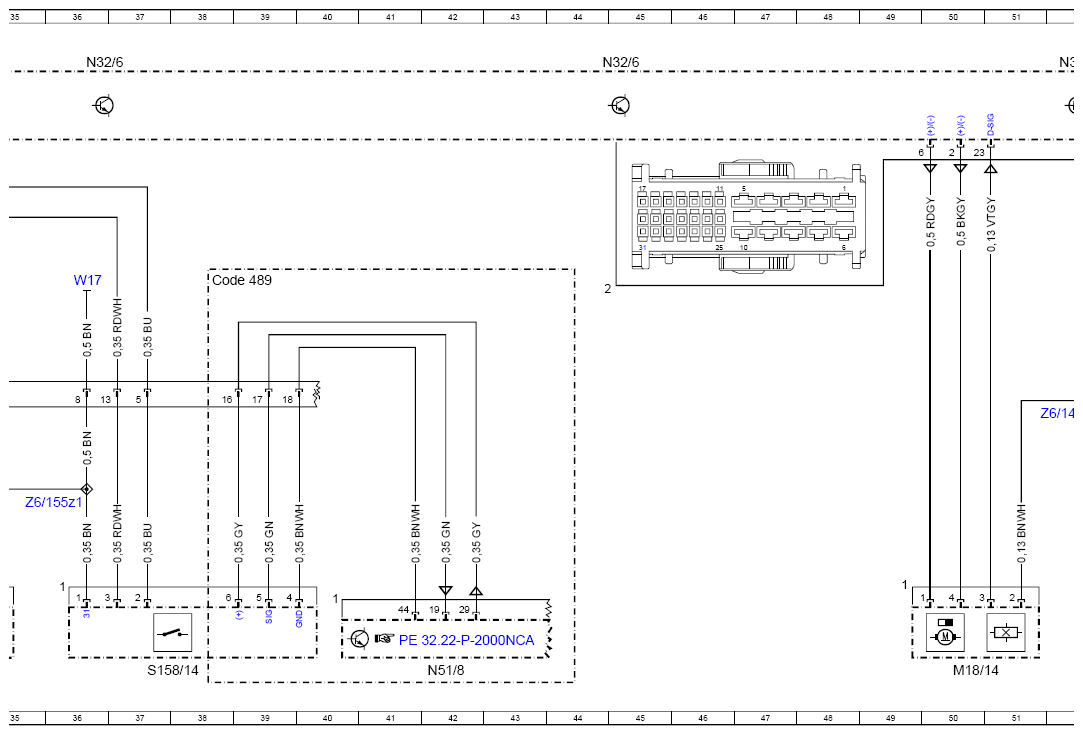

| N51/8 | Active suspension and damping system control unit | 42L |
| S132/14 | Right 2nd seat row emergency release switch | 78L |
| S158/12 | Right 2nd seat row seats switch group | 34L |
| S158/13 | Seats switch group (left load compartment) | 27L |
| S158/14 | Seats switch group (right load compartment) | 37L |
| S159/1 | Inner 2nd seat row seat release switch | 55L |
| S162/2 | Right 2nd seat row easy entry and exit feature button | 61L |
| S162/4 | Right 3rd seat row armrest easy entry and exit feature button | 58L |
| W17 | Right rear seat ground point | 36E |
| W17/1 | Left rear seat ground point | 9E |
| W17/1 | Left rear seat ground point | 27E |
| X242/3x1 | Left load compartment electrical connector | 26G |
| X242/4x1 | Right load compartment electrical connector | 57H |
| X242/4x1 | Right load compartment electrical connector | 33G |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
| X55/22x1 | Right 3rd seat row connector block | 14F |
| X55/6x2 | Right rear seat adjustment unit connector block | 57F |
| Z260z1 | Rear seats LIN bus end sleeve | 24E |
| Z35/73z1 | Interior CAN (CAN B) High connector sleeve | 11F |
| Z35/74z1 | Interior CAN (CAN B) low connector sleeve | 12F |
| Z6/139z1 | Right 2nd seat row seat cushion adjustment connector sleeve | 77F |
| Z6/141z1 | Right 2nd seat row backrest adjustment connector sleeve | 52G |
| Z6/143z1 | Right 2nd seat row switch end sleeve | 55G |
| Z6/143z1 | Right 2nd seat row switch end sleeve | 57D |
| Z6/143z1 | Right 2nd seat row switch end sleeve | 61G |
| Z6/154z1 | Left engine ground connection connector sleeve | 26H |
| Z6/155z1 | Ground connection connector sleeve | 36H |
| Z61/55z1 | 3rd seat row supply end sleeve | 29D |
| Z61/60z1 | Right folding seat backrest switch lighting end sleeve | 60G |
| Z61/67z1 | Hall sensor ground connection connector sleeve | 17H |
