Remove/Install Cover On Rear Seat Backrest - AR91.18-P-1872MEM

Model 167.9

With Code M036 (Maybach Version)

Shown on left backrest

Courtesy of MERCEDES-BENZ USA

Shown on left backrest

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove seat backrest.		AR91.12-P-1713MEM
2	Remove head restraint.		AR91.16-P-1770MEM
3	Remove head restraint guides.		AR91.16-P-1776ME
4	Remove seat ventilation motors from seat backrest.		AR91.30-P-1906MEM
5	Release and disconnect electrical connectors (1) and unclip from seat backrest frame.

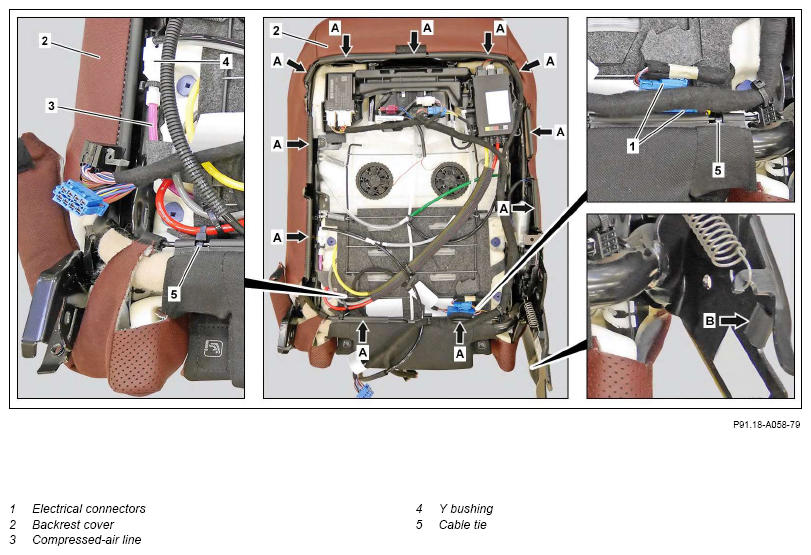

6	Unhook seat backrest cover (2) from seat backrest frame (arrows A).	Dismantling tool	Fig 1
7	Unhook elastic band at opening at seat backrest frame (arrow B).
8	Release compressed-air line (3) from Y bushing (4) and remove.
9	Cut through cable ties (5).	Replace cable ties (5).
10	Remove seat backrest cover (2) together with seat backrest padding (6) from seat backrest frame.
11	Pull seat backrest cover (2) over seat backrest padding (6).

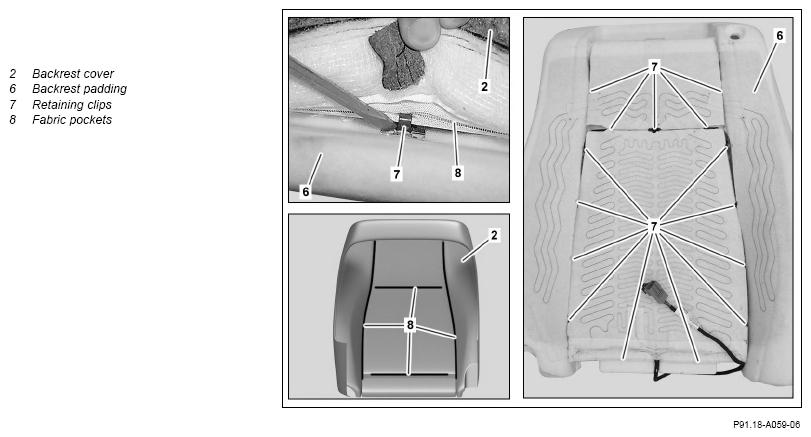

12	Unhook staple wires of seat backrest cover (2) from retaining clips (7).	Dismantling tool	Fig 2
13	Remove seat backrest cover (2) from seat backrest padding (6).	Ensure that the seat backrest cover (2) is correctly seated on the seat backrest padding (6).
14	Pull staple wires out of fabric pockets (8) of seat backrest cover (2).	When replacing the seat backrest cover (2). Insert staple wires into fabric pockets (8) of new seat backrest cover (2). Ensure that the staple wires are correctly seated in the fabric pockets (8).
15	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (205 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA
